ThinkEdge SE450Datasheet

Updated
31 Jan 2022
Form Number
DS0135
PDF size
2 pages, 234 KB

Powerful Edge AI server

Purpose Built for AI at the Edge

Today, remote locations are forced to make a choice between underpowered IOT gateways and PCs, or overpowered and non-rugged data center servers. Now they have an option—a right-sized compact edge server designed specifically to meet the needs of remote locations, as well as the right processing power to run AI workloads.

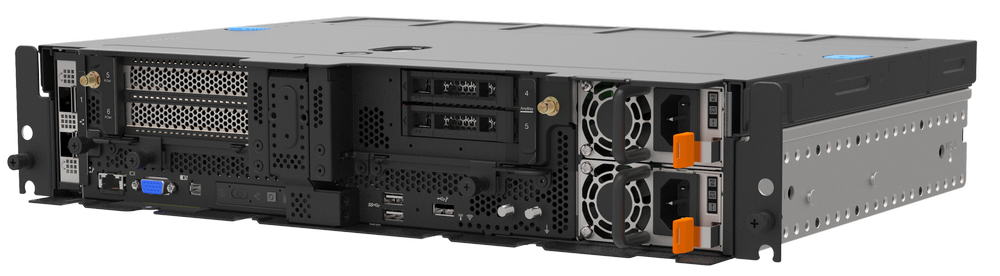

The Lenovo ThinkEdge SE450 is a 1-socket 3rd Gen Intel® Xeon® Platinum processor-based server, with a 2U height and short depth case that can go almost anywhere. It can be hung on a wall, stacked on a shelf, or mounted in a rack. This rugged edge server can handle continuous operating temperatures from 5°C and 45°C; and some configurations are designed to meet NEBS Level-3 and ETSI requirements for 96 hours operating excursions from -5°C and 55°C as well as tolerance to locations with high-dust and vibration.

The ThinkEdge SE450 is designed to virtualize traditional IT applications as well as new transformative AI systems, providing the processing power, storage, accelerator, and networking technologies required for today’s edge workloads. Lenovo’s innovation makes the ThinkEdge SE450 one of the most powerful, yet quiet servers on the market, allowing it to be deployed next to end users without disturbing the workplace.

Secure, Connected and Reliable

At Lenovo, security begins with design and continues through supply chain, delivery, and the full lifecycle of the system.

Edge locations command special attention for security of the data and device itself. That’s why the ThinkEdge SE450 is delivered with ThinkShield capabilities, loaded with a secure BIOS and optional tamper detection protection for extra security at the edge.

The ThinkEdge SE450 provides numerous connectivity options with wired and secure wireless Wi-Fi capabilities. Reliability features such as wireless failover, redundant boot and data drives, high temperature components and support for hyperconverged clustering keep critical Edge workloads running.

Agility and Remote Manageability

It is costly and time consuming to send IT staff to remote sites. The ThinkEdge SE450 features XClarity Controller, an enterprise-grade embedded management engine. It also supports XClarity Administrator, which enables IT managers to efficiently maintain server, storage, and networking infrastructure and accelerate services provisioning.

In addition to a dedicated wired networking management port, the ThinkEdge SE450 can deliver management over a secure wireless connection so IT managers can perform updates, management tasks, and access sites even when the primary Ethernet connection is down.

Specifications

Form Factor 2U rack server 300mm (11.8in) depth with 4x FHHL adapters; or
2U rack server 360mm (14.2in) depth with 4x FHFL adapters
Processor 1x 3rd Gen Intel® Xeon® Platinum processor, up to 36 cores, up to 225W TDP
Drive Bays Up to 6x 2.5-inch 7mm drives; Up to 6x NVMe drives supported; 2x M.2 boot drives (RAID 1)
Memory 10x DDR4 memory slots; Maximum 1TB using 8x 128GB 3DS RDIMMs; Supports up to 2x Intel® Optane™ Persistent Memory 200 Series modules (PMem)
Expansion Slots Up to 4x PCIe 4.0 slots, 1x OCP 3.0 slot
GPUs Up to 4x single-width GPUs or 2x double-width GPUs
Network Interface LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Ports Front: 1x Power Button, 1x system locator, health with LED, 1x VGA, 2x USB 3.1, 1x Serial Port (optional), 1x RJ-45 1Gb for dedicated management, 1x system locator LED; Optional Wi-Fi (management)
HBA/RAID Support SW RAID standard; optional HW RAID with or without cache, or SAS HBAs
Power Dual redundant power supplies AC (up to 1100W Platinum) or Dual redundant power supplies -48V DC 1100W
Systems Management Lenovo XClarity Controller
OS Support Microsoft, Red Hat,Ubuntu, CentOS, VMware. Visit lenovopress.com/osig for details.
Limited Warranty 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

About Lenovo

Lenovo (HKSE: 992) (ADR: LNVGY) is a US$60 billion Fortune Global 500 company, with 63,000 employees and operating in 180 markets around the world. Focused on a bold vision to deliver smarter technology for all, we are developing world-changing technologies that create a more inclusive, trustworthy and sustainable digital society.

For More Information

To learn more about the ThinkEdge SE450, contact your Lenovo representative or Business Partner, or visit lenovo.com/systems/servers.
