Lenovo ThinkSystem ST45 V3 Server

The Lenovo ThinkSystem ST45 V3 single-socket tower server is a compact-sized and affordable 1S entry tower design optimized for SOHO (Small Office/Home Office), educational institutions and retail office. The server supports one AMD EPYC 4004 Series processor and up to 64 GB of TruDDR5 5200MHz memory.

Target workloads such as: File server, Mail server, Print server, FTP server, Business Application, Near-side Data Backup

The following figure shows the ThinkSystem ST45 V3.

Figure 1. Lenovo ThinkSystem ST45 V3

360° View Full 3D Tour

The ThinkSystem ST45 V3 server is an office-friendly tower server that has been optimized to provide enterprise-class features to small businesses, retail, educational institutions and branch offices.

Scalability and performance

The ST45 V3 offers numerous features to boost performance, improve scalability, and reduce costs:

• Improved single-socket processor performance:
  • AMD EPYC 4004 CPU
  • Up to 12 cores and core speeds up to 3.8 GHz
• Up to two 5200 MHz TruDDR5 UDIMMs provide speed and capacity of up to 64 GB.
• Two PCIe slots for I/O expansion, one PCIe x16 and one PCIe x1.
• Support for NVMe M.2 drive for OS boot operations.
• Support for three 3.5-inch non-hot-swap (NHS) drive bays and one 2.5-inch drive, or,  support for two 3.5-inch non-hot-swap (NHS) drive bays, one 2.5-inch drive and one ODD drive. Providing flexible internal storage capacity.
• The use of SSDs instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance.

Availability and serviceability

The ST45 V3 provides many features to simplify serviceability and increase system uptime:

• EPYC 4004 RAS features include on-chip ECC/parity, on-package link CRC, PCIe LCRC, PCIe ECRC, and PCIe uncorrected error detection. Correction of single-bit memory errors and PCIe correctable errors support is limited to the hardware layer and offer no support for WHEA (Windows Hardware Error Architecture) or EDAC (Error Detection And Correction).
• Designed to run 24 hours a day, 7 days a week.
• The server supports UDIMM memory with ECC protection which provides error correction not available in PC-class "servers" that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
• Tool-less cover removal provides easy access to upgrades and serviceable parts, such as memory and adapter cards.
• A choice of affordable onboard SATA RAID or advanced hardware RAID redundancy offers data protection and greater system uptime.
• The use of SSDs can provide better reliability than the use of traditional HDDs, for greater uptime.
• Power-on Self-Test (POST).
• The Lenovo XClarity Provisioning Manager Lite tool can be used to install an operating system on the server and perform system diagnostics.
• One-year or three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response. Optional service upgrades are available.

Energy efficiency

The ST45 V3 offers the following energy saving features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

• 80 PLUS Platinum-certified power supply (select models) enables greater energy savings while providing flexibility to meet your business needs.
• The ThinkSystem Capacity Planner tool provides information about the power consumption and electric current calculation for the different configurations of servers and other devices, which helps plan deployment of servers and devices in an efficient way.
• Energy star certification.

The ThinkSystem ST45 V3 comparison on the current generation ST50, as summarized in the following table.

The following figure shows the front of the server.

Figure 2. Front view of the ThinkSystem ST45 V3 server

The following figure shows the rear of the server.

Figure 3. Rear view of the ThinkSystem ST45 V3 server

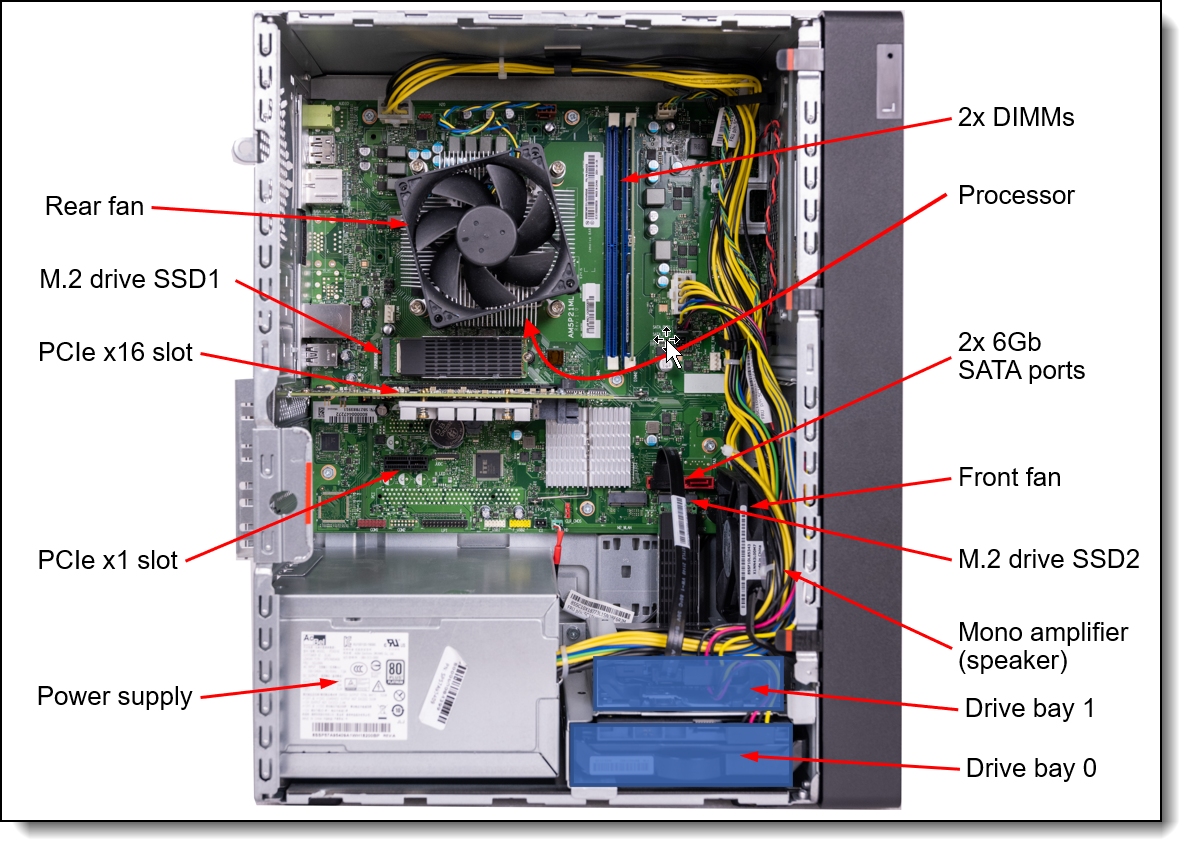

The following figure shows the locations of key components inside the server. The optical drive bay and drive bays 2 and 3 are removed to show the system board. To view the drive bays, see the Internal storage section.

Figure 4. Internal view of the ThinkSystem ST45 V3 server

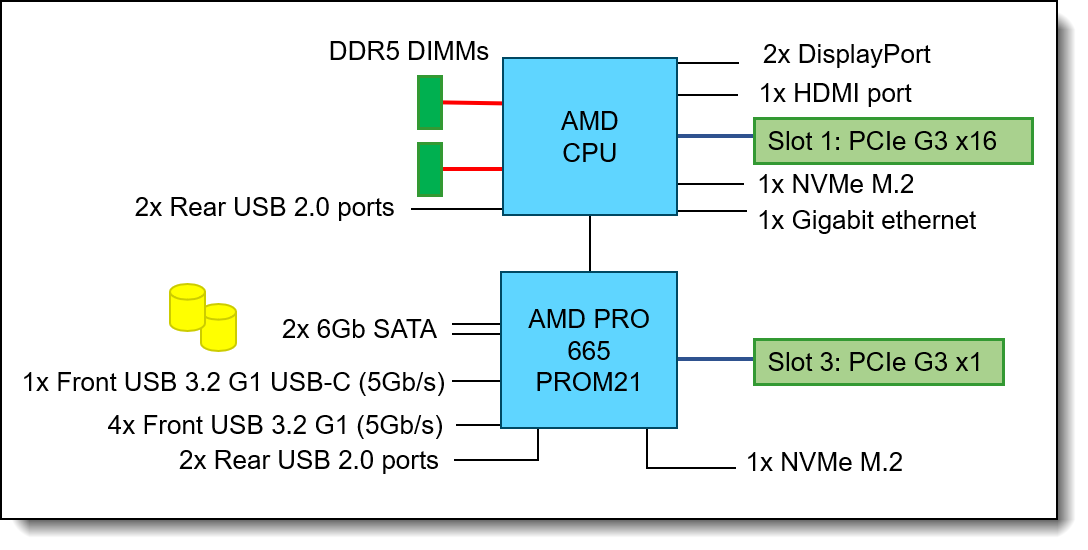

The following figure shows the architectural block diagram of the ST45 V3, showing the major components and their connections.

Figure 5. ST45 V3 system architectural block diagram

The following table lists the standard specifications.

ThinkSystem ST45 V3 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Configure-to-order (CTO) models are used to create models with factory-integrated server customizations. For CTO models, two types of base CTO models are available for the ST45 V3 as listed in the columns in the following table:

• General purpose base CTO models are for general business (non-HPC) and is selectable by choosing General Purpose mode in DCSC.
• AI and HPC base models are intended for Artificial Intelligence (AI) and High Performance Computing (HPC) configurations and solutions are enabled using the AI & HPC Hardware - ThinkSystem Hardware mode in DCSC. These configurations, along with Lenovo EveryScale Solutions, can also be built using System x and Cluster Solutions Configurator (x-config). Tip: Some HPC and AI models are not listed in DCSC and can only be configured in x-config.

Preconfigured server models may also be available for the ST45 V3, however these are region-specific; that is, each region may define their own server models, and not all server models are available in every region.

The following table lists the base CTO models of the ThinkSystem ST45 V3 server.

The following tables list the available models, grouped by region.

• Models for Asia Pacific region
• Models for Brazil
• Models for EMEA region
• Models for Latin American countries (except Brazil)
• Models for USA and Canada

Refer to the Specifications section for information about standard features of the server.

The ST45 V3 supports one AMD EPYC 4004 series processor, up to 12 cores and 65W TDP.

All supported processors have the following characteristics:

• Supports AMD PRO 665 chipset (PROM21)
• Support for ECC memory
  • Two DDR5 memory channels
• PCIe lanes

The following table lists the supported processors.

The ST45 V3 supports Lenovo TruDDR5 memory. TruDDR5 memory uses the highest-quality components sourced from Tier 1 DRAM suppliers and only memory that meets strict requirements is selected. It is compatibility-tested and tuned to maximize performance and reliability.

TruDDR5 memory has a unique signature programmed into the DIMM, which enables ThinkSystem servers to verify whether the memory installed is qualified and supported. From a service and support standpoint, TruDDR5 memory automatically assumes the system's warranty, and service and support provided worldwide.

The processors have 2 memory channels and support 1 DIMM per channel. The ST45 V3 supports 1 or 2 DIMMs. Both DIMMs installed must be identical.

DIMMs installed in the ST45 V3 operate at a speed based on the processor installed.

The following table lists the memory options that are available for the ST45 V3 server.

The following rules apply when selecting the memory configuration:

• The server only supports UDIMMs
• Quantities of 1 or 2 DIMMs are supported
• Both DIMMs must be identical (same part number)
• When installing two DIMMs, install one in each memory channel
• Memory mirroring and memory rank sparing are not supported

The ST45 V3 supports up to three 3.5-inch drives non-hot-swap drives and one 2.5-inch. The system also supports an 9mm slim SATA optical disk drive.

Server comes standard with one empty cage drive for bay 0. All bays 0, 1, 2, 3 support optional drives.

Topics in this section:

• Drive bays
• M.2 drives
• Field upgrades

For information about the optical drive, see the Optical drives section.

Drive bays

The drive bays are as follows:

• Drive bay 0: 3.5-inch HDD or SSD, non-hot-swap (standard with the server)
• Drive bay 1: 2.5-inch SSD, non-hot-swap, optional
• Drive bay 2: 3.5-inch HDD or SSD, non-hot-swap, optional
• Drive bay 3: 3.5-inch HDD or SSD, non-hot-swap, optional

The supported internal drive bays are:

• Option 1: 2x 3.5” + 1x 2.5” + 1x ODD
• Option 2: 3x 3.5” + 1x 2.5” (no ODD)
• 2x NVMe M.2 support

The following image shows location for drive bays option 1 and option 2.

Figure 6. ST45 V3 drive bays (front view)

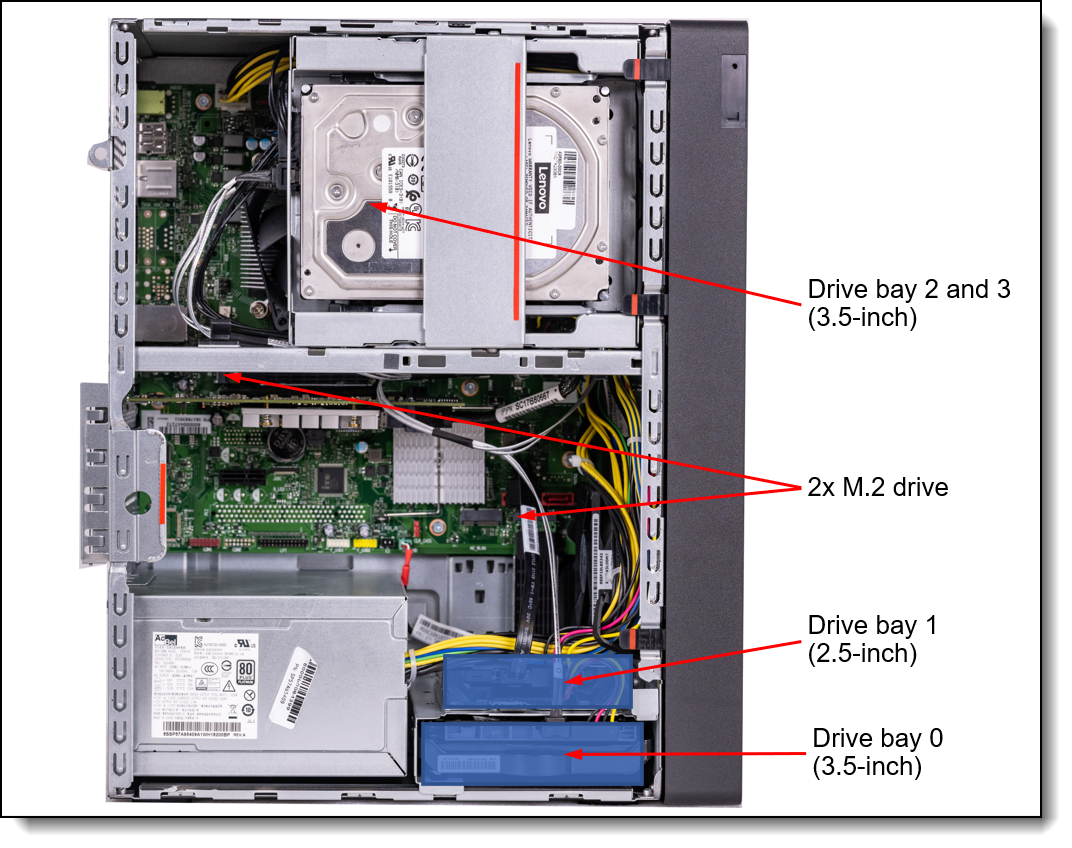

The following figure shows the internals of the server with the drive bays and optical drive installed.

Figure 7. ST45 V3 drive bays (side view)

Drive bays 1, 2 and 3 are optional. For CTO orders, the following table lists the ordering information to configure these bays.

M.2 drives

The ST45 V3 supports two internal NVMe M.2 drives. See the Internal view of the server (link to Figure 4) for the location of the two M.2 drives, SSD1 and SSD2. Ordering information for the SSD2 bracket is listed in the following table.

Configuration requirements:

• For the SSD1 the required screw is derived by the configurator DCSC
• For the SSD2 the required screw and bracket are derived by the configurator DCSC
• Bracket (BMEK) is needed for SSD2 only

Supported M.2 drives are listed in the Internal drive options section.

Field upgrades

The ST45 V3 supports the following upgrades:

• Add drives to a zero drive (drive-less) server
• Add a RAID adapter or HBA to replace the onboard SATA drive controller
• Add drive bays
• Add an optical drive, as described in the Optical drives section

If you are planning to do a field upgrade of a server without drives to add drives that connect to the onboard SATA controller, you will need the power cables from the ThinkSystem ST50 V3/ST45 V3 Internal Drive Cable Kit, 4X97A93517, plus the SATA cables that are included in each drive option.

If you are planning to do a field upgrade to add a RAID adapter or HBA, you will need the cables from ThinkSystem ST50 V3/ST45 V3 Internal Drive Cable Kit, 4X97A93517, The MiniSAS data cable in the kit will replace the SATA data cables to all three drives. Use the power cables if you are upgrading from a server without any drives otherwise use the existing power cables already installed.

The following table lists the ordering information.

The ST45 V3 has 2x onboard SATA ports supporting AHCI (JBOD) mode (for 2x 3.5-inch drives) RAID support on the onboard ports is planned.

Alternatively, advanced RAID support or HBA support is available with the addition of a RAID adapter or HBA as listed in the following table.

For a comparison of the functions of the supported storage adapters, see the ThinkSystem RAID Adapter and HBA Reference:
https://lenovopress.lenovo.com/lp1288-thinksystem-raid-adapter-and-hba-reference

The ST45 V3 supports optionally up to three 3.5-inch non-hot-swap drives and optionally one 2.5-inch non-hot-swap drive.

Each drive option part number includes:

• Tray to mount the drive in the server
• 185mm SATA signal cable to connect the drive (when installed in bay 1 or 2) to the onboard SATA controller on the system board.

For CTO orders, the necessary cables and trays will be derived by the configurator.

The following tables list the drive options for internal storage of the server.

Special notice for Client drives

Some servers support both Client HDDs and Enterprise Class HDDs. Client HDDs are designed for 8x5 operating environment whereas Enterprise Class HDDs are designed for 24x7 operating environment. Selecting the correct drive class will enable the critical areas of quality, functionality, performance, and reliability to be optimized for the target implementation.

Choosing the right drive type depends on the usage pattern. Improper use of Client HDDs (such as the workload rate exceeding 55 TB/year) will lead to significant risk and increase the drives failure rate.

* The specifications for the product assumes the I/O workload does not exceed the average annualized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade and impact reliability as experienced by the particular application. The average annualized workload rate limit is in units of TB per calendar year.

The ST45 V3 does not support any internal backup unit, such as a tape drive or RDX drive.

The ST45 V3 optionally supports an internal optical drive. CTO ordering information is listed in the following table.

To add the optical drive as a field upgrade, use the parts listed in the following table.

The optical drive is based on the HLDS Model GUE1N Super Multi DVD Writer and supports the following formats:

• DVD-ROM, DVD-ROM DL, DVD-R, DVD-R DL, DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW
• CD-ROM, CD-ROM XA, CD-I, Video CD, CD-Audio, CD-Extra, CD-Text, CD-R, CD-RW

External optical drive

The server supports the external USB optical drive listed in the following table.

The drive is based on the Lenovo Slim DVD Burner DB65 drive and supports the following formats: DVD-RAM, DVD-RW, DVD+RW, DVD+R, DVD-R, DVD-ROM, DVD-R DL, CD-RW, CD-R, CD-ROM.

The ST45 V3 server supports Realtek RTL8111FP onboard 1GbE ethernet, the RTL8111FP is compatible with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet.

It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.

The onboard NIC has the following features:

• Wake-On-LAN support
• Supports Magic Packet Wake-Up.
• Support Onboard IPV4 and IPV6 PXE boot (Preboot eXecution Environment).

Note: SR-IOV/Virtualization/iSCSI/RDMA features non-support (Controller Hardware) on ST45 V3.

The following table lists other supported network adapters. The maximum supported column indicates which slots each adapter is supported in. For slot locations see the I/O expansion options section.

Configuration notes:

• For more information, including the transceivers and cables that each adapter supports, see the list of Lenovo Press Product Guides in the Ethernet adapters category:
  https://lenovopress.com/servers/options/ethernet

The ST45 V3 currently does not support SAS adapters for external storage.

The ST45 V3 does not support Fibre Channel host bus adapters.

The ST45 V3 server does not support graphics processing units (GPUs).

The server supports the following fans:

• CPU heat sink fan
• Front side fan
• Rear side fan

The 4-wire fan connector fan has the following electrical input, monitoring and control connections:

• 12V DC Power
• DC Power Return
• Tachometer Output
• Pulse Width Modulation Control

See the Inside view in the Components and connectors section for locations.

The ST45 V3 server supports a single fixed (non-hot-swap) power supply. The power supply cannot be upgraded.

The server supports a single fixed power supply. The following table lists the supported power supplies.

Power supply options do not include a line cord.

For server configurations, the inclusion of a power supply is model dependent. Configure-to-order models can be configured without a power cord if desired.

To ensures that the properly sized power supply is chosen for optimal performance, it is highly recommended to validate system configuration for specific power requirements by using the latest version of the Lenovo Capacity Planner:
https://datacentersupport.lenovo.com/us/en/products/solutions-and-software/software/lenovo-capacity-planner/solutions/ht504651

ST45 V3 offers systems management using Lenovo XClarity Provisioning Manager Lite (LXPM Lite).

Note: The ST45 V3 server does not have an XClarity Controller (XCC) management processor

The ST45 V3 offers the following security features:

• Electronic security measures:
  • Administrator and power-on passwords
  • Trusted Platform Module (TPM) supporting TPM 2.0
• Mechanical security measures
  • Loop for a padlock to prevent the side panel from being opened
  • Slot at the rear of the server for a Kensington Cable Lock

The ST45 V3 is NIST 800-147 compliant

The following table lists the supported full-sized USB keyboards and mice available for Lenovo ThinkSystem servers.

The keyboards have the following features:

• Full-sized 104-key keyboard with 3 special Windows keys
• 3 LEDs for caps lock, scroll lock and num lock
• Wired USB connection with 1.8m cable
• Adjustable feet at the rear of the keyboard

The ST45 V3 has two integrated DisplayPort video ports at the back of the server. To use these ports with VGA or HDMI cables, use the dongle adapters listed in the following table.

Tip: Some models include a dongle kit. See the Models section for specifics.

Maximum display resolutions are as follows:

• Native DisplayPort: 3840 x 2160 pixels (4K) at a refresh rate of 60Hz
• With the DP to VGA Dongle Kit: 1920 x 1200 pixels at 60 Hz
• With the DP to HDMI Dongle Kit: 1920 x 1200 pixels at 60 Hz

Configuration requirements:

• Only one type of dongle can be used at a time. The use of one of each is not supported.
• Some Xeon processors do not support integrated graphics and the use of the DisplayPort video ports. See the Processors section for details.

The ST45 V3 supports the following operating systems:

• Microsoft Windows Server 2022
• Red Hat Enterprise Linux 9.4
• SUSE Linux Enterprise Server 15 SP6
• Ubuntu 24.04 LTS 64-bit

For a complete list of supported, certified and tested operating systems, plus additional details and links to relevant web sites, see the Operating System Interoperability Guide: https://lenovopress.com/osig

Additional requirements

Additional requirements for operating systems:

• The ST45 V3 supports UEFI BIOS boot mode only; Legacy boot mode isn't supported.
• The ST45 V3 does not support ACPI S3 (Sleep) or ACPI S4 (Hibernate) modes when running Windows 10 or Windows 11.
• The onboard SATA ports of the server can be used with virtualization hypervisors, including Linux KVM, Xen, and Microsoft Hyper-V Server, however support is limited to AHCI (non-RAID) mode.
• The DisplayPort video ports require the following:
  • Linux: kernel/boot parameter "nomodeset" is added

The ST45 V3 has the following overall physical dimensions, including tower feet, excluding components that extend outside the standard chassis, such as power supply handles:

• Width: 170 mm (6.7 inches)
• Height: 376 mm (14.8 inches) (Without Stand - 370 mm)
• Depth: 316 mm (12.4 inches)

The following table lists the detailed dimensions. See the figure below for the definition of each dimension.

Figure 10. Server dimension

The server has the following weight:

• Maximum: 8.56 kg (18.87 lb)

Electrical requirements are as follows:

• Fixed ATX 300-watt Single-Output Gold
  • Input power 115 Vac or 230 Vac
• Fixed ATX 500-watt Multi-Output Platinum
  • Input power 115 Vac or 230 Vac

The ST45 V3 server complies with ASHRAE Class A2 specifications.

• Maximum altitude: 3,050 m (10,000 ft), derated 1°C per 300 m above 950 m
• Relative Humidity (non-condensing):
  • Operating
    • ASHRAE Class A2: 8% to 80%; maximum dew point: 21°C (70°F)
  • Shipment/storage: 8% to 90%

Acoustic noise emissions

The server has the following acoustic noise emissions declaration:

• Sound power level (L_WAd):
  • Idling: Typical: 3.5 Bel, Maximum: 5.0 Bel
  • Operating: Typical: 5.4 Bel, Maximum: 5.4 Bel
• Sound pressure level (L_pAm):
  • Idling: Typical: 25 dBA, Maximum: 37 dBA
  • Operating: Typical: 40 dBA, Maximum: 40 dBA

Note:

• These sound levels were measured in controlled acoustical environments according to procedures specified by ISO 7779 and are reported in accordance with ISO 9296.
• The declared acoustic sound levels are based on the following configurations, which may change depending on configuration/conditions:
  • Typical: 1x 80W CPU, 4x 32GB DIMM, 2x HDD or SSD, 1x 960G M.2, RAID 5350-8i, 1x 300W PSU
  • Maximum: 1x 95W CPU, 4x 32GB DIMM, 2x HDD or SSD, 1x 960G M.2, 1x T1000GPU, 1x 500W PSU

Shock and vibration

The server has the following vibration and shock limits:

• Vibration:
  • Operating: 0.21 G rms at 5 Hz to 500 Hz for 15 minutes across 3 axes
  • Non-operating: 1.04 G rms at 2 Hz to 200 Hz for 15 minutes across 6 surfaces
• Shock:
  • Operating: 15 G for 3 milliseconds in each direction (positive and negative X, Y, and Z axes)
  • Non-operating:
    • 4 kg - 11 kg: 50 G for 167 in./sec velocity change across 6 surfaces

The following specifications indicate the limits of particulates that the system can tolerate:

• Reactive gases:
  • The copper reactivity level shall be less than 200 Angstroms per month (Å/month)
  • The silver reactivity level shall be less than 200 Å/month
• Airborne particulates:
  • The room air should be continuously filtered with MERV 8 filters.
  • Air entering a data center should be filtered with MERV 11 or preferably MERV 13 filters.
  • The deliquescent relative humidity of the particulate contamination should be more than 60% RH
  • Environment must be free of zinc whiskers

For additional information, see the Specifications section of the documentation for the server, available from the Lenovo Documents site, https://pubs.lenovo.com/

The ST45 V3 has a 1-year or 3-year warranty, based on the machine type of the system:

• 7DH4 - 1 year warranty
• 7DH5 - 3 year warranty

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The ST45 V3 conforms to the following standards:

• ANSI/UL 62368-1
• IEC 62368-1 (CB Certificate and CB Test Report)
• CSA C22.2 No. 62368-1
• Argentina IEC 60950-1
• Mexico NOM-019
• India BIS 13252 (Part 1)
• Germany GS
• TUV-GS (EN62368-1, and EK1-ITB2000)
• Brazil INMETRO
• Ukraine UkrCEPRO
• Morocco CMIM Certification (CM)
• Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS)
• Russia, Belorussia and Kazakhstan, EAC: TP TC 004/2011 (for Safety); TP TC 020/2011 (for EMC)
• CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55024, EN55035, EN61000-3-2, EN61000-3-3, (EU) 2019/424, and EN IEC 63000 (RoHS))
• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 7, Class A
• CISPR 32, Class A, CISPR 35
• Korea KN32, Class A, KN35
• Japan VCCI, Class A
• Taiwan BSMI CNS15936, Class A; CNS15598-1; Section 5 of CNS15663
• Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1
• UL Green Guard, UL2819
• Energy Star 4.0
• EPEAT (NSF/ ANSI 426) Bronze
• Japanese Energy-Saving Act
• EU2019/424 Energy Related Product (ErP Lot9)
• China CCC certificate, GB17625.1; GB4943.1; GB/T9254
• China CECP certificate, CQC3135
• China CELP certificate, HJ 2507-2011

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

The following table lists the supported KVM consoles.

The following table lists the available KVM switches and the options that are supported with them.

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. ThinkSystem Rack and Tower Introduction for ISO Client Managers
   2024-12-10 | 20 minutes | Employees Only
   Details
   ThinkSystem Rack and Tower Introduction for ISO Client Managers



   In this course, you will learn about Lenovo’s Data Center Portfolio, its ThinkSystem Family and the key features of the Rack and Tower servers. It will equip you with foundational knowledge which you can then expand upon by participating in the facilitated session of the curriculum.

   Course Objectives:
   • By the end of this course, you should be able to:
   • Identify Lenovo’s main data center brands.
   • Describe the key components of the ThinkSystem Family servers.
   • Differentiate between the Rack and Tower servers of the ThinkSystem Family.
   • Understand the value Rack and Tower servers can provide to customers.

   Published: 2024-12-10
   Length: 20 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DSRTO101r2
2. Lenovo Data Center Technical Sales Certification Exam Study Guide
   2024-11-27 | 10 minutes | Employees and Partners
   Details
   Lenovo Data Center Technical Sales Certification Exam Study Guide



   This guide includes information to help candidates prepare and register for the Data Center Technical Sales practice and certification exams.

   Published: 2024-11-27
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: LENU-322C-SG
3. Lenovo Data Center Sales Certification Exam Study Guide
   2024-11-27 | 10 minutes | Employees and Partners
   Details
   Lenovo Data Center Sales Certification Exam Study Guide



   This guide includes information to help candidates prepare and register for the Data Center Sales practice and certification exams.

   Published: 2024-11-27
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: LENU-122C-SG
4. Partner Technical Webinar - Server Update with Mark Bica
   2024-11-26 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - Server Update with Mark Bica



   in this 60-minute replay, Mark Bica, Lenovo Product Manager gave an update on the server portfolio. Mark presented on the new V4 Intel servers with Xeon 6 CPUs. He reviewed where the new AMD 5th Gen EPYC CPUs will be used in our servers. He followed with a review of the GPU dense servers including SR680, SR680a, SR575 and SR780a. Mark concluded with a review of the SC777 and SC750 that were introduced at TechWorld.

   Published: 2024-11-26
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 112224
5. Family Portfolio: ThinkSystem Rackmount and Tower Servers powered by AMD
   2024-11-25 | 30 minutes | Employees and Partners
   Details
   Family Portfolio: ThinkSystem Rackmount and Tower Servers powered by AMD



   This course presents the key products and features of the ThinkSystem Rackmount and Tower server family powered by AMD processors. It describes customer benefits and will help you recognize when a specific product should be selected.

   Course Objectives:
   By the end of this course, you should be able to:
   • Identify products and features within the family
   • Describe customer benefits offered by this family
   • Recognize when a specific product should be selected

   Published: 2024-11-25
   Length: 30 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW1216r10
6. Q3 Solutions Launch AMD Powered ST45 V3 Quick Hit
   2024-11-25 | 3 minutes | Employees and Partners
   Details
   Q3 Solutions Launch AMD Powered ST45 V3 Quick Hit



   The Lenovo ThinkSystem ST45 V3, the first Lenovo tower server with an AMD processor, is a compact-sized and affordable single-socket entry tower design optimized for SOHO (Small Office/Home Office), educational institutions, and retail offices. Target roles include file server, mail server, print server, FTP server, business application server and near-side data backup server.

   Published: 2024-11-25
   Length: 3 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW1216r10a
7. Partner Technical Webinar - LenovoPress updates and LPH Demo
   2024-11-13 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - LenovoPress updates and LPH Demo



   in this 60-minute replay, we had 3 topics. First, David Watts, Lenovo Sr Manager LenovoPress, gave an update on LenovoPress and improvements to finding Seller Training Courses (both partner and Lenovo). Next, Ryan Tuttle, Lenovo LETS Solution Architect, gave a demo of Lenovo Partner Hub (LPH) including how to find replays of Partner Webinars in LPL. Finally, Joe Murphy, Lenovo Sr Manager of LETS NA, gave a quick update on the new Stackable Warranty Options in DCSC.

   Published: 2024-11-13
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 110824
8. Virtual Facilitated Session - ThinkSystem Rack and Tower Primer for ISO Client Managers
   2024-10-31 | 90 minutes | Employees Only
   Details
   Virtual Facilitated Session - ThinkSystem Rack and Tower Primer for ISO Client Managers



   In this Virtual Instructor-Led Training Session, ISO Client Managers will be able to build on the knowledge gained in Module 1 (eLearning) of the ThinkSystem Rack and Tower Server Primer for ISO Client Managers curriculum.

   <p>
   <span style="color:red; font-weight:bold;"> IMPORTANT! </span> <span style="font-weight:bold;"> Module 1 (eLearning) must be completed to be eligible to participate in this session. Please note that places are subject to availability. If you are selected, you will receive the invite to this session via email. </span>
   </p>

   Published: 2024-10-31
   Length: 90 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DSRTO102
9. Partner Technical Webinar - OneIQ
   2024-07-15 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - OneIQ



   In this 60-minute replay, Peter Grant, Field CTO for OneIQ, reviewed and demo’d the capabilities of OneIQ including collecting data and analyzing. Additionally, Peter and the team discussed how specific partners (those with NA Channel SA coverage) will get direct access to OneIQ and other partners can get access to OneIQ via Distribution or the NA LETS team.

   Published: 2024-07-15
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 071224
10. SAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP Landscapes
    2024-06-04 | 60 minutes | Employees Only
    Details
    SAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP Landscapes



    Join Mark Kelly, Advisory IT Architect with the Lenovo Global SAP Center of Competence as he discusses:
    • Challenges in the SAP environment
    • Lenovo On-premise Solutions for SAP
    • Lenovo support resources for SAP solutions

    Published: 2024-06-04
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DSAPF101
11. Lenovo Data Center Product Portfolio
    2024-05-29 | 20 minutes | Employees and Partners
    Details
    Lenovo Data Center Product Portfolio



    This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

    Published: 2024-05-29
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW1110r7
12. VTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AI
    2024-05-22 | 60 minutes | Employees Only
    Details
    VTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AI



    Join JD Dupont, NVIDIA Head of Americas Sales, Lenovo partnership and Veer Mehta, NVIDIA Solution Architect on an interactive discussion about cloud to edge, designing cloud Solutions with NVIDIA GPUs and minimizing private\hybrid cloud OPEX with GPUs. Discover how you can use what is done at big public cloud providers for your customers. We will also walk through use cases and see a demo you can use to help your customers.

    Published: 2024-05-22
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVCLD212
13. Partner Technical Webinar - ISG Portfolio Update
    2024-04-15 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - ISG Portfolio Update



    In this 60-minute replay, Mark Bica, NA ISG Server Product Manager reviewed the Lenovo ISG portfolio. He covered new editions such as the SR680a \ SR685a, dense servers, and options that are strategic for any workload.

    Published: 2024-04-15
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 041224
14. Partner Technical Webinar - StorMagic
    2024-03-19 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - StorMagic



    March 08, 2024 – In this 60-minute replay, Stuart Campbell and Wes Ganeko of StorMagic joined us and provided an overview of StorMagic on Lenovo. They also demonstrated the interface while sharing some interesting use cases.

    Published: 2024-03-19
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 030824
15. Family Portfolio: Storage Controller Options
    2024-01-23 | 25 minutes | Employees and Partners
    Details
    Family Portfolio: Storage Controller Options



    This course covers the storage controller options available for use in Lenovo servers. The classes of storage controller are discussed, along with a discussion of where they are used, and which to choose.

    After completing this course, you will be able to:
    • Describe the classes of storage controllers
    • Discuss where each controller class is used
    • Describe the available options in each controller class

    Published: 2024-01-23
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW1111
16. Lenovo-Intel Sustainable Solutions QH
    2024-01-22 | 10 minutes | Employees and Partners
    Details
    Lenovo-Intel Sustainable Solutions QH



    This Quick Hit explains how Lenovo and Intel are committed to sustainability, and introduces the Lenovo-Intel joint sustainability campaign. You will learn how to use this campaign to show customers what that level of commitment entails, how to use the campaign's unsolicited proposal approach, and how to use the campaign as a conversation starter which may lead to increased sales.

    Published: 2024-01-22
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2524a
17. FY24Q3 Intel Servers Update
    2023-12-11 | 15 minutes | Employees and Partners
    Details
    FY24Q3 Intel Servers Update



    This update is designed to help you discuss the features and customer benefits of Lenovo servers that use the 5th Gen Intel® Xeon® processors. Lenovo has also introduced a new server, the ThinkSystem SD650-N V3, which expands the supercomputer server family. Reasons to call your customer and talk about refreshing their infrastructure are also included as a guideline.

    Published: 2023-12-11
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2522a
18. Partner Technical Webinar - Data Center Limits and ISG TAA Compliance
    2023-05-16 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - Data Center Limits and ISG TAA Compliance



    In this 60-minute replay, we had two topics. First Vinod Kamath, Lenovo Distinguished Engineer for Data Center Cooling presented on the Systems Configuration and Data Center Ambient Limits. Second, Shama Patari, Lenovo Trade Council, and Glenn Johnson, Lenovo Principal Engineer for Supply Chain presented on ISG TAA Compliance.

    Published: 2023-05-16
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 051223
19. Lenovo Sustainable Computing
    2022-09-16 | 4 minutes | Employees and Partners
    Details
    Lenovo Sustainable Computing



    This Quick Hit describes the Lenovo sustainable computing program, and the many ways in which Lenovo strives to respect and protect the environment.

    Published: 2022-09-16
    Length: 4 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2504a

1-10 of 19 courses. Show All

For more information, see these resources:

• ThinkSystem ST45 V3 product page
  https://www.lenovo.com/us/en/p/servers-storage/servers/towers/lenovo-thinksystem-st45-v3/len21ts0040
• ThinkSystem ST45 V3 interactive 3D tour
  https://lenovopress.lenovo.com/lp2102

• ThinkSystem ST45 V3 drivers and support
  https://datacentersupport.lenovo.com/us/en/products/servers/thinksystem/st45v3/7dh5/downloads/driver-list/

• ThinkSystem ST45 V3 product publications:
  http://thinksystem.lenovofiles.com/help/index.jsp
  • Quick Start
  • Tower-to-Rack Conversion Kit Installation Instructions
  • Setup Guide
  • Maintenance Manual
  • Lenovo XClarity Provisioning Manager Lite User Guide
• ServerProven hardware compatibility:
  http://www.lenovo.com/us/en/serverproven
