Lenovo ThinkEdge SE100 Edge Server

The ThinkEdge SE100 is a purpose-built server that is 1/3 width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, ceiling mount, placed on a desk or mounted in a rack. The ThinkEdge SE100 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly.

Target workloads for retail and manufacturing markets: Machine Learning, Augmented Reality, Video Analytic, Workload consolidation and Smart surveillance, Edge AI, Realtime processing.

Figure 1. Lenovo ThinkEdge SE100

Full 3D Tour

The ThinkEdge SE100 fits those customers that want to install a server outside the data center looking for reduced latency by processing at the edge, avoiding transmission of data between the core and edge where possible and also adhering to the regulatory security requirements of the geography and industry by storing and analyzing data at the edge. The ThinkEdge SE100 has a compact design, low power usage, and high performance are just the right combination for edge locations. It can be wall mounted, placed on a desk or installed in a rack. It is also designed to operate in a semi rugged environment, 5°C to 45°C, dust protection and vibration.

The ThinkEdge SE100 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. The 2.1 liter (base node unit) can be mounted on a wall, ceiling mount, placed on desk or mounted in a rack.

The ThinkEdge SE100 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly. The server supports a wired connections up to 10GbE via optional PCIe expansion.

Since these edge servers are typically deployed outside of secure data centers, they include technology that encrypts the data stored on the device if it is tampered with, only enabling authorized users to access it.

Scalability and performance

The SE100 offers numerous features to boost performance, improve scalability and reduce costs:

• Support a single processor from the Intel Arrow-Lake Processor family. Supports processors up to 16 cores, core speeds of up to 2.0 GHz, and TDP ratings of up to 28W.
• Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
• Support for up to 2 TruDDR5 memory CSODIMM and up to 64 GB of memory using 32 GB DIMMs.
• Supports 1x SATA+2x NVMe or 3x NVMe at the same time.
• Supports 1x boot drive (2280 M.2 SATA/NVMe SSD) for OS, 2x data drives (2280, 22110 NVMe SSD) for applications, allowing the convenience of separating application code from data.
• The use of NVMe drives increased performance over SATA drives, in terms of throughput, bandwidth, and latency.
• 1GbE LOM(LAN on motherboard), 10GbE by NIC(Network Interface Card) to support low and high-speed networking to back-end servers.
• 1x PCIe slot (for GPU support, or optional Network Adapters support).

Availability and serviceability

The SE100 provides many features to simplify serviceability and increase system uptime:

• Supports remote management, including remote control functions down to the UEFI level (most models) makes managing the edge servers easy even without onsite IT personnel.
• ARL-H CPU do not support HW ECC DIMM instead of SW ECC function(call in-band ECC from intel design).
• Two redundant external AC Adapter power supplies and server also supports 3 type of FANs. Note that each type of fans are supported in pairs (Qty = 2) for redundancy.
• Built-in XClarity Controller continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failures to minimize downtime.
• Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
• Lenovo XClarity Provisioning Manager collects and saves service data to USB key drive or remote CIFS share folder, for troubleshooting and to reduce service time.
• Auto restart in the event of a loss of AC power
• Support for the XClarity Administrator Mobile app running on a supported smartphone and connected to the server through the service-enabled USB port, enables additional local systems management functions.
• Three-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available.

Manageability and security

Systems management features simplify local and remote management of the SE100:

• The server includes XClarity Controller 2 (XCC2) to monitor server availability. Optional upgrade to XCC Platinum to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files (ISO and IMG image files), boot capture, power capping and new XCC2 Platinum features. New XCC2 Platinum features include System Guard, new security modes including a CNSA-compliant mode, FIPS 140-3 and NIST 800-193 support, and a new Neighbor Group feature.
• Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
• IT Administrators can securely claim and activate the SE100 remotely through the ThinkShield Key Vault Portal, available on the web. They can also manage and unlock their global IoT edge fleet for initial operation and in case of tamper. The ThinkShield Edge Mobile Management app enables Edge Users to securely claim and activate the ThinkSystem SE100 in an easy to use Web UI.
• New UEFI-based Lenovo XClarity Provisioning Manager, accessible from F1 during boot, provides system inventory information, graphical UEFI Setup, platform update function, operating system installation function, and diagnostic functions. Note that RAID is not supported.
• Support for Lenovo XClarity Energy Manager, which captures real-time power and temperature data from the server and provides automated controls to lower energy costs.
• Integrated Trusted Platform Module (TPM) 2.0 support enables advanced cryptographic methods, such as digital signatures and remote attestation.
• Supports Secure Boot to ensure only a digitally signed operating system can be used.
• Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
• Intel Execute Disable Bit functionality can prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.
• Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.

View the SE100 in augmented reality (AR) using your smartphone or tablet.

Simply follow these steps:

1. Scan the QR code* with the camera app on your phone
2. Point your phone at a flat surface
3. Wait a few seconds for the model to appear

Once the server appears, you can move your phone around it. You can also drag or rotate the server to reposition it.

For more information about the AR viewer, see the article "Introducing the Augmented Reality Viewer for Lenovo Servers", available from https://lenovopress.lenovo.com/lp1952

* If you're viewing this document on your phone or tablet, simply tap the QR code

The following figure shows the architectural block diagram of the SE100 system, showing the major components and connections.

Figure 6. SE100 system board - architectural block diagram

The system board also connects to a PCIe expansion kit which provides 1x wired network connection or 1x GPU adapter.

The following table lists the standard specifications.

ThinkEdge SE100 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Topics in this section:

• CTO models

CTO models

ThinkEdge SE100 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Configure-to-order (CTO) models are used to create models with factory-integrated server customizations. One CTO model is available for the SE100 as listed in the following table:

• The CTO1WW base CTO model is for general business and is selectable by choosing General Purpose mode in DCSC.

The SE100 supports processors in the Intel Ultra family of processors (formerly codenamed "Arrow Lake"). The server supports one processor and the processor is soldered on the system board.

The table below lists the supported processors.

All supported processors have the following characteristics:

• AI capable: Intel AVX2, OpenVINO
• Intel Virtualization Technology (VT-x, VT-d)
• Intel AES New Instructions
• Intel Trusted Execution Technology (*Planned for future support)
• Intel Boot Guard
• Intel OS Guard (*Planned for future support)
• Mode-based Execute Control (MBEC)
• Secure key

The following table lists the features of the supported processors.

The server uses processors with 2 memory channels and supports 1 DIMM per channel, for a total of 2 DIMMs. The server supports up to 64GB of memory using 2x 32 GB CSODIMM or SODIMM.

The following table lists the memory options that are available for the server.

Lenovo TruDDR5 memory uses the highest quality components that are sourced from Tier 1 DRAM suppliers and only memory that meets the strict requirements of Lenovo is selected. It is compatibility tested and tuned to maximize performance and reliability. From a service and support standpoint, Lenovo TruDDR5 memory automatically assumes the system warranty, and Lenovo provides service and support worldwide.

The following rules apply when selecting the memory configuration:

• DIMM installation sequence 1, 2
• One DIMM per channel only
• Mixed different Frequency Memory is not allowed. Mixing of DDR5-6400 and DDR5-5600 is not supported
• It's not allowed to mix capacity across channel
• Mixed Vendor Memory DIMM population is allowed
• No support ECC SODIMM
• Supports 5600 MHz SODIMM and 6400 MHz CSODIMM DRAM
• Memory mirroring and memory rank sparing are not supported
• Server supports Independent mode
• Rank sparing, ADDC, channel mirroring, hemisphere modes, and 2LM are not supported with Software Guard Extensions (SGX)
• Single Device Data Correction (SDDC, also known as Chipkill), not supported
• SE100 supports in-band ECC feature with single or dual memory modules with same capacity only, if for example installing different memory modules 16 GB and 32 GB DIMMs in the same configuration server will not have in-band ECC function

The internal storage of the SE100 server is implemented as follows:

• Up to 1x SATA/NVMe SSD drive.
• Up to 2x NVMe SSD drives.
• No support for HW RAID nor SW RAID

The SE100 supports the following type of drive bays.

• M.2 drives for boot:
  •  One 2280 size M.2 SATA/NVMe SSD  (Supported M.2 slot is a PCIe 4.0 x4)
• Data drives:
  • Two 2280 NVMe SSD, or two 22110 NVMe SSD
  • Not allowed to mix M.2 length 2280 and 22110
  • A mechanical Holder (4XF7A96691) is need for 2280 M.2 installation for Data drives

The following table lists the supported drive options.

*Require: 1x ThinkEdge SE100 2280 M.2 Holder (4XF7A96691)

To view the technical specifications of these drives, see the ThinkSystem SSD Portfolio:
https://lenovopress.lenovo.com/lp1261-lenovo-thinksystem-ssd-portfolio#availability=Available

SE100 server has the following I/O characteristics:

• Front:
  • 2x HDMI 2.0 - directly connected to host CPU
  • 1x RJ45 RS232 Serial COM - COM port from XCC or host CPU
  • 2x USB3.2 Gen2 Type-A
  • 1x USB3.2 Gen2 Type-C (display from XCC or USB from CPU), with locking screw
  • 1x USB3.2 Gen2 Type-C (OS display directly connected to host CPU), with locking screw
• Rear:
  • 1x Type-C (Power), with locking screw
  • 1x Type-C (Power or BMC USB 2.0 ), support power redundancy. with locking screw
  • 2x USB3.2 Gen2 Type-A
  • 2x 1GbE+ 1x GbE BMC management (XCC)

The SE100 front and rear I/O network ports are shown in the following figure.

Figure 7. Front and rear view for supported I/O network ports

Additionally, the SE100 server supports 1U height PCIe Expansion kit.

The Expansion kit can only support one HHHL PCIe Card under 75W. There is one PCIe x16 slot support Gen4 x8 mode in the PCIe Expansion kit. (Two blowers are required for FANless PCIe card to support FAN fail feature.)

The SE100 and the Expansion kit are shown in the following image.

Figure 8. SE100 and the Expansion kit

The SE100 supports additional network adapters.

• Additional I/O is supported via the one PCIe slot available in the optional PCIe Expansion kit.
• This PCIe x16 physical slot supports electrical PCI Express 4.0 x16 (x8 lanes, HH/HL, up to 75W).
• Blower FAN connectors are reserved to support LAN Expansion Kit or those PCIe card without FAN by itself.

Dimensions for Base node with the PCIe Expansion kit are:

• Form Factor (without shroud) : 214 x 278 x 46mm (2.73L)
  • This form factor for base node without Node Fan Shroud applies for rack mount only
• Form Factor (with shroud): 214 x 278 x 53mm (3.1L)

The following table lists the Expansion Kits.

The Expansion kits have the following characteristics:

• ThinkEdge SE100 I/O Expansion Kit (C30E)
  • Supports: Broadcom 5719 (AUZV), Broadcom 57416 (AUKP)
• ThinkEdge SE100 I/O Expansion Kit with Active Cooling Card (C30F)
  • Supports: NVIDIA Quadro RTX A1000 (C39N)
  • Supports: NVIDIA Quadro RTX 2000E (C39P)
  • One PCIe x16, single wide, low profile GPU
• However if no Expansion Kit is needed, need to add ThinkEdge SE100 Expansion Connection Cover (C30D)

The following table lists the supported adapters.

For more information on the technical specifications of these adapters, search Product Guide home page:
https://lenovopress.lenovo.com/#resource_type=product-guide&sort=relevance

The RJ45 ports support the following Category 6 (CAT 6) or CAT5e cables.

The server supports the external USB optical drive listed in the following table.

The drive is based on the Lenovo Slim DVD Burner DB65 drive and supports the following formats: DVD-RAM, DVD-RW, DVD+RW, DVD+R, DVD-R, DVD-ROM, DVD-R DL, CD-RW, CD-R, CD-ROM.

The server supports RJ45 connector at rear side with RS-232 serial port function.

Below console cable able to provide DB-9 female interface connection.

The SE100 supports graphics processing units (GPUs).

The following table lists supported GPUs that can be installed in the PCIe expansion kit's slot.

Refer to the PCIe Expansion Kit details listed in the Network adapters section.

Configuration notes:

For information about the GPU, see the ThinkSystem GPU Summary, available at:
https://lenovopress.com/lp0768-thinksystem-thinkagile-gpu-summary

Depending on the configuration for the Lenovo ThinkEdge SE100 the following types of fans are supported:

• Base node: Support up to two 6513 non-hot swap fans.

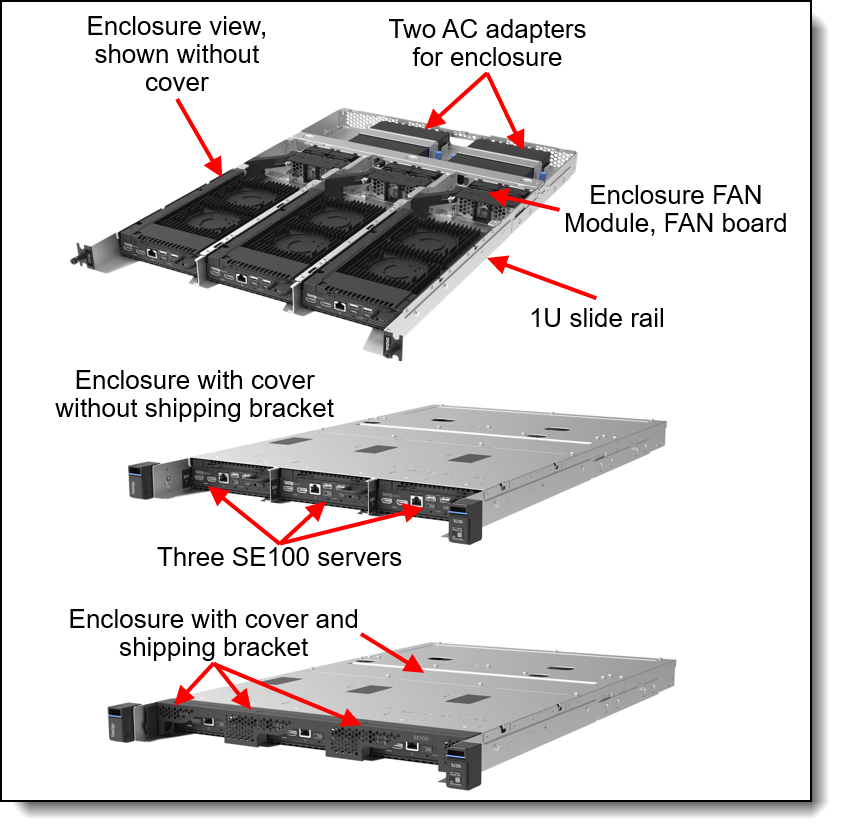

• Enclosure: Depends on the model type, 1U2N enclosure supports up to four 4028 non-hot swap fans while 1U3N enclosure supports up to six 4028 non-hot swap fans.

• Expansion Kit with Passive Cooling Card: The expansion kit with Ethernet adapter supports up to two 5010 blower fans.

• Fans are redundant in: base node, in expansion kit (passive), and in enclosures.

• Fans are not hot-swappable.

The following table illustrates the supported fans across configurations.

The Lenovo ThinkEdge SE100 server supports two types of power adapters:

• 140W for standalone Desktop mode and VESA Mode
• 300W for Rack Enclosure Mode

SE100 supports one or two 28V AC/DC power adapter with Type-C PD (Output 28V) connected to one or two plug-in external AC adapters.

The Lenovo ThinkEdge SE100 server supports redundant power function if connected to two plug-in external AC adapters, any combinations of vendor’s adapter can be mixed with system application.

Additionally, the following power features are supported:

• 300W adapter for rack enclosure mode will detect how many "node system connection" to "switch output watts" for each node.
• 300W adapter will output each node with 140 Watts if one or two nodes connection to 300W adapter.
• 300W adapter will output each node with 100 Watts if three nodes connection to 300W adapter.
• The 300W adapter will not provide over 140 Watts to single node rack enclosure usage.

Ordering information is listed in the following table.

The SE100 contains an integrated service processor, XClarity Controller 2 (XCC2), which provides advanced control, monitoring, and alerting functions. The XCC2 is based on the AST2600 baseboard management controller (BMC) using a dual-core ARM Cortex A9 service processor.

Topics in this section:

• Local management
• System status with XClarity Mobile
• Remote management
• MicroSD for XCC local storage
• XCC2 Platinum
• Lenovo XClarity Provisioning Manager
• Lenovo XClarity Administrator
• Lenovo XClarity Integrators
• Lenovo XClarity Essentials
• Lenovo XClarity Energy Manager
• Lenovo Capacity Planner

The buttons on the front of the server:

• UART status LED (white)
  • On - UART output with XCC log
  • Off - UART output with CPU log
• UID button with LED (blue) - System is identified
• System Error LED (yellow) - System error alarm
• Power button with power status LED (green)
• Activation/Security LED(green)
  • On - System is activated with security feature ON (SED enabled or intrusion enabled)
  • Blinking - System is in lockdown state, Activation is required
  • Off - System is activated but no security features are enabled

The buttons on the rear of the server:

• USB-C PD 28V Power Adapter Input x2
  • Power input Jack to support two 28V AC/DC power adapter. USB Power Adapter input 2 also shared with XCC USB2.0 port.
    • On (Green) - The server is connected to the power adapter and working normally.
    • On (Amber) - The server is connected to the power adapter but can not be powered on since the power capability is unable to support the system requirement.
    • Off - The power adapter is disconnected or a power problem occurs.
• Micro Lock FAN Board Conn
  • FAN Board Connector to support two External Rack Enclosure FAN via cable (Enclosure FAN via cable connects to node inside the enclosure for proper usage).
• Kensington lock - on the side

The front of the server also houses an information pull-out tab (also known as the network access tag). A label on the tab shows the network information (MAC address and other data) to remotely access the XCC service processor.

The SE100 also supports optional connection to local VGA monitor.

The steps to connect the mobile device are as follows:

1. Connect the mobile device via your USB cable and the supplied USB-to USB type-C cable to the SE100's USB type-C port with the management symbol
2. In iOS or Android settings, enable Personal Hotspot or USB Tethering
3. Launch the Lenovo XClarity Mobile app

The supported USB cable is listed in the following table.

Remote management

The server offers a dedicated RJ45 port at the rear of the server for remote management via the XClarity Controller management processor. The port supports 10/100/1000 Mbps speeds.

Remote server management is provided through industry-standard interfaces:

• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP) Version 3 (no SET commands; no SNMP v1)
• Common Information Model (CIM-XML)
• Representational State Transfer (REST) support
• Redfish support (DMTF compliant)
• Web browser - HTML 5-based browser interface (Java and ActiveX not required) using a responsive design (content optimized for device being used - laptop, tablet, phone) with NLS support

MicroSD for XCC local storage

The server includes a MicroSD card port to enable the use of a MicroSD card for additional storage for use with the XCC controller. XCC can use the storage as a Remote Disc on Card (RDOC) device (up to 4GB of storage). It can also be used to store firmware updates (including N-1 firmware history) for ease of deployment.

Tip: Without a MicroSD card installed, the XCC controller will have 100MB of available RDOC storage.

Ordering information for the supported Micro SD cards is listed in the following table.

XCC2 Platinum

The XCC2 service processor in the SE100 supports an upgrade to a Platinum level of features. Compared to the XCC functions of ThinkSystem and earlier systems, Platinum adds the same features as Enterprise and Advanced levels in ThinkSystem, plus additional features.

XCC2 Platinum adds the following Enterprise and Advanced functions:

• Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel, regardless of the system state
• Remotely accessing the server using the keyboard and mouse from a remote client
• International keyboard mapping support
• The monitor needs to be connected to the USB Type-C display port marked with a white square when the customer is using the remotely function. Otherwise, do set the USB-C port with the white marking as the main display within the operating system.

  • If the operating system's main display is set to HDMI or a USB-C port without the white marking, the operating system will display a black screen on the XCC remotely usage.

• Syslog alerting
• Redirecting serial console via SSH
• Component replacement log (Maintenance History log)
• Access restriction (IP address blocking)
• Lenovo SED security key management
• Displaying graphics for real-time and historical power usage data and temperature
• Boot video capture and crash video capture
• Virtual console collaboration - Ability for up to 6 remote users to be log into the remote session simultaneously
• Remote console Java client
• Mapping the ISO and image files located on the local client as virtual drives for use by the server
• Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
• Power capping
• System utilization data and graphic view
• Single sign on with Lenovo XClarity Administrator
• Update firmware from a repository
• License for XClarity Energy Manager

XCC2 Platinum also adds the following features that are new to XCC2:

• System Guard - Monitor hardware inventory for unexpected component changes, and simply log the event or prevent booting
• Enterprise Strict Security mode - Enforces CNSA 1.0 level security
• Neighbor Group - Enables administrators to manage and synchronize configurations and firmware level across multiple servers

Ordering information is listed in the following table. XCC2 Platinum is a software license upgrade - no additional hardware is required.

With XCC Platinum, for CTO orders, you can request that System Guard be enabled in the factory and the first configuration snapshot be recorded. To add this to an order, select feature code listed in the following table. The selection is made in the Security tab of the DCSC configurator.

For more information about System Guard, see https://pubs.lenovo.com/xcc2/NN1ia_c_systemguard

Lenovo XClarity Provisioning Manager

Lenovo XClarity Provisioning Manager (LXPM) is a UEFI-based application embedded in ThinkSystem servers and accessible via the F1 key during system boot.

LXPM provides the following functions:

• Graphical UEFI Setup
• System inventory information and VPD update
• System firmware updates (UEFI and XCC)
• OS installation wizard (including unattended OS installation)
• Diagnostics functions

Because Lenovo XClarity Administrator does not require any agent software to be installed on the managed endpoints, there are no CPU cycles spent on agent execution, and no memory is used, which means that up to 1GB of RAM and 1 - 2% CPU usage is saved, compared to a typical managed system where an agent is required.

Lenovo XClarity Administrator is an optional software component for the SE100. The software can be downloaded and used at no charge to discover and monitor the SE100 and to manage firmware upgrades.

If software support is required for Lenovo XClarity Administrator, or premium features such as configuration management and operating system deployment are required, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the Lenovo XClarity software license options.

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

For more information about all the available Lenovo XClarity Integrators, see the Lenovo XClarity Administrator Product Guide: https://lenovopress.com/tips1200-lenovo-xclarity-administrator

LXEM is a licensed product. A single-node LXEM license is included with the XClarity Controller Enterprise upgrade as described in the Remote Management section. If your server does not have the XCC Enterprise upgrade, Energy Manager licenses can be ordered as shown in the following table.

The SE100 offers a number of security features, both electronic and physical.

Figure 10. Security features of the SE100

Physical security features:

• The server has an intrusion switch that rests against the server cover. In the event that the cover is removed, the event is recorded and actions can be taken to secure the server. The intrusion switch is standard.

• Support for a Kensington lock and cable

  The server has a slot on the side of the server which a customer-supplied Kensington lock and cable can be attached to, to help prevent theft of the server.

Electronic security features include:

• Self-encrypting (SED) on M.2 that ensure data is secured when the drives are powered off
• Administrator password and a power-on password in UEFI
• Onboard Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality in the operating system and applications.

The server is NIST SP 800-193 compliant.

Ordering information for the security components is listed in the following table.

System Lockdown Mode

System Lockdown Mode is an optional security feature of the SE100 that ensures that the system is only used by its intended recipient and that all data and applications remains secure.

System Lockdown Mode is an optional feature that can be remotely managed in two ways:

• ThinkShield Key Vault Portal Managed. This provides a centralised remote management approach, allowing the administrator to remotely managed multiple systems and to register ownership of systems to their company, which reduces the system’s value is stolen.
• XClarity Controller Managed. This provides remote management level control to an individual system using XCC web interface, OneCLI or Redfish.

To select ThinkShield Key Vault Portal Managed in factory orders, select feature BYBR, as listed in the following table. The default in DCSC is to select XClarity Controller Managed, feature BYBQ.

If System Lockdown is enabled in the factory, the system will be delivered in system lockdown mode and will require activation before operation. There are three ways the server can be activated:

• Using a mobile device (iOS or Android) connect to the server to the USB management port on the rear of the server (USB-C with XCC USB2.0) and running the ThinkShield Edge Mobile Management app.
• Connecting the system to the Internet via the XCC management port on the rear of the server (RJ45 for MGMT) and accessing the ThinkShield Key Vault Portal from a web browser on another system.
• In a disconnected mode, where neither a mobile device or an internet connection to the SE100 are available.

For more information, see ThinkEdge Security, available from:
https://lenovopress.lenovo.com/lp1725-thinkedge-security

The SE100 offers a Security LED that indicates the status of the server:

• LED on: Security is enabled; System is operational.
• LED blinking: Security is enabled and the server is in lockdown, either due to being delivered from the factory in lockdown mode or has entered lockdown as a result of a tamper event. System must be activated or reactivated before becoming operational.
• LED off: Security is disabled; System is operational.

SED encryption in factory orders

The SE100 also optionally supports enabling SED drive encryption in the factory using feature BYBS as listed in the following table. This feature enables SED on the selected drives and sets and SED Authentication Key (SED AK).

System Guard

The System Guard feature takes a snapshot of the hardware component inventory as trusted reference, then monitors for any deviation from the reference snapshot.

When deviation occurs, it can report an event to the user, optionally, can also prevent the server from booting into the OS and prompt the user for response.

• System Guard is only enabled with XCC2 on V3 code
• Server supports this feature (BUT2) when XCC Platinum enabled only.
• The System Guard feature is disabled by default

System Guard is a feature of XCC Platinum. Sytem Guard (BUT2) should only be selectable if XCC Platinum (BRPJ) is selected.

Platform Firmware Resiliency - Lenovo ThinkShield

Lenovo's ThinkShield Security is a transparent and comprehensive approach to security that extends to all dimensions of our data center products: from development, to supply chain, and through the entire product lifecycle.

The ThinkEdge SE100 includes Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the system to be NIST SP800-193 compliant. This offering further enhances key platform subsystem protections against unauthorized firmware updates and corruption, to restore firmware to an integral state, and to closely monitor firmware for possible compromise from cyber-attacks.

PFR operates upon the following server components:

• UEFI image – the low-level server firmware that connects the operating system to the server hardware
• XCC image – the management “engine” software that controls and reports on the server status separate from the server operating system
• FPGA image – the code that runs the server’s lowest level hardware controller on the motherboard

The Lenovo Platform Root of Trust Hardware performs the following three main functions:

• Detection – Measures the firmware and updates for authenticity
• Recovery – Recovers a corrupted image to a known-safe image
• Protection – Monitors the system to ensure the known-good firmware is not maliciously written

These enhanced protection capabilities are implemented using a dedicated, discrete security processor whose implementation has been rigorously validated by leading third-party security firms. Security evaluation results and design details are available for customer review – providing unprecedented transparency and assurance.

The SE100 includes support for Secure Boot, a UEFI firmware security feature developed by the UEFI Consortium that ensures only immutable and signed software are loaded during the boot time. The use of Secure Boot helps prevent malicious code from being loaded and helps prevent attacks, such as the installation of rootkits. Lenovo offers the capability to enable secure boot in the factory, to ensure end-to-end protection. Alternatively, Secure Boot can be left disabled in the factory, allowing the customer to enable it themselves at a later point, if desired.

The following table lists the relevant feature code(s).

The SE100 is designed to be used in a variety of locations --  wall, ceiling, DIN-rail, table top -- as well as in a rack mount.

In this section:

• Mounting components - Node sleeve
• Desktop mount
• Wall, ceiling or DIN mount
• 1U2N rack installation
• 1U3N rack installation
• Mounting options and power
• Unmounting node from enclosure

For additional information on node sleeve and DIN Rail installation, see the Configuration Installation Guide:
https://pubs.lenovo.com/se100/install_node_to_din

For additional information on wall mount/ceiling mount see the Configuration Installation Guide:
https://pubs.lenovo.com/se100/configuration_wall_mount

Mounting components - Node sleeve

Many of the mounting options share the same components.

Node sleeve

The node sleeve, shown below without Expansion kit, holds the SE100 server when mounted on to DIN rail. The server is then slid into the node sleeve and secured with additional thumbscrews.

Figure 11. Node sleeve image

Configuration notes:

• C31B supports base node without EXP kit
• C31G supports base node + EXP kit.
• C31B and C31G are mutually exclusive

Desktop mount

Desktop mounting has the server oriented horizontally with self-adhesive rubber pads mounted to its underside. Optional PCIe Expansion kit also supports rubber pads underside.

Figure 12. SE100 and expansion kit with Rubber Feet option

The rubber feet are also orderable separately as listed in the following table.

Wall, ceiling or DIN mount

When wall, ceiling or DIN mounted, the server must be installed onto a node sleeve first. For DIN mount, the optional DIN mount kit is required.

SE100 supports the standalone and PCIe expansion kit for mounting on wall or ceiling. Additionally the following is also supported:

• Filter covers the PCIe expansion kit area for GPU or network area to reduce the dust that can enter the server through the front air holes.

The following image illustrates DIN Rail Kit, with two brackets, mount plate and node sleeve, for mounting.

Figure 13. DIN Rail Kit for node mounting

The VESA with expansion kit supports node mounting for wall mount or ceiling mount, as shown in the following figure.

Figure 14. SE100 with expansion kit for VESA wall mount or ceiling

1U2N rack installation

Two SE100 servers can be mounted in a 1U space, in a rack server. The components are mounted in the Lenovo ThinkEdge SE100 1U2N Enclosure.
Make sure enclosure and server selection leverage the same power input path for installation.

The following figure shows two SE100 servers installed in the 1U2N Enclosure.

Figure 15. Lenovo ThinkEdge SE100 1U2N Enclosure with external adapter

The following table lists the components used in the 1U rack installation.

1U3N rack installation

Three SE100 servers and the two companion AC Adapter power supplies can also be mounted in a rack. In such a configuration, the servers occupy 1U of rack space. The components are mounted in the Lenovo ThinkEdge SE100 1U3N Enclosure, machine type 7DGV.

Note: 1U3N enclosure supports SE100 servers and external 300W PSU adapter only.

The following figure shows three SE100 servers installed in the Lenovo ThinkEdge SE100 1U3N Enclosure.

Figure 16. Lenovo ThinkEdge SE100 1U3N Enclosure components (rail in open position)

The following table lists the components used in the 1U rack installation.

Mounting options and power

The following table list supported mounting options and their corresponding supported power type.

Configuration notes:

• When in rack mount the operating temperature will be 5~35 ℃.
• When one or two 140W external power adapter are installed, keep ambient temperature lower than 45°C.
• When one or two 300W external power adapter are installed, keep ambient temperature lower than 35°C.

Unmounting node from enclosure

Base node can be unmounted from rack enclosure and be used as a desktop/wall/ceiling/DIN mount model.

The components needed for the SE100 are shown in the following table.

The SE100 supports the following operating systems:

• Ubuntu 24.04 LTS 64-bit
• Windows 11

For a complete list of supported, certified and tested operating systems, plus additional details and links to relevant web sites, see the Operating System Interoperability Guide: https://lenovopress.lenovo.com/osig#support=all

The shipping (cardboard packaging) dimensions of the SE100 are as follows:

Node without expansion kit

• Height: 183 mm
• Width: 338 mm
• Depth: 460 mm

Node with expansion kit

• Height: 223 mm
• Width: 494 mm
• Depth: 576 mm

Enclosure

• Height: 225 mm
• Width: 587 mm
• Depth: 998 mm

Summary of the environmental specifications of server. Depending on the model, some features might not be available, or some specifications might not apply.

Topics in this section:

• Acoustical noise emissions
• Ambient temperature management
• Acoustic modes
• Acoustical noise emissions
• Ambient temperature management
• Environment
• Shock and vibration
• Replacement port dust covers
• Thermal pad
• Coin battery

Acoustical noise emissions

The server has the following acoustic noise emissions declaration:

• Sound power level (L_WAd)
  • Idling:
    • Minimum: 4.2 Bel
    • Typical: 4.1 Bel
    • GPU : 4.1 Bel
  • Operating profile 1:
    • Minimum: 4.2 Bel
    • Typical: 4.1 Bel
    • GPU : 4.1 Bel
  • Operating profile 2:
    • Minimum: 5.0 Bel
    • Typical: 4.9 Bel
    • GPU : 5.0 Bel
• Sound pressure level (L_pAm):
  • Idling:
    • Minimum: 25.3 dBA
    • Typical: 25.7 dBA
    • GPU: 25.3 dBA
  • Operating profile 1:
    • Minimum: 25.3 dBA
    • Typical: 25.9 dBA
    • GPU : 25.3 dBA
  • Operating profile 2:
    • Minimum: 34.3 dBA
    • Typical: 34.1 dBA
    • GPU : 33.9 dBA

Note:

• These sound levels were measured in controlled acoustical environments according to procedures specified by ISO7779 and are reported in accordance with ISO 9296. Operating profile 1 is represented by 50% CPU TDP. Operating profile 2 is represented by 100% CPU TDP or 70%/30% storage write/read or 100% GPU. Testing was conducted at 23°C ± 2°C to align with ISO7779.
• The declared acoustic sound levels are based on the specified configurations, which may change depending on configuration/conditions.
  • Minimum configuration: Intel Ultra5 processors, 2x 8GB DDR5 CSODIMMs, 1x SATA M.2 boot drive.
  • Typical configuration: Intel Ultra7 processors, 2x 32GB DDR5 CSODIMMs, 1x 480GB NVMe M.2 boot drives, 2x 1.92TB NVMe storage M.2 drives.
  • GPU configuration: Intel Ultra7 processors, 2x 32GB DDR5 CSODIMMs, 1x 480GB NVMe M.2 boot drives, 1x 960GB NVMe storage M.2 drives, 1x Nvida RTX2000E ada GPU
• Government regulations (such as those prescribed by OSHA or European Community Directives) may govern noise level exposure in the workplace and may apply to you and your server installation. The actual sound pressure levels in your installation depend upon a variety of factors, including the number of racks in the installation; the size, materials, and configuration of the room; the noise levels from other equipment; the room ambient temperature, and employee's location in relation to the equipment. Further, compliance with such government regulations depends on a variety of additional factors, including the duration of employees' exposure and whether employees wear hearing protection. Lenovo recommends that you consult with qualified experts in this field to determine whether you are in compliance with the applicable regulations.

Ambient temperature management

ThinkEdge SE100 (Type 7DGR) supports most of the configurations operating at temperature of 45°C or lower. Adjust ambient temperature when specific components are installed:

• The following components can operate at temperature of 45°C or lower and require proper ambient temperature and redundant cooling by the fans to prevent performance degradation:

  • When one of the following components is installed, keep ambient temperature lower than 40°C for proper operation. When the ambient temperature is over 40°C, performance degradation might occur.
    • NVMe M.2 storage drives
  • When one of the following components is installed, keep ambient temperature lower than 35°C for proper operation. When the ambient temperature is over 35°C, performance degradation might occur.
    • NVMe M.2 boot drives
• The following components can operate at temperature of 35°C or lower and require proper system cooling with N+1 fan redundancy.
  • GPU adapter

Acoustic modes

The SE100 supports different acoustic modes, which optimize the operation of system fans to lower the overall noise level of the server. This is supported on configurations without PCIe expansion kit.

Base node:

The server supports three acoustic modes with different acoustic performance.

• Disabled: The server operates at default fan speeds.
• Mode 1: The operation of system fans is optimized to lower the overall noise level of the server.
  • Mode 1 supports ambient temperature lower than 35°C,otherwise system will operate at default fan speed.
  • Performance degradation may occur at heavy workloads.
• Mode 2: The operation of system fans is optimized to lower the overall noise level of the server further than Mode 1.
  • Mode 2 supports ambient temperature lower than 35°C,otherwise system will operate at default fan speed.
  • Performance degradation may occur at heavy workloads.

To change the acoustic mode, enter the Setup Utility and go to System settings > Operating Modes > Custom Mode > Acoustic mode.

When mounted onto 1U3N enclosure:

The server supports three acoustic modes with different acoustic performance.

• Disabled: The server operates at default fan speeds.
• Mode 1: The operation of system fans is optimized to lower the overall noise level of the server.
  • Mode 1 supports ambient temperature lower than 35°C,otherwise system will operate at default fan speed.
  • Performance degradation may occur at heavy workloads.
• Mode 2: The operation of system fans is optimized to lower the overall noise level of the server further than Mode 1.
  • Mode 2 supports ambient temperature lower than 35°C,otherwise system will operate at default fan speed.
  • Performance degradation may occur at heavy workloads.

To change the acoustic mode, enter the Setup Utility and go to System settings > Operating Modes > Custom Mode > Acoustic mode.

Acoustical noise emissions

When server is in the enclosure has the following acoustic noise emissions declaration:

• Sound power level (L_WAd)
  • Idling:
    • 1U3N: 5.6 Bel
    • 1U2N: 4.5 Bel
  • Operating profile 1:
    • 1U3N: 5.6 Bel
    • 1U2N: 5.6 Bel
  • Operating profile 2:
    • 1U3N: 6.3 Bel
    • 1U2N: 6.3 Bel
• Sound pressure level (L_pAm):
  • Idling:
    • 1U3N: 39.7 dBA
    • 1U2N: 28.4 dBA
  • Operating profile 1:
    • 1U3N: 39.8 dBA
    • 1U2N: 39.4 dBA
  • Operating profile 2:
    • 1U3N: 46.1 dBA
    • 1U2N: 46.6 dBA

Note:

• These sound levels were measured in controlled acoustical environments according to procedures specified by ISO7779 and are reported in accordance with ISO 9296. Operating profile 1 is represented by 50% CPU TDP. Operating profile 2 is represented by 100% CPU TDP or 70%/30% storage write/read or 100% GPU. Testing was conducted at 23°C ± 2°C to align with ISO7779.
• The declared acoustic sound levels are based on the specified configurations, which may change depending on configuration/conditions.
  • 1U3N configuration (3 nodes installed in enclosure with same configuration as following) :
    • Intel Ultra7 processors, 2x 32GB DDR5 CSODIMMs, 1x 480GB NVMe M.2 boot drive, 2X 1.92TB NVMe M.2 storage drive.
  • 1U2N configuration (1 node installed in enclosure with configuration as following) :
    • Intel Ultra7 processors, 2x 32GB DDR5 CSODIMMs, 1x 480GB NVMe M.2 boot drives, 1x 960GB NVMe storage M.2 drives, 1x Nvida RTX2000E ada GPU.
• Government regulations (such as those prescribed by OSHA or European Community Directives) may govern noise level exposure in the workplace and may apply to you and your server installation. The actual sound pressure levels in your installation depend upon a variety of factors, including the number of racks in the installation; the size, materials, and configuration of the room; the noise levels from other equipment; the room ambient temperature, and employee's location in relation to the equipment. Further, compliance with such government regulations depends on a variety of additional factors, including the duration of employees' exposure and whether employees wear hearing protection. Lenovo recommends that you consult with qualified experts in this field to determine whether you are in compliance with the applicable regulations.

Ambient temperature management

ThinkEdge SE1001U2N and 1U3N Enclosure (Type 7DGV) supports most of the configurations operating at temperature of 35°C or lower. Adjust ambient temperature when specific components are installed:

• The following components can operate at temperature of 35°C or lower and require proper ambient temperature and redundant cooling by the fans to prevent performance degradation:

  • When one of the following components is installed, keep ambient temperature lower than 30°C for proper operation. When the ambient temperature is over 30°C, performance degradation might occur.
    • NVMe M.2 boot drives
• The following components can operate at temperature of 35°C or lower and require proper system cooling with N+1 fan redundancy.
  • GPU adapter

The following table indicates what environmental conditions (ambient temperature) are supported with supported options, such as: memory, the M.2 drives and GPUs.

The following table indicates what environmental conditions (ambient temperature) are supported by enclosure 1U2N with supported options, such as: memory, the M.2 drives and GPUs.

The following table indicates what environmental conditions (ambient temperature) are supported by enclosure 1U3N with supported options, such as: memory, the M.2 drives and GPUs.

Environment

ThinkEdge SE100 complies with ASHRAE Class A4 specifications. System performance may be impacted when operating temperature is outside AHSARE A4 specification or fan failed condition outside A2 Specification. ThinkEdge SE100 is supported in the following environment:

• Air temperature:
  • Operating
    • ASHARE Class A2: 10°C to 35°C (50°F to 95°F); the maximum ambient temperature decreases by 1°C for every 300 m (984 ft) increase in altitude above 900 m (2,953 ft).
    • ASHARE Class A3: 5°C to 40°C (41°F to 104°F); the maximum ambient temperature decreases by 1°C for every 175m (574 ft) increase in altitude above 900 m (2,953 ft).
    • ASHARE Class A4: 5°C to 45°C (41°F to 113°F); the maximum ambient temperature decreases by 1°C for every 125m (410 ft) increase in altitude above 900 m (2,953 ft).
  • Server off: 5°C to 45°C (41°F to 113°F)
• Maximum altitude: 3,050 m (10,000 ft)
• Relative Humidity (non-condensing):
  • Operating: Operating: 8% to 90%, maximum dew point: 24°C (75.2°F)
  • Shipment/storage: 8% to 90%, maximum dew point: 27°C (80.6°F)
  • Non-operating (unpacked) storage can pass the following condition: 5% to 95% at 38.7°C (101.7°F) maximum dry-bulb temperature for 48 hrs.
• Particulate contamination
  • ThinkEdge SE100complies with IP50 Ingress Protection per ANSI/IEC60529-2020 Degrees of Protection Provided by Enclosures (IP Code).

Note: PCIe expansion kit installed with your server does not comply with IP50 standard.

Shock and vibration

The following information is a summary of the shock and vibration specifications of the server. Depending on the model, some features might not be available, or some specifications might not apply.

Replacement port dust covers

ThinkEdge SE100 complies with IP50 Ingress Protection.

To reduce the impact of dust in your environment the optional dust covers for all front I/O ports are available. If needed, you can order replacement covers. Ordering information is listed in the following table.

Thermal pad

The CPU / DIMM / M.2 SSD need contact with thermal pad for thermal conductivity cooling purpose.

• If thermal pads get damage or detached, the recommendation is to replace with new pads to avoid impact to the cooling behavior.
• If a replacement or addition with different brand or different form factor of components such as DDR or M.2 SSD, the recommendation is to replace with new pads to avoid impact to the cooling behavior.

Ordering information is listed in the following table.

Coin battery

Ordering information for coin battery field upgrades are listed in the following table.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The SE100 conforms to the following standards:

• ANSI/UL62368-1
• IEC 62368-1 (CB Certificate and CB Test Report)
• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 7, Class A
• CSA C22.2 No. 62368-1
• CISPR 32, Class A, CISPR 35
• Argentina IEC 62368-1: 2018
• Japan VCCI, Class A
• Taiwan BSMI CNS15936, Class A; CNS15598-1; Section 5 of CNS15663
• CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55035, EN61000-3-2, EN61000-3-3, (EU) 2019/424, and EN IEC 63000 (RoHS))
• Korea KN32, Class A, KN35
• Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS)
• Russia, Belorussia and Kazakhstan, EAC: TP TC 004/2011 (for Safety); TP TC 020/2011 (for EMC)
• EAC Russia, Belorussia and Kazakhstan, TR CU 020/2011 and TR CU 004/2011
• Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1
• UL Green Guard, UL2819
• China CCC certificate, GB17625.1; GB4943.1; GB/T9254.1
• China CECP certificate, CQC3135
• China CELP certificate, HJ 2507-2011
• Japanese Energy-Saving Act
• Mexico NOM-019
• TUV-GS (EN62368-1, and EK1-ITB2000)
• India BIS 13252 (Part 1)
• Germany GS
• Brazil INMETRO
• South Africa NRCS LOA
• Ukraine UkrCEPRO
• Morocco CMIM Certification (CM)
• EU2019/424 Energy Related Product (ErP Lot9)

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

The SE100 supports installation in a rack when mounted in either the 1U2N Enclosure or the 1U3N Enclosure. See Mounting options for details.

The following table lists the supported rack cabinets.

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

The following table lists the supported KVM consoles.

The following table lists the available KVM switches and the options that are supported with them.

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. VTT Edge: ThinkEdge SE100 - Efficiency Redefined for Edge AI - April 2025
   2025-04-23 | 60 minutes | Employees Only
   Details
   VTT Edge: ThinkEdge SE100 - Efficiency Redefined for Edge AI - April 2025



   In this session Sophia Li, ThinkEdge Product Manager, presents the key highlights and value proposition of the AI-ready ThinkEdge SE100. The ThinkEdge SE100 delivers robust performance in space constrained environments and can evolve from a base device to a flexible, GPU-optimized edge computing solution.

   Tags: Artificial Intelligence (AI), ThinkEdge

   Published: 2025-04-23
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVEDG219
2. Partner Technical Webinar - ThinkEdge Update
   2025-03-31 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - ThinkEdge Update



   In this 60-minute replay, Chris Laffey and Don Fisher from Lenovo ThinkEdge presented an update on the ThinkEdge portfolio. Chris went through the portfolio highlighting the new SE100 and the transition from SE350 to SE350 v2 and SE360 v2. Don closed describing the use case with IMSA sports car racing.

   Tags: Server

   Published: 2025-03-31
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 032825
3. Lenovo Edge Sales Certification Assessment
   2025-03-31 | 45 minutes | Employees and Partners
   Details
   Lenovo Edge Sales Certification Assessment



   This test will assess your understanding of the content in this learning path. Completing the courses and the assessment are required to earn the Lenovo Edge Sales Certification.

   Tags: Server

   Published: 2025-03-31
   Length: 45 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: LENA-EDG-125A
4. Family Portfolio Edge Servers Powered by Intel
   2025-02-28 | 25 minutes | Employees and Partners
   Details
   Family Portfolio Edge Servers Powered by Intel



   This course describes the Edge servers, such as the Lenovo ThinkEdge SE350 V2, SE360 V2, SE100 and ThinkEdge SE450, that are used at the edge of an IoT environment and may be part of an edge solution. Solutions such as those using software from Scale Computing typically use more traditional Lenovo servers.

   After completing this course, you will be able to list the edge solutions in the Lenovo portfolio, describe the features of each solution and determine which solution is best suited to a specific environment.

   Tags: Lowdown2025ep4, Server, ThinkEdge

   Published: 2025-02-28
   Length: 25 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW2510r3
5. Q4 Solutions Launch ThinkEdge SE100 Edge Server Update Quick Hit
   2025-02-27 | 4 minutes | Employees and Partners
   Details
   Q4 Solutions Launch ThinkEdge SE100 Edge Server Update Quick Hit



   This Quick Hit covers the Lenovo announcement of the ThinkEdge SE100 edge server. The Lenovo ThinkEdge SE100 was designed to be a powerful and efficient server for use at the edge. It features the Intel® Core Ultra processor, and is available with or without an expansion module. The expansion module accommodates an NVIDIA GPU, making this compact server ideal for AI at the edge.

   Tags: Artificial Intelligence (AI), Server, Storage, ThinkEdge, XClarity

   Published: 2025-02-27
   Length: 4 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW2510r3a
6. VTT AI & Edge: Workload Consolidation and Converging Technologies
   2025-02-13 | 72 minutes | Partners Only
   Details
   VTT AI & Edge: Workload Consolidation and Converging Technologies



   Please join Trent Richardson, Edge Solution Specialist and Alexander "Doc" Docherty, Senior Sales Engineer as they speak to us.

   Topics in this session will include:

   • Digital transformation across verticals
   • Consolidating and future proofing for AI

   Tags: Artificial Intelligence (AI), Business solutions, Technical Sales, ThinkEdge

   Published: 2025-02-13
   Length: 72 minutes


   Start the training:
   Partner link: Lenovo Partner Learning


   Course code: DVAI213
7. VTT AI & Edge: Workload Consolidation and Converging Technologies
   2025-02-13 | 80 minutes | Employees Only
   Details
   VTT AI & Edge: Workload Consolidation and Converging Technologies



   Please join Trent Richardson, Edge Solution Specialist and Alexander "Doc" Docherty, Senior Sales Engineer as they speak to us.

   Topics in this session will include:

   • Digital transformation across verticals
   • Consolidating and future proofing for AI
   • Lenovo Resources

   Tags: Artificial Intelligence (AI), Business solutions, Technical Sales, ThinkEdge

   Published: 2025-02-13
   Length: 80 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVAI212
8. Lenovo Data Center Technical Sales Certification Exam Study Guide
   2025-02-12 | 10 minutes | Employees and Partners
   Details
   Lenovo Data Center Technical Sales Certification Exam Study Guide



   This guide includes information to help candidates prepare and register for the Data Center Technical Sales practice and certification exams.

   Tags: DataCenter Products

   Published: 2025-02-12
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: LENU-322C-SG
9. Lenovo Data Center Sales Certification Exam Study Guide
   2025-02-12 | 10 minutes | Employees and Partners
   Details
   Lenovo Data Center Sales Certification Exam Study Guide



   This guide includes information to help candidates prepare and register for the Data Center Sales practice and certification exams.

   Tags: DataCenter Products

   Published: 2025-02-12
   Length: 10 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: LENU-122C-SG
10. Partner Technical Webinar - SE350 Migration Strategy
    2024-11-04 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - SE350 Migration Strategy



    In this 60-minute webinar Chris Laffy, our Senior Product Line Manager, shares his extensive insights and ideas on migration strategies from the original SE350 to its successors.

    Tags: DataCenter Products, ThinkEdge

    Published: 2024-11-04
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 102524
11. VTT: Edge - The SE350 EOL is Coming, Prepare Yourself and Your Customer September 2024
    2024-09-10 | 60 minutes | Employees Only
    Details
    VTT: Edge - The SE350 EOL is Coming, Prepare Yourself and Your Customer September 2024



    As of March 2025, the Lenovo ThinkEdge SE350 will be EOL. Join Geoff Hunt and Chris Laffey as they discuss how to help your ThinkEdge SE350 customers transition to other offerings, with a special focus on ThinkEdge SE350 V2 and SE360 V2. Topics will include:
    •Positioning the SE350 V2 and SE360 V2 as alternates for the EOL SE350
    •A technical view of the generational differences

    Tags: Technical Sales, ThinkEdge

    Published: 2024-09-10
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG215
12. Think AI Weekly: Lenovo Validated Design for Public Safety and Security Edge AI
    2024-09-05 | 60 minutes | Employees Only
    Details
    Think AI Weekly: Lenovo Validated Design for Public Safety and Security Edge AI



    In this session a panel from the Lenovo ISG/IDG ThinkEdge Team discuss vertical solutions enabled by edge computing. Alejandro Perez, Trent Richardson, and Chris Arenas focus on the Lenovo Validated Design for Public Safety and Security while reviewing the process and importance of Lenovo Validated Designs for the Edge

    Tags: Artificial Intelligence (AI), ThinkEdge

    Published: 2024-09-05
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DTAIW117
13. VTT Edge: Lenovo Validated Design for Public Safety and Security Edge & AI July 2024
    2024-08-05 | 60 minutes | Employees Only
    Details
    VTT Edge: Lenovo Validated Design for Public Safety and Security Edge & AI July 2024



    The Lenovo ThinkEdge Team is collaborating with eco-system partners to design and validate Edge AI solutions across verticals. Join this session to learn about these efforts and the architecture of the first Lenovo Validated Design for Public Sector Safety and Security. The session will cover the following topics:
    •Overview of the Lenovo Validated Designs (LVD) for Vertical Edge
    •Public Sector Safety and Security LVD
    •Business Key drivers and solution benefits
    •Architecture and Technology Overview
    •Relevant use cases
    •Components and sizing details
    •Validation results and pricing model

    Tags: Artificial Intelligence (AI), Technical Sales, ThinkEdge

    Published: 2024-08-05
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG214
14. Partner Technical Webinar - ThinkEdge Portfolio
    2024-08-02 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - ThinkEdge Portfolio



    July 26, 2024 - Lenovo SA's (Alex Docherty, Marcus White, and Eugene Grandberry) discuss strategy around the Thinkedge Portfolio.

    Tags: ThinkEdge

    Published: 2024-08-02
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 072624
15. VTT Edge: Lenovo Customer Solution for ENOC Filling Stations and Retail June 2024
    2024-06-10 | 45 minutes | Employees Only
    Details
    VTT Edge: Lenovo Customer Solution for ENOC Filling Stations and Retail June 2024



    Join Massimo (Max) Angelucci, Lenovo Solution Architect, and Abdlkareem (AK) Alhawajreh, Lenovo Client Account Manager, as they discuss the journey of the sale, the customer business, and their challenges. They cover the considerations and decision points when architecting the solution and why the customer chose Lenovo Edge.

    Tags: Oil and Gas, Retail, ThinkEdge

    Published: 2024-06-10
    Length: 45 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG213
16. Lenovo Data Center Product Portfolio
    2024-05-29 | 20 minutes | Employees and Partners
    Details
    Lenovo Data Center Product Portfolio



    This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

    Tags: Advanced DataCenter, DataCenter Products, ThinkAgile, ThinkEdge, ThinkSystem

    Published: 2024-05-29
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW1110r7
17. Think AI Weekly: School Safety at the Edge
    2024-05-13 | 60 minutes | Employees Only
    Details
    Think AI Weekly: School Safety at the Edge



    Join Alejandro Perez, ISG/IDG Edge Business Development, Allen Holmes with ISG AI Business Development, and Lauren Allen ISG/IDG Go To Market Strategist as they discuss school security, AI computer vision and Lenovo ThinkEdge School solutions.
    • AI solution capabilities for campus safety
    • Safety solutions with ThinkEdge SE70 and SE450
    • Walkthrough of La Jolla and other use cases

    Tags: Artificial Intelligence (AI), ThinkEdge

    Published: 2024-05-13
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DTAIW103
18. VTT: HCI at the Edge and Dick's Sporting Goods_May 2024
    2024-05-08 | 60 minutes | Employees Only
    Details
    VTT: HCI at the Edge and Dick's Sporting Goods_May 2024



    Join Adam Mandlebloom, ISG SDI Technical Product Manager, and Bryan Maskrey, ISG Technical Sales, as they explore Lenovo HCI solutions at the Edge and how one such solution is being positioned to resolve business challenges at a national retail company, Dick’s Sporting Goods. Topics covered will include
    •Hyperconverged Edge to Cloud today, and looking forward
    •ThinkAgile for AI/ML - Cost effective GPU utilization
    •Local Cluster Management integration
    •Decision points and architecting the solution for Dick’s Sporting Goods

    Tags: Retail, Software Defined Infrastruture (SDI), Technical Sales, ThinkEdge

    Published: 2024-05-08
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG212
19. Business Problems Addressed with Lenovo Data & Analytics Solutions
    2024-01-31 | 20 minutes | Employees and Partners
    Details
    Business Problems Addressed with Lenovo Data & Analytics Solutions



    Data is the quantities, characters, or symbols on which operations are performed by a computer, which is then stored and transmitted in the form of electrical signals and recorded on magnetic, optical, solid state, or mechanical recording media. All different types of organizations rely more and more on their data to gain valuable insights and improve their business. As expected, they will have challenges with gaining this insight. In this course we will discuss those challenges and problems our customers face and describe how Lenovo Data and Analytics Solutions can help customers solve each problem.

    After completing this training, you will be able to define the following common problems for databases and big data and describe how Lenovo can help customers solve each problem: scalability, management, performance, protection, security, knowledge/skill, and technology evolution.

    After completing this training, you will be able to define the following common problems for databases and big data and describe how Lenovo can help customers solve each problem: scalability, management, performance, protection, security, knowledge/skill, and technology evolution.

    Tags: Data & Analytics, SAP, ThinkAgile, ThinkSystem

    Published: 2024-01-31
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSOLP200
20. Family Introduction: Edge Servers
    2024-01-22 | 18 minutes | Employees and Partners
    Details
    Family Introduction: Edge Servers



    This course introduces the concept of edge servers. Edge servers are used at the edge of an IoT environment, where they perform pre-processing of data, and data forwarding to core environments.
    Course Objectives:
    •Describe the Internet of Things (IoT)
    •Define an edge server
    •Discuss edge server features

    Tags: DataCenter Products, Sales, Server, ThinkEdge

    Published: 2024-01-22
    Length: 18 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW1105
21. Basics of the Edge Ecosystem for Sellers
    2023-12-15 | 20 minutes | Employees and Partners
    Details
    Basics of the Edge Ecosystem for Sellers



    The purpose of this learning module is to familiarize Lenovo field sales, inside sales and partners with the Edge ecosystem and how Lenovo fits into the Edge space.

    •Explain the basics of an Edge Ecosystem
    •Articulate the inherent challenges of Edge Computing
    •Present how Lenovo fits in the Edge Ecosystem

    Tags: Artificial Intelligence (AI), Cross-Industry, Sales, ThinkEdge

    Published: 2023-12-15
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF101
22. The 10-minute Edge conversation for Lenovo Sellers
    2023-12-14 | 20 minutes | Employees and Partners
    Details
    The 10-minute Edge conversation for Lenovo Sellers



    The purpose of this course is to enable sellers to have a 10 to 15-minute customer conversation addressing the relevancy of Edge solutions to the customer business.

    Learning Objectives:

    •Prepare for the initial customer conversation
    •Hold a 10-minute Edge Operational Technology (OT) conversation
    •Take the appropriate steps to progress the sale

    Tags: ThinkEdge

    Published: 2023-12-14
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF103
23. Intro to Edge: 3Ws of Edge Computing for Lenovo Sellers
    2023-09-14 | 13 minutes | Employees and Partners
    Details
    Intro to Edge: 3Ws of Edge Computing for Lenovo Sellers



    This course provides fundamental concepts and a learning foundation for those who are new to the data center and to computing at the Edge. It defines where is the Edge, identifies what are the business drivers for edge computing, and discusses why is edge computing important to Lenovo. September 2023

    Tags: DataCenter Products, ThinkEdge

    Published: 2023-09-14
    Length: 13 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF100
24. Lenovo Solutions for the Edge - Who Are the Customers?
    2023-09-14 | 25 minutes | Employees and Partners
    Details
    Lenovo Solutions for the Edge - Who Are the Customers?



    This course is focused on enabling sellers to identify opportunities for Lenovo Edge and Edge AI Solutions. Topics include a general overview of the Lenovo Edge portfolio and recognizing how edge computing can benefit customers.

    Course Objectives:
    •Identify Lenovo Edge Opportunities
    •Recognize how an Edge solution would benefit your customer
    •Provide a general overview of Lenovo solutions at the Edge
    •Identify key points for your customer Edge conversation

    Tags: Artificial Intelligence (AI), Sales, ThinkEdge

    Published: 2023-09-14
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF102

1-10 of 24 courses. Show All

For more information, see these resources:

• ThinkEdge SE100 drivers and support
  https://datacentersupport.lenovo.com/us/en/
• Lenovo ThinkEdge SE100 server product page:
• https://www.lenovo.com/us/en/p/servers-storage/servers/edge/thinkedge-se100/len21te0020
• Interactive 3D Tour of the ThinkEdge SE100:
  https://lenovopress.lenovo.com/#resource_type=interactive-3d-tour&sort=relevance
• ServerProven hardware compatibility:
  https://serverproven.lenovo.com/
• Lenovo Server Options:
  https://serveroption.lenovo.com/
