Lenovo XClarity Controller 3 (XCC3)

Most of the Lenovo ThinkSystem V4 servers contain an integrated service processor, XClarity Controller 3 (XCC3), which provides advanced service-processor control, monitoring, and alerting functions. XCC3 consolidates the service processor functionality, super I/O, video controller, and remote presence capabilities into a single chip on the server system board.

XCC3 is based on an OpenBMC design, using the AST2600 baseboard management controller (BMC) with a dual-core ARM Cortex A7 32-bit RISC service processor running at 1.2 GHz.

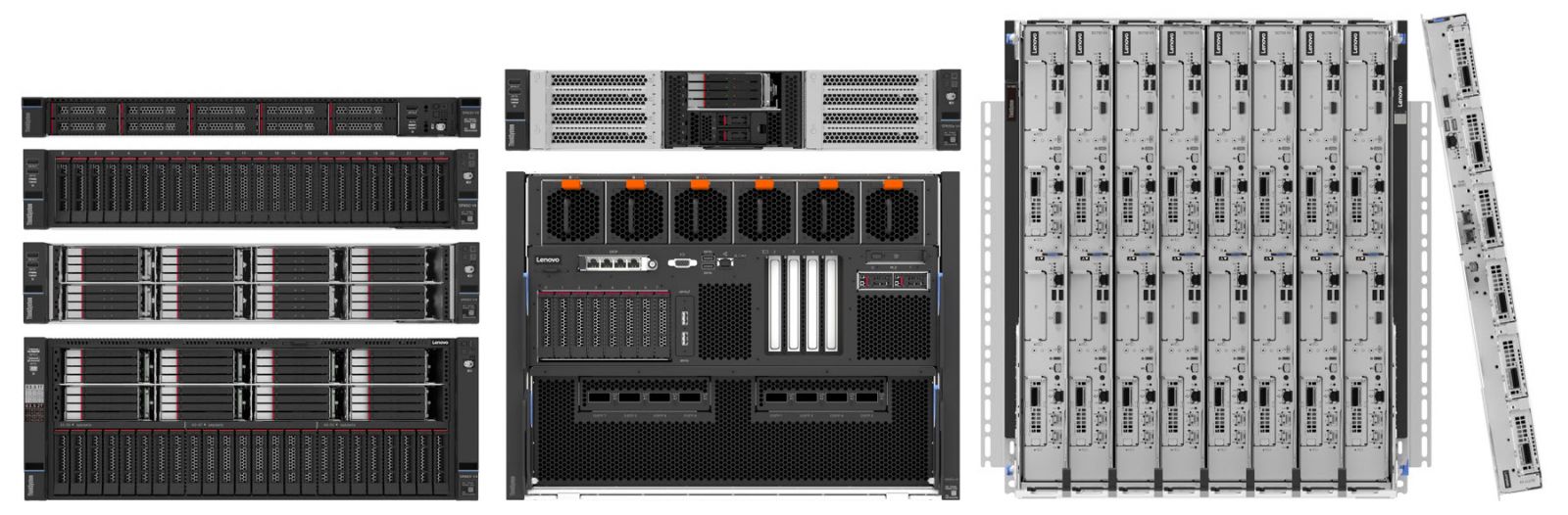

Figure 1. ThinkSystem V4 servers include the XCC3 integrated service processor

You can reduce the Ethernet connections needed for remote management by implementing ThinkSystem OCP 4 to 1 Management Port Consolidation Adapter. For more information see the Management Port Consolidation Adapter section.

XCC3 has the capability to manage and configure multiple XCC3-based servers from the one console. For more information see the Neighbor Group section.

With the System Guard feature, you can monitor hardware inventory for unexpected component changes, and simply log the event, or if needed, you can prevent the servers from booting. For more information, see the System Guard section.

The XClarity Controller uses two network controllers. One network controller is connected to the dedicated management port and the other network controller is connected to the shared port.

If using the Shared port option, there is an adapter that installs in the OCP slot that allows four servers to share the one Ethernet connection providing the possibility to reduce the number of Ethernet connections needed for remote management on some ThinkSystem V3 and ThinkSystem V4 servers. The adapter implements a 5-port Gigabit switch based on the Microchip KSZ9896 switch chip.

Ordering information is listed in the following table.

The adapter is installed in the OCP slot of one server, as shown in the figure below. The adapter connects to the remote management port of up to three other servers via the included (or other) Ethernet cables. The OCP slot in the other three servers can be used for network connectivity, if desired.

Figure 2. Connections to the ThinkSystem OCP 4 to 1 Management Port Consolidation Adapter

The adapter has four RJ45 ports. One port of the adapter connects to the local remote management port and the other three adapter ports connect to the remote management ports of three nearby servers. Either the included short Cat5e cables can be used or customer-supplied Cat5e Ethernet cables can be used.

Configuration notes:

• The adapter is only supported in OCP slot 1
• When the adapter is installed in slot 1, OCP slot 2 is disabled and cannot be used
• The OCP slot in the other three servers can be used for network connectivity, if desired.
• On the server with the adapter installed, in System Setup (F1 at boot), change BMC settings > Network Settings > Network Interface port to Uplink MAC.
• The connected servers can be any mix of servers that support the adapter. For example, they do not all have to be SR630 V4 servers.

For more information on the ThinkSystem OCP 4 to 1 Management Port Consolidation Adapter, see the relevant product guides for the servers supporting this adapter.

The main difference between XCC2 and XCC3 is that XCC3 is OpenBMC-based. OpenBMC is an open-source server management stack that enhances security and frees you from vendor lock-in, all with flexible, modern infrastructure control. XCC3's adoption of OpenBMC, with full Redfish alignment, enables seamless integration with Lenovo or third-party software, which provides a consistent, standardized approach.

Redfish provides the standardized, programmatic interface that makes automation possible and OpenBMC provides a secure, transparent, and flexible open-source platform on which the Redfish interface runs.

Together, OpenBMC and Redfish create a powerful and secure foundation for automating a wide range of IT tasks at the hardware level, from zero touch deployment and configuration to monitoring and firmware updates. This is a fundamental shift towards more efficient, reliable, and secure data center and edge operations.

There are advantages to both Lenovo and customers in the following areas:

• Innovation and Agility
  • Faster adoption of new features from open-source Development
  • Community-driven innovation cycle
• Security and Transparency
  • Transparent development – easier to audit and validate
  • Regular security updates from a global developer community
• Interoperability
  • Standards-based (Redfish, IPMI) for broad compatibility
  • Easier integration into existing management tools
• Scalability
  • Scales from single servers to large fleets
  • Scales for both cloud-native and traditional data center environments

There are two levels of features of XCC3: Standard and Premier.

XCC3 Standard

XClarity Controller 3 Standard level offers the features and capabilities detailed below, and more. For a full list of all features and capabilities, see the following link:
https://pubs.lenovo.com/xcc3/nn1ia_c_standardlevelfeatures

• Gathering and viewing system information and inventory
• Monitoring system status and health
• Alerting and notifications
• Event logging
• Configuring network connectivity
• Configuring security
• Updating system firmware
• Configuring server settings and devices
• Real-time power and thermal utilization monitoring
• Remotely controlling server power (Power on, Power off, Restart)
• Managing FoD activation keys
• Redirecting serial console via IPMI
• Capturing the video display contents when an operating system hang condition is detected
• FIPS 140-2 compliant encryption
• REST API interface
• Blue Screen Capture (OS Failure, in FFDC)
• Embedded Diagnostic Tools
• Call home capability

XCC3 Premier

XClarity Controller 3 Premier adds the following functionality to the Standard features:

• Event Logs
  • Component Replacement Log
• RAS
  • Boot Capture
  • Crash Video Capture
• Alerts
  • Syslog
• Remote Presence
  • Remote KVM
  • Mounting of local client IO/IMG files
  • Quality/Bandwidth Control
  • Virtual Console Collaboration (6 users)
  • Virtual Console Chat
  • Video Record/Replay
  • Virtual Media mounting of remote ISO/IMG files http, Samba & NFS
  • Remote Console Java Client
• Serial Redirection
  • Serial Redirection via SSH-CLI
• Security
  • Single Sign-On
  • Security Key Lifecycle Manager (SKLM/KMIP)
  • IP address blocking
  • Enterprise Strict Security mode (CNSA compliant) (new feature)
  • System Guard
• Power Management
  • Power Capping
  • OOB Performance Monitoring — System Performance metrics
  • Real time Power Graphics
  • Historical Power Counters
  • Temperature Graphics
• Deployment & Configuration
  • Remote OS Deployment
• Firmware Updates
  • Sync with Repository
  • Firmware bundle update
  • Firmware rollback from the local repository in MicroSD card
• Additional management functions
  • Neighbor group management

For details on each of the features, please refer to the various sections in the XCC3 Online User Guide Documentation:
https://pubs.lenovo.com/xcc3/

XCC3 can be accessed remotely via these methods:

• Command-line interface. To access the CLI interface, use SSH to log in to the management processor.
• Web-based interface. Web browser - HTML 5-based browser interface (Java and ActiveX not required) using a responsive design (content optimized for device being used - laptop, tablet, phone) with NLS support. To access the web-based interface, point your browser to the IP address for the management processor. The new intuitive interface includes at-a-glance visualizations and simple access to common system actions. The dashboard is shown in the following figure.

Figure 3. XClarity Controller 3 Web interface dashboard

XCC3 can also be accessed remotely through industry-standard interfaces:

• Representational State Transfer (REST) support
• Redfish support (DMTF compliant) currently with specification v1.17.0 -schema bundle is 2024.3
• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP)
  • Version 3 supported (no SET commands)
  • Version 1 supported, traps only
• Common Information Model (CIM-XML)
• Data Center Manageability Interface (DCMI) Version 1.5

Models of the ThinkSystem V4 server family come with either XCC3 Standard or XCC3 Premier, depending on the server type and the model, as described in the Server support section.

Important considerations:

• If you will be using XClarity One, XClarity Administrator, or XClarity Orchestrator for tasks such as remote control and Bare Metal Operating System Deployment then the XCC3 Premier level must be installed on the server.
• XCC3 Premier license includes hardware license for Lenovo XClarity Energy Manager (LXEM), a power and temperature management solution for data centers.

The following table shows the field upgrades available for models that come with XCC3 Standard.

For configure-to-order (CTO) models, the XCC3 Premier Upgrade feature code listed in the following table is usually selected and included by default in the order. If desired, you can remove this feature code if only the Standard level is required.

The following table shows what level of XCC3 is included with each ThinkSystem V4 server. Supported servers are also detailed at the Lenovo XClarity Controller overview page, https://pubs.lenovo.com/lxcc-overview/.

XCC3 provides a security dashboard which shows an overall security assessment and status of the system. Providing status on:

• BMC Security Events report events asserted by security issues, such as chassis intrusion, PFR detected corruption, System Guard detected hardware inconsistency, security jumper open on planar, etc.
• BMC Security mode provides an overall status of Security Mode compliance.
• BMC Services & Ports enumerate all insecure services/ports enabled but non-compliant with the current Security Mode.
• BMC Certificates list all non-compliant certificates used by XCC3.
• BMC User Accounts provide general suggestions on how to make the account and password management more secure.

The dashboard shows a warning icon if there is any risk in these security areas scanned by XCC3. The detail link under each category also brings the user to the setup page to solve the issues.

Figure 4. XCC3 Security Status dashboard, highlighting a warning on User Accounts

With XCC3-based servers, customers can create a service forwarder that automatically sends service data for any managed device to Lenovo Support using the Call Home function.

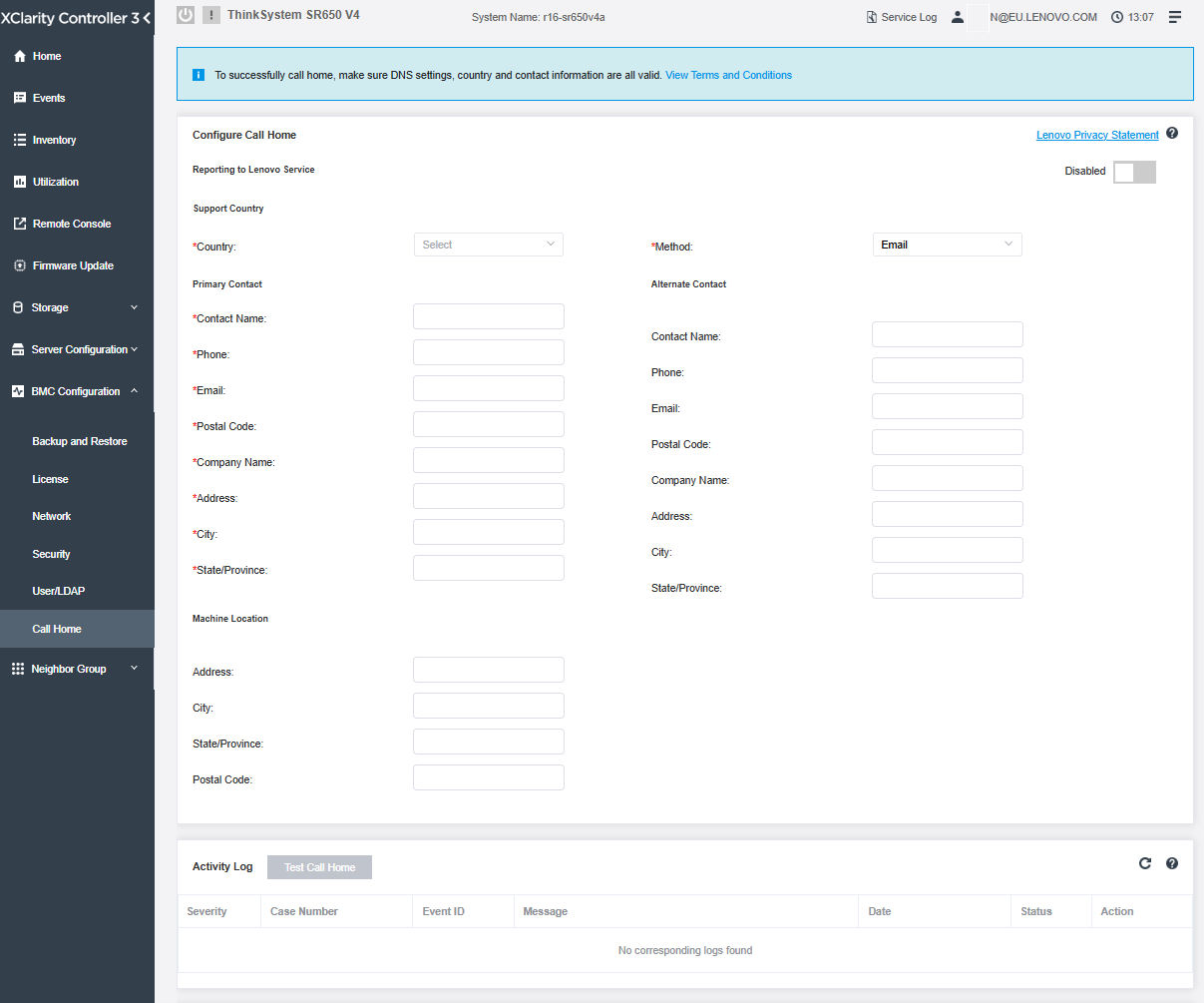

Figure 5. XCC3 Call Home

When enabled, Call Home automatically contacts Lenovo to open a service ticket and sends in service data collected from a managed device whenever that device reports a hardware failure.

Service data that you would typically upload manually to Lenovo Support is automatically sent to the Lenovo Support Center over HTTPS using TLS 1.2 or later.

If the customer is managing their servers with XClarity One, XClarity Administrator or XClarity Orchestrator they can choose to configure centralized Call Home via XClarity One,XClarity Administrator or XClarity Orchestrator, rather than at each XCC3 instance. these XClarity Solutions will additionally provide the capability to view information about service tickets that were manually and automatically submitted to the Lenovo Support Center using Call Home, including the current status and associated service files that were transferred to the Lenovo Support Center, and service tickets that were generated by support services other than Call Home.

For full details see more information at the appropriate links below depending on the XClarity Solution being used for Call home:

• XClarity One (LXC1) working with service and support
• XClarity Administrator (LXCA) working with service and support
• XClarity Orchestrator (LXCO) working with service and support

For details on which events per system will automatically notify support, go to Events and alerts for servers page in the LXCA User Guide, click the link for the specific server, then select submenu entry for XCC events that automatically notify Support.

XCC3 Premier license adds the same features as the XCC 2 Platinum License, as detailed in Features section.

The XCC3 also includes key features which were introduced with the release of XCC2 Platinum, as follows:

• System Guard – Monitor hardware inventory for unexpected component changes, and simply log the event or prevent booting.
• Enterprise Strict Security mode – Enforces FIPS 140-3 level security and enhanced NIST 800-193
• Neighbor Group Feature Group – Enables administrators to manage and synchronize configurations and firmware level across multiple servers.
• XCC3 Service Log – Service tool that provides XCC3 first-failure logs in HTML and JSON format.

For details, see the following sections:

• System Guard
• Enhanced Security Modes
• Neighbor Group
• Service Log

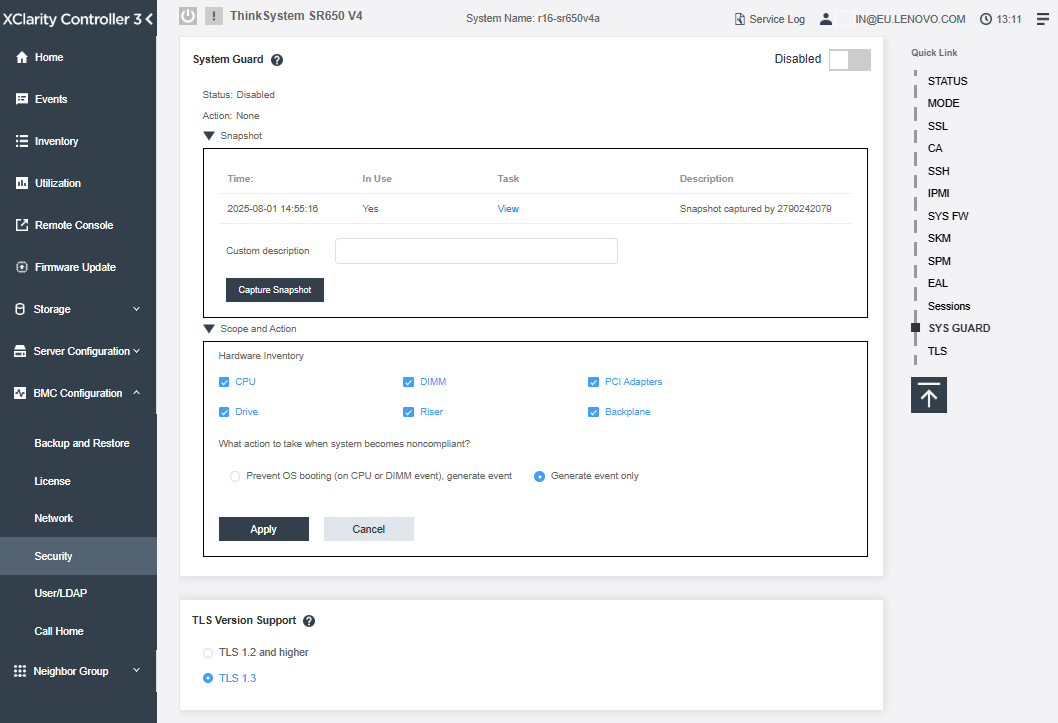

Figure 6. System Guard

User can also take a snapshot at any time even while the feature is disabled. The generation of snapshot takes around one minute. User can select a subset of hardware components to enforce and select a corresponding action to take when deviation is detected.

Deviation detection is executed at server power on (POST) or system reboot. For example, while the OS is still running, if a disk drive is being pulled out and then plugged back in a moment later, System Guard is not going to record the event or take any action. If the extracted disk drive remains absent until next reboot, then System Guard would get in action.

For more information on working with System Guard see System Guard in the XCC3 User Guide.

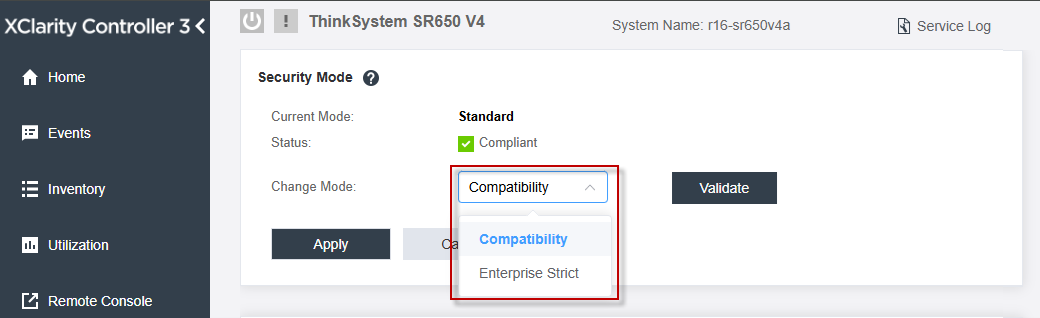

Figure 7. Security Mode in XCC3

Each of the security modes has defined characteristics, as follows:

• Enterprise Strict Security Mode
  • Enterprise Strict Security Mode is the most secure mode.
  • Commercial National Security Algorithm Suite (CNSA) compliant.
  • NIST Compliant.
  • PFS-compliant (Perfect Forward Secrecy).
  • All cryptography algorithms used by BMC are enterprise strict compliant.
  • BMC operates in standard validated mode.
  • Requires enterprise strict grade certificates.
  • Only services that support enterprise strict level cryptography are allowed.
  • Requires Feature on Demand Key to enable.
• Standard Security Mode
  • Standard Mode is the default security mode.
  • NIST Compliant.
  • PFS-compliant (Perfect Forward Secrecy).
  • All cryptography algorithms used by BMC are standard compliant.
  • BMC operates in standard validated mode.
  • Requires standard grade certificates.
  • Services that require cryptography that do not support standard level cryptography are disabled by default.
• Compatibility Security Mode
  • Compatibility Mode is the mode to use when services and clients require cryptography that is not enterprise strict/standard compliant.
  • Non NIST and PFS (Perfect Forward Secrecy) compliant
  • A wider range of cryptography algorithms are supported.
  • When this mode is enabled, BMC is NOT operating in standard-validated mode.
  • Allows all services to be enabled.

For more information on configuring security modes refer to Security Mode in the XCC3 User Guide.

Typically, in the past, XCC could only manage a single server and XClarity Administrator (LXCA) facilitated scalability management to multiple servers. However, if LXC1, LXCA, or LXCO are not deployed in the field, especially for SMB users, each node has to be configured one by one which is an inefficient process.

To counter this scenario, the XCC3 neighbor group feature provides a flexible way of initiating speedy deployment for multiple servers within a local network segment.

Figure 8. XCC2 Neighbor Group (XCC3 has the same content)

The XCC3 neighbor group provides the following capabilities:

• Discover the neighbor nodes located in the same local network segment using Simple Service Discovery Protocol (SSDP) multicast message.
• Monitor the system health, and power status of the neighbor nodes.
• Configure neighbor group in leader node.
• Clone system configuration to multiple members of the neighbor group.
• Initiate concurrent firmware updates to multiple members of the neighbor group.
• The Leader node XCC3 supports a maximum of 200 nodes.

For more information on XCC3 Neighbor Group Management see Neighbor Group Management in the XCC3 User Guide.

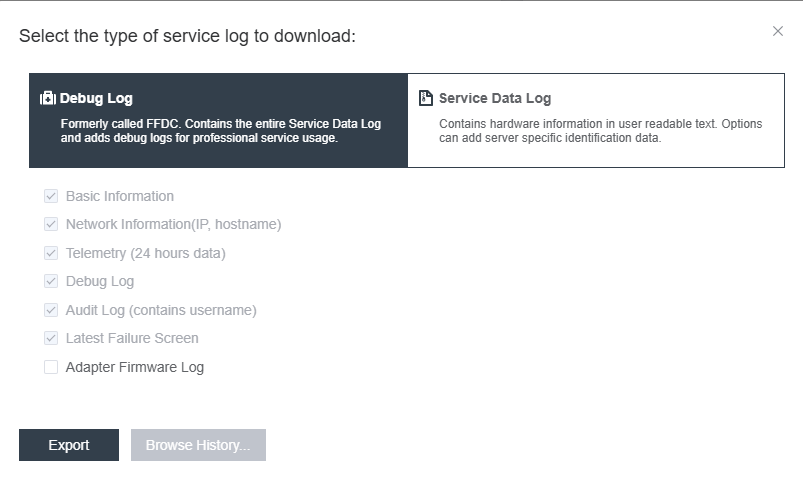

Figure 9. Service log

By default, the service log will contains the following data: system information, system inventory, system utilization, SMBIOS table, sensors reading, events log, FOD key, SLP key, UEFI configuration and XCC3 configuration.

User can also mouse over the Basic Information option and click on the floating window to see some actual data to be exported, as shown in the following figure.

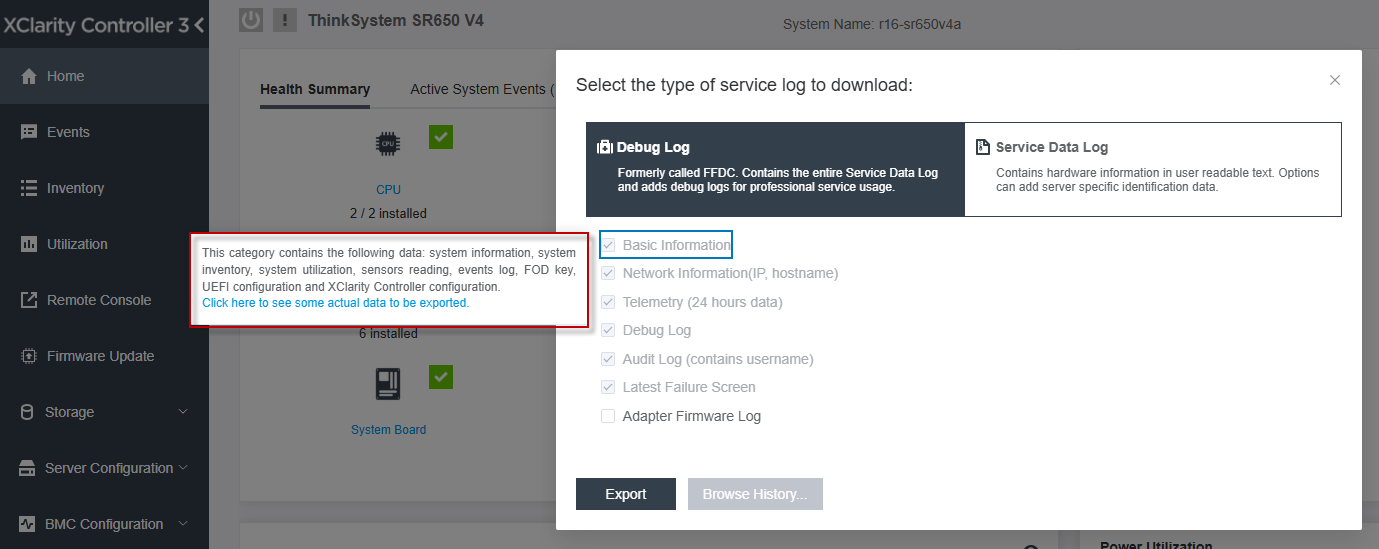

Figure 10. Mouse over additional information option

By clicking to see some actual data provides the user will be presented with a similar view to the following figure.

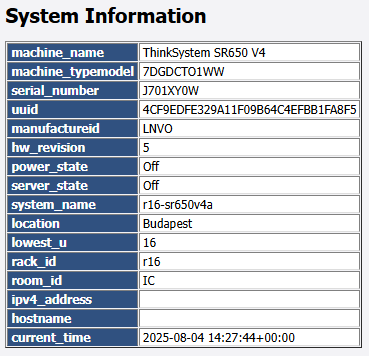

Figure 11. Example of actual data being exported for SR650 V4 via XCC3

While Basic Information is mandatory, user has the option to additionally export the following information:

• Network information (IP, hostname)
• Telemetry (24 hours data)
• Audit log (contains username)
• Latest failure screen

XCC3 provides support for the industry standard Redfish Scalable Platforms Management API. The Redfish API can be used to access XCC3 data and services from applications running outside of XCC3. This allows for easy integration of XCC3 capabilities into Lenovo or 3rd party software. Redfish uses RESTful interface semantics and JSON resource payload to perform system management via the HTTPS protocol.

XClarity Controller 3 currently supports Redfish Specification 1.17.0 and Redfish Schema bundle 2024.3.

Lenovo additionally provides some Python and PowerShell sample scripts to use Redfish. These are available as open-source code on Lenovo’s Github page http://github.com/lenovo/

• Lenovo Python Redfish Scripts: https://github.com/lenovo/python-redfish-lenovo
• Lenovo PowerShell Redfish Scripts: https://github.com/lenovo/powershell-redfish-lenovo

These scripts utilize Redfish API to manage Lenovo ThinkSystem servers. Currently, the scripts support hardware/firmware inventory, basic management of configuration and control, firmware updates, and alerts/eventing. The scripts can be used both remotely (out-of-band to the XCC3 Network) and locally (in-band on the ThinkSystem server, connecting to the XCC3 local host Network interface).

Other open-source tools that support Redfish include Ansible, which added support for Redfish starting with version 2.7, in the form of three modules for Remote Hardware Management. These modules are tested on Lenovo ThinkSystem servers:

• redfish_facts: https://docs.ansible.com/ansible/latest/modules/redfish_facts_module.html
• redfish_command: https://docs.ansible.com/ansible/latest/modules/redfish_command_module.html
• redfish_config: https://docs.ansible.com/ansible/latest/modules/redfish_config_module.html

See the Lenovo publications site for more information on XCC3 REST API:
https://pubs.lenovo.com/xcc3-restapi/

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. Understanding Lenovo XClarity
   2025-06-11 | 8 minutes | Employees and Partners
   Details
   Understanding Lenovo XClarity



   This course is designed to give Lenovo sales and partner representatives an understanding of Lenovo XClarity.

   Learning Objectives:

   •Identify the different components of XClarity
   •Describe the primary benefits to customers
   •Define its core features

   Tags: XClarity

   Published: 2025-06-11
   Length: 8 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo 360 Learning Center


   Course code: SXXW2118r2

For more information, consult these resources:

• XClarity product web page
• XClarity Controller 3 online documentation
• Service Enablement and Port Assignment
• XCC3 Redfish REST API documentation
• XCC Overview videos:
  • Playlist item 6: Lenovo XClarity Mobile App demo
  • Playlist item 10: Lenovo XClarity Controller Overview
• XClarity One Online Documentation
• XClarity Administrator Online Documentation
• XClarity Orchestrator Online Documentation
• XClarity Systems Management Documentation
• Lenovo Online Documentation
