Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays

Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays are an all-QLC flash storage system, available as unified, that is designed to provide performance, simplicity, capacity, security, and high availability for medium-sized enterprises. Powered by the ONTAP storage management software, the DG5200 and DG7200 deliver enterprise-class storage management capabilities with a wide choice of host connectivity options and enhanced data management features. The DG5200 and DG7200 are a perfect fit for a wide range of enterprise workloads, including artificial intelligence, big data and analytics.

Lenovo ThinkSystem DG5200 and DG7200 models are 2U rack-mount controller enclosures that include two controllers, 128 GB RAM and 16 GB battery-backed NVRAM (64 GB RAM and 8 GB NVRAM per controller), and 24 SFF hot-swap drive bays (2U24 form factor). Controllers provide universal 10/25/100 GbE NAS/iSCSI or 16/32/64 Gb Fibre Channel (FC) ports, or 10/25 GbE RJ-45 ports for host connectivity, depending on configuration.

A single ThinkSystem DG5200 Storage Array scales out to 72 QLC SSDs with the attachment of two Lenovo ThinkSystem DG242N 2U24 NVMe Expansion Enclosure. The DG7200 scales up to 120 QLC SSDs per Storage Array. Both systems can be combined with other DM and DG systems to create a clustered system.

Figure 1. Lenovo ThinkSystem DG7200 Storage Array

Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays offer end-to-end QLC (quad-level cell) Flash drive storage solution.

QLC increases flash storage density and reduces costs because it stores four bits per cell compared to Triple-level cell (TLC) drives which store three bits per cell.

QLC is ideal for replacing hard drive technology because it offers better performance, comparable cost, and better TCO due to increased density and lower power consumption.

The DG5200 is position for capacity and performance. The DG7200 is position for best QLC performance.

Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays offer the following key features and benefits:

• Available as a Unified storage (File, Block, Object) platform.
• Unified platform options are available with either the Essentials or Complete software feature offerings.
• Compact QLC Flash storage system delivering high-performance and low-latency at an affordable price point, enabling customers of all sizes to enhance their analytics and AI deployments and accelerate applications’ access to data.
• All-flash array capabilities to meet the demand for higher speed storage and provide higher IOPs and bandwidth with lower power usage and total cost of ownership than hybrid or HDD-based solutions.
• All-flash storage with dual active/active controller configurations for high availability and performance.
• A rich set of storage management functions available, including snapshots, volume copy, quality of service, thin provisioning, compression, deduplication, encryption, disk-based backup, application- and virtual machine-aware backup, quick data recovery, clustering, synchronous replication, and asynchronous replication.
• Improved performance and data protection with RAID-DP and RAID-TEC, as well as support for traditional RAID 4.
• Flexible host connectivity to match diverse client needs with support for unified NAS and SAN storage protocols, including 10/25/40/100 GbE NAS and iSCSI and 16/32/64 Gb Fibre Channel connectivity.
• NVMe drive-side connectivity with multipathing with up to 24x 2.5-inch small form factor (SFF) drives in the controller enclosure and expansion enclosure.
• Optional licensed functions, object storage tiering (FabricPool).
• Scale-out clustering of up to 4 ThinkSystem DG Series and DM Series storage systems for NAS and SAN connectivity.
• Intuitive, web-based GUI for easy system setup and management.
• Designed for 99.9999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, and non-disruptive firmware upgrades.

Lenovo ThinkSystem DG5200 and DG7200 support the 2.5-inch QLC SSDs and all drives are dual-port and hot-swappable. Also supporting DG242N 2U24 NVMe Expansion Enclosure and drives which are designed to be added dynamically, which helps to quickly and seamlessly respond to ever-growing capacity demands.

The DG5200 and DG7200 offer high levels of system and data availability with the following features and for the following workloads:

• Dual-active controllers (high availability pair) with automatic load balancing and failover
• Mirrored, battery-backed controller NVMEM, 8 GB per controller, 16 GB per system
• Dual-port QLC SSDs with automatic drive failure detection and rebuild
• Redundant, hot-swappable and customer replaceable hardware components, including transceivers, controllers, I/O modules, power supplies, and drives
• Automated failover for the data path between the host and the drives with multipathing
• Non-disruptive controller and drive firmware upgrades
• Scale-out clustering
• For workloads: ERP, Microsoft Exchange, Data lakes

The following figure shows the components of the controllers for DG5200 and DG7200.

The following table lists the ThinkSystem DG5200 and DG7200 storage systems specifications.

Note: The supported hardware options, software features, and interoperability listed in this product guide are based on the ONTAP software version 9.16.1 or later. For details about specific software releases that introduced support for certain hardware options and software features, refer to the Release notes of the particular software release for the ThinkSystem DG5200 and DG7200 that can be found at:
http://datacentersupport.lenovo.com

* For Category 1 operating system support information, see Lenovo Storage Interoperation Center (LSIC).
** For Category 2 operating system support information, see the latest Category 2 Interoperability Matrix. Go to the Lenovo Storage Interoperation Center (LSIC) home page and scroll down to the Lenovo Information section and click the Download Lenovo 3rd party of interop matrix link.
† For a detailed list of configuration limits and restrictions for a specific version of the software, refer to the Lenovo Data Center Support website:
http://datacentersupport.lenovo.com

Preconfigured and factory-integrated models of the Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays are configured by using the Lenovo Data Center Solution Configurator (DCSC), http://dcsc.lenovo.com

The following table lists the CTO base model for the ThinkSystem DG5200 and DG7200.

The following table lists the feature codes for controller software. The selection here must match the software license selected as described in the Software section. DG Series controller software is available as a Unified offering, supporting SAN, NAS, and Object storage protocols, or as a DG

The following table lists the software options for the ThinkSystem DG5200 and DG7200.

The ThinkSystem DG5200 and DG7200 enclosures ship with two 64GB NVMe controllers. A controller provides interfaces for host connectivity, management, and internal drives, and it runs ONTAP storage management software. Each DG5200 and DG7200 controller enclosure provides 128 GB RAM and 16 GB battery-backed NVMEM (64 GB RAM and 8 GB NVMEM per controller).

Each ThinkSystem DG5200 and DG7200 controller has two interconnect 25 GbE SFP28 ports to cable a directly-connected dual-controller HA pair or for switched cluster interconnect with multiple dual-controller HA pairs. Up to six HA pairs can be combined into a single SAN cluster or up to 12 HA pairs can be combined into a single NAS cluster.

Each DG5200 or DG7200 controller also has the following host interfaces:

• 2x 10GBASE-T RJ-45 ports
• 2x slots for additional host interfaces using HIC adapters; choices of HIC adapters are:
  • 25GbE HIC, with 4x 10/25 GbE SFP28 (DAC cables or SW fiber optic cables, LC)
  • Fibre Channel HIC, with 4x 16/32/64 Gb FC SFP+ host ports (SW fiber optic cables, LC)
    • All HICs require SFPs and optical cables or DAC cables
    • All ethernet SFPs run at posted speed only and do not support dual line rates

Two controllers are required for selection and must have the same HIC adapters installed. The use of a DG242N expansion enclosure requires a 100GbE HIC for connectivity installed in port 1 in each controller.

The following table lists the controllers for the DG5200 and DG7200 Storage Array and supported connectivity options.

• RoCE is not supported for host connections

The following table lists the supported optical and copper cables.

The  Lenovo ThinkSystem DG5200 and DG7200 support attachments of ThinkSystem DG242N 2U24 expansion enclosures. The expansion enclosures can be added to the system non-disruptively.

Configuration note: Two NVMe I/O expansion modules (feature code B73A) are pre-selected by the configurator.

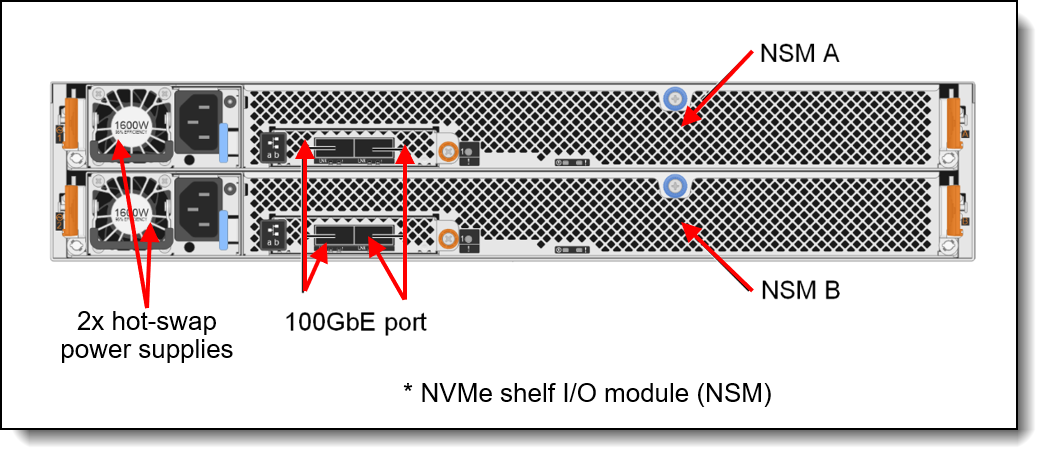

The DG5200 and DG7200 enclosure support direct attachment of one DG242N NVMe expansion enclosure for a total of up to 48 NVMe drives. To connect the DG242N, a 100 GbE HIC (4XC7A97033) in port 1 is required to be installed in each controller for either DG5200 or DG7200 units.

The following table lists ordering information for the NVMe expansion enclosure connectivity options.

The ThinkSystem DG5200 and DG7200 and DG242N enclosures each support up to 24 SFF hot-swap drives, in packs of 2 drives.

The following table lists supported drive packs for the controller and expansion enclosures.

Configuration notes:

Note that the feature code varies, based on the software license Unified Essentials or Unified Complete with Unified.

Feature bundles

Controller software for the DG5200 and DG7200 is available in the following bundles of features:

* Requires the encryption version of ONTAP. See the ONTAP software section
** Not available in PRC

The features are summarized as follows:

• RAID-4, RAID-DP, and RAID-TEC data protection: Provides the flexibility to choose the level of data protection required and helps improve performance and availability with built-in spare capacity and by distributing data across all physical drives in the aggregate, sustaining to up to one (RAID-4), two (RAID-DP), or three (RAID-TEC) concurrent drive failures.
• Thin provisioning: Optimizes efficiency by allocating storage space based on the minimum space required by each application at any given time, so that applications consume only the space they are actually using, not the total space that has been allocated to them, which allows customers to purchase storage they need today and add more as application requirements grow.
• Compression: Provides transparent inline and post-process data compression to reduce the amount of storage that customers need to purchase and manage.
• Deduplication: Performs general-purpose deduplication for removal of redundant data to reduce the amount of storage that customers need to purchase and manage.
• Snapshots: Enables creation of read-only copies of data for backup, parallel processing, testing, and development, and have the copies available almost immediately.
• Encryption: Provides software-based encryption for data at rest for enhanced data security with the traditional drives and embedded key management (requires the encryption-capable version of the ONTAP software).
• Balanced placement: Provides automated workload distribution across the cluster to help increase utilization and performance.
• Dynamic capacity expansion: Allows the capacity of a volume or aggregate to be expanded by adding new physical drives.
• Adaptive Quality of Service: Simplifies operations and maintains consistent workload performance by defining QoS policies and automatically adjusting storage resources to respond to workload changes.
• SnapRestore: Enables quick recovery of data by reverting a local volume or file to its previous state from a particular snapshot copy stored on the file system.
• FlexClone: References snapshot metadata to create writable point-in-time copies of a volume.
• FlexVol: Provides abstraction layer between the logical volume and its physical location in the storage array.
• FlexCache: Speeds up access to data and offloads traffic from heavily accessed volumes for read-intensive workloads by placing frequently used data in cache locally or remotely (closer to the point of client access) and serving the data to the clients directly from cache without accessing the data source.
• SnapMirror asynchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using asynchronous (at specified regular intervals) data transfers over IP communication links.
• SyncMirror data protection: Adds extra level of data protection and availability by mirroring a pair of RAID aggregates.
• Trusted Platform Module (TPM): For encryption enabled systems.  The encryption keys for the onboard key manager (OKM) are no longer stored in the boot device, but instead are stored in the physical TPM for systems so equipped, offering greater security and protection. Moving to the TPM is a nondisruptive process.
• MetroCluster IP: Provides storage system-based clustering with online, real-time data mirroring between the local and remote sites by using synchronous data transfers over IP communication links to deliver continuous availability with zero RPO and near-zero RTO. All storage systems in a MetroCluster IP configuration must be of the same model. New to ONTAP 9.11: MetroCluster with Storage Virtual Machine Disaster Recovery (SVM-DR) can now use a third site for the SVM-DR
• NVMe over TCP Protocol: Enables NVMe over TCP
• Data Protection Optimized (DPO): Increases the amount of concurrent SnapMirror sessions per node, as well as improving SnapMirror performance to the cluster.
• SnapMirror synchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using synchronous (as soon as the data is written to the source volume)
• FlexGroup: Enables a single volume to span across multiple clustered storage arrays to maximize storage capacity and automate load distribution. New to ONTAP 9.11: FlexGroups can now be created as SnapLock volumes.
• SnapVault disk-based storage backup: Enables data stored on multiple systems to be backed up to a central, secondary system quickly and efficiently as read-only snapshot copies.
• SnapCenter: Provides application- and virtual machine-aware backup and restoration of data by using the Snapshots technology and leverages the SnapMirror capabilities of storage systems to provide onsite or offsite backup set mirroring for disaster recovery.
• ONTAP S3: Expands the DG/DM Series unified story and allows customers to manage, block, file, and object data from one interface. Customers can now natively store data in S3 buckets onboard the DG/DM Series.
• SnapMirror S3 : Enables you to protect buckets in ONTAP S3 object stores using familiar SnapMirror mirroring and backup functionality. Requires ONTAP 9.11 or later on both source and destination clusters. Requires the Unified Premium Bundle.
• SnapMirror Cloud: A backup and recovery technology designed for ONTAP users who want to transition their data protection workflows to the cloud. SnapMirror Cloud is an extension to the family of SnapMirror replication technologies. While SnapMirror is frequently used for ONTAP-to-ONTAP backups, SnapMirror Cloud uses the same replication engine to transfer Snapshot copies for ONTAP to S3-compliant object storage backups.
• Multitenant Key Management (MTKM): Provides the ability for individual tenants or storage virtual machines (SVMs) to maintain their own keys through KMIP for NVE. With multitenant external key management, you can centralize your organization’s key management functions by department or tenant while inherently confirming that keys are not stored near the assets. This approach decreases the possibility of compromise.
• Anti-ransomware: Uses workload analysis in NAS (NFS and SMB) environments to proactively detect and warn about abnormal activity that might indicate a ransomware attack. When an attack is suspected, anti-ransomware also creates new Snapshot backups, in addition to existing protection from scheduled Snapshot copies. New to ONTAP 9.11: Optional multi-admin verification to approve administration functions that could result in data loss.

Optional Extended features also available via Feature on Demand (FoD) (see the Extended ONTAP features section)

• FabricPool: FabricPool is a hybrid storage solution that uses an all flash (all SSD) aggregate as the performance tier and an object store as the external capacity tier. Data in a FabricPool is stored in a tier based on whether it is frequently accessed or not. Using a FabricPool helps you reduce storage cost without compromising performance, efficiency, or protection.
• No license is required when tiering to StorageGRID or ONTAP S3.

Extended ONTAP features

FabricPool is an optional extended feature. To obtain this feature license, order the part numbers as listed in the following table.

* Field upgrade only; no factory installation.

The ThinkSystem DG5200 and DG7200 support the following management interfaces:

• Lenovo ThinkSystem Storage Manager, a web-based interface via HTTPS for single-system management or centralized management of the cluster of systems, that runs on the storage system itself and requires only a supported browser (Microsoft Internet Explorer, Google Chrome, or Mozilla Firefox), so there is no need for a separate console or plug-in.
• Command line interface (CLI) via SSH or through serial console.
• Syslog, SNMP, and e-mail notifications.

The Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays and DG242N 2U24 SFF enclosures ship with two redundant hot-swap 1600 W (200-240 V) Platinum AC power supplies, each with an IEC 320-C14 connector.

Each ThinkSystem DG Series enclosure requires the selection of two power cables.

The individually shipped ThinkSystem DG5200, DG7200, and DG242N enclosures come with the ThinkSystem Storage Rack Mount Kit 2U24 listed in the following table.

When the ThinkSystem DM Series enclosures are factory-integrated and shipped installed in a rack cabinet, the rack mount kits that support Ship-in-Rack (SIR) capabilities are derived by the configurator. The SIR-capable rack mount kits are listed in the following table.

The following table summarizes the rack mount kit features and specifications.

* The majority of the enclosure components can be serviced from the front or rear of the enclosure, which does not require the removal of the enclosure from the rack cabinet.
** If a 0U PDU is used, the rack cabinet must be at least 1000 mm (39.37 in.) deep for 2U24 enclosures.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

The Lenovo ThinkSystem DG5200 and DG7200 Unified Storage Arrays controller enclosure has the following dimensions and weight:

• Height: 87 mm (3.4 in.)
• Width with flange: 483 mm (19 in.)
• Width without flange: 447 mm (17.6 in.)
• Depth: 543 mm (21.4 in.)
• Weight (fully configured): 24.6 kg (54.3 lb)

The ThinkSystem DG242N 2U24 SFF enclosure has the following dimensions and weight:

• Height: 87 mm (3.4 in.)
• Width with flange: 483 mm (19 in.)
• Width without flange: 447 mm (17.6 in.)
• Depth: 543 mm (21.4 in.)
• Weight (fully configured): 30.2 kg (66.6 lb)

The ThinkSystem DG5200, DG7200 and DG242N 2U24 SFF enclosures are supported in the following environment:

• Air temperature:
  • Operating: 10 to 35 °C (50 to 95 °F)
  • Non-operating: -40 °C to +70 °C (-40 °F to 158 °F)
  • Maximum altitude: 3050 m (10,000 ft)
• Relative humidity:
  • Operating: 8% to 80% (non-condensing)
  • Non-operating: 10% to 95% (non-condensing)
• Electrical power:
  • DG5200 / DG7200:
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 5.40 A
    • Power load = 1079W (maximum), 826.9W (typical)
  • DG242N:
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 4.11 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 2.05 A
    • Maximum system power load: 390 W
• Heat dissipation:
  • DG5200 / DG7200: 4667 BTU/Hr (maximum), 3037 BTU/Hr (typical)
  • DG242N: 1331 BTU/hour
• Acoustical noise emission:
  • DG5200 / DG7200: 8.0 bels
  • DG242N: 6.4 bels

The DG5200 and DG7200 and expansion enclosure have a  3-year warranty based on the machine type of the system:

• Lenovo ThinkSystem DG5200 enclosure: 7DHY (3-year warranty)
• Lenovo ThinkSystem DG7200 enclosure: 7DHZ (3-year warranty)
• DG242N expansion enclosure: 7DJ9 (3-year warranty)
