Lenovo ThinkAgile HX630 V4 Hyperconverged System

Product Guide

Home
Top

Abstract

The Lenovo ThinkAgile HX630 V4 system are 2-socket 1U systems that feature the 6th Generation Intel Xeon Scalable processors (formerly code named "Granite Rapids"). The ThinkAgile HX630 V4 model is designed for deploying industry-leading hyperconvergence software from Nutanix on Lenovo enterprise platforms. Nutanix brings the benefits of web-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.

The Lenovo ThinkAgile HX630 V4 system delivers fully validated and integrated Lenovo hardware and firmware, certified and preloaded with Nutanix software. In Premier countries it includes ThinkAgile Premier support with one single point of contact for support of the hardware and software.  For Non-Premier countries, hardware support is provided y Lenovo and software support is provided by Nutanix.

This product guide provides essential pre-sales information to understand the ThinkAgile systems, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkAgile HX offerings and consider their use in IT solutions.

Introduction

The Lenovo ThinkAgile HX630 V4 system is a 2-socket 1U system that feature the 6th Generation Intel Xeon Scalable processors (formerly code named "Granite Rapids"). ThinkAgile HX630 V4 models are designed for deploying industry-leading hyperconvergence software from Nutanix on Lenovo enterprise platforms. Nutanix brings the benefits of cloud-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.

The 1U systems is available as:

  • HX630 V4 system for entry systems, VDI, server virtualization, remote office and branch office and private cloud.

ThinkAgile HX630 V4 system delivers fully validated and integrated Lenovo hardware and firmware, certified and preloaded with licensed Nutanix software. They also include ThinkAgile Premier support with one single point of contact for support of the hardware and software

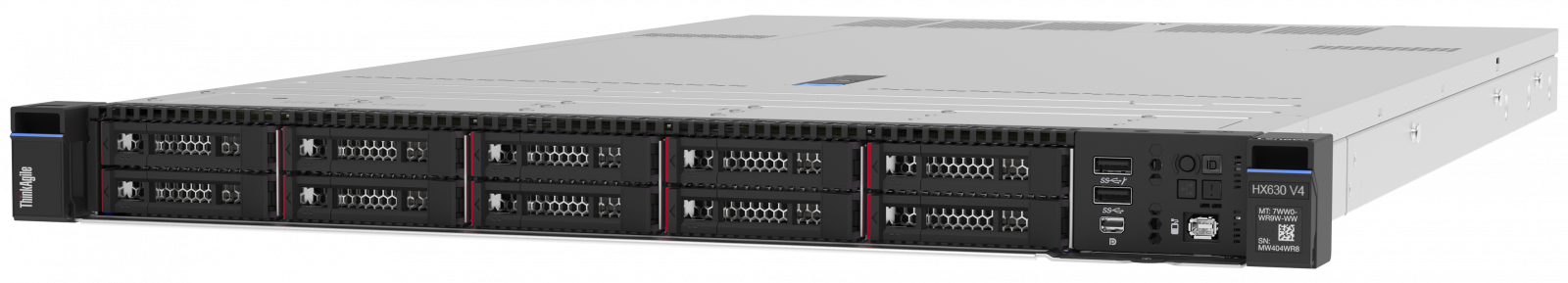

Lenovo ThinkAgile HX630 V4 system with 2.5-inch drive bays
Figure 1. Lenovo ThinkAgile HX630 V4 system with 2.5-inch drive bays

Did you know?

The ThinkAgile HX630 V4 system are built on the Lenovo ThinkSystem SR630 V4 server that features enterprise-class reliability, management, and security.

The HX 630 V4 System offers ThinkAgile Premier Single Point of Support for quick 24/7 problem reporting and resolution.

Key features

Combining performance and flexibility, the HX630 V4 are a great choice for enterprises of all sizes. The systems offer a broad selection of processors, memory and drives, and offers high performance features that industries such as finance, healthcare and telco need. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.

ThinkAgile HX features

The ThinkAgile HX630 V4 offers the following key features:

  • Factory-integrated, pre-configured ready-to-go appliances built on proven and reliable Lenovo ThinkSystem servers that provide compute power for a variety of workloads and applications and powered by industry’s most feature-rich hyperconverged infrastructure software from Nutanix.
  • Provide quick and convenient path to implement a hyperconverged solution powered by Nutanix with "one stop shop" and a single point of contact provided by Lenovo for purchasing, deploying, and supporting the solution.
  • Meet various workload demands with cost-efficient hybrid or performance-optimized all-NVMe storage configurations.
  • Deliver fully validated and integrated hardware and firmware that is certified with Nutanix software.
  • Include Lenovo ThinkAgile Premier Single Point of Support for quick 24/7 problem reporting and resolution.
  • Offer Lenovo deployment services to get customers up and running quickly.
  • Built on proven and reliable Lenovo ThinkSystem servers that provide compute power for a variety of workloads and applications.
  • Preloaded with Nutanix software and ready for out-of-box deployment (Note: software licenses are optional and are recommended to be purchased from Lenovo for a smoother experience).
  • Provide flexibility in using the existing Nutanix term-based software licenses and active support contracts or purchasing new software licenses and support contracts from Nutanix.
  • Offer optional Lenovo Professional Services to get customers up and running quickly

The Nutanix software running on the ThinkAgile HX630 V4 delivers the following key features:

  • Mission-critical performance and ultra-reliability of Lenovo’s platforms married with the dramatic efficiency and cost savings of the industry-leading Nutanix Enterprise Cloud OS .
  • A natively integrated solution for data protection and continuous availability at VM granularity that gives administrators an affordable range of options to meet the recovery point objectives (RPO) and recovery time objectives (RTO) for different applications.
  • A fault resistant platform, with no single point of failure and no bottlenecks with shared-nothing architecture, where all data, metadata and services are distributed to all nodes within the cluster, that is built to detect, isolate and recover from failures anywhere in the system.
  • An intuitive user-centric management experience to simplify every aspect of the IT infrastructure lifecycle and provide a single pane of glass to monitor and control Nutanix clusters, with simplified workflows and rich automation for common administrative tasks.
  • Powerful security features, such as two-factor authentication and data-at-rest encryption, with a security development lifecycle that is integrated into product development to help customers meet the most stringent security requirements.

Hardware features

The ThinkAgile HX630 V4 system systems are based on the SR630 V4 and have the following hardware features:

Scalability and performance

The HX630 V4 offer numerous features to boost performance, improve scalability and reduce costs:

  • Supports one or two Intel Xeon 6700-series or 6500-series processors with Performance-cores (P-cores)
    • Up to 86 cores and 172 threads
    • Core speeds of up to 4 GHz
    • TDP ratings of up to 350 W
  • Support for DDR5 memory DIMMs to maximize the performance of the memory subsystem:
    • Up to 32 DDR5 memory DIMMs, 16 DIMMs per processor
    • 8 memory channels per processor (2 DIMMs per channel)
    • Supports 1 DIMM per channel operating at 6400 MHz
    • Supports 2 DIMMs per channel operating at 5200 MHz
    • Using 256GB 3D RDIMMs, the server supports up to 8TB of system memory
  • Support for MRDIMMs for increased memory bandwidth with memory bus speeds of up to 8000 MHz. MRDIMMs require Intel Xeon 6700P-series processors.
  • Supports up to three single-width GPUs, each up to 75W for substantial processing power in a 1U system.
  • Supports up to 10x 2.5-inch NVMe hot-swap drive bays.
  • Support for up to 16x E3.S 1T NVMe drives, a new form factor drive for high-density and high-performance storage.
  • Supports up to 16x NVMe drives without oversubscription of PCIe lanes (1:1 connectivity) and without the need for additional NVMe adapters. The use of NVMe drives maximizes drive I/O performance, in terms of throughput and latency.
  • M.2 RAID Boot Adapters configured in RAID-1 which enables two NVMe M.2 drives to be configured as a redundant pair.y.
  • The server has up to two dedicated industry-standard OCP 3.0 slots supporting a variety of Ethernet network adapters. A simple-swap mechanism with a thumbscrew and pull-tab enables tool-less installation and removal of the adapter. The adapter supports shared BMC network sideband connectivity to enable out-of-band systems management.
  • The server offers PCI Express 5.0 I/O expansion capabilities that doubles the theoretical maximum bandwidth of PCIe 4.0 (32GT/s in each direction for PCIe Gen 5, compared to 16 GT/s with PCIe Gen 4 and 8 GT/s with PCIe Gen 3). A PCIe 5.0 x16 slot provides 128 GB/s bandwidth, enough to support a dual-port 200GbE network connection.

Availability and serviceability

The ThinkAgile  HX630 V4 provide many features to simplify serviceability and increase system uptime:

  • The server offers hot-swap drives for greater system uptime.
  • M.2 RAID Boot Adapters support RAID-1 which can enable two NVMe M.2 drives to be configured as a redundant pair.
  • The server has two hot-swap redundant power supplies and up to eight hot-swap redundant fans to provide availability for business-critical applications.
  • The light path diagnostics feature uses LEDs to lead the technician to failed (or failing) components, which simplifies servicing, speeds up problem resolution, and helps improve system availability.
  • Solid-state drives (SSDs) offer more reliability and performance than traditional mechanical HDDs for greater uptime.
  • Proactive Platform Alerts (including PFA and SMART alerts): Processors, voltage regulators, memory, internal storage (NVMe SSDs, M.2 storage), fans, power supplies, server ambient and subcomponent temperatures. Alerts can be surfaced through the XClarity Controller to managers such as Lenovo XClarity Administrator, Nutanix Prism or VMware vCenter. These proactive alerts let you take appropriate actions in advance of possible failure, thereby increasing server uptime and application availability.
  • The built-in XClarity Controller 3 continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failures to minimize downtime.
  • Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
  • Lenovo XClarity Provisioning Manager supports diagnostics and can save service data to a USB key drive or remote CIFS share folder for troubleshooting and reduce service time.
  • Auto restart in the event of a momentary loss of AC power (based on power policy setting in the XClarity Controller service processor)
  • Offers a diagnostics port on the front of the server to allow you to attach an external diagnostics handset for enhanced systems management capabilities.
  • Support for the XClarity Administrator Mobile app running on a supported smartphone or tablet and connected to the server through the service-enabled USB port, enables additional local systems management functions.
  • Three-year customer-replaceable unit and onsite limited warranty (varies by geography), 9 x 5 next business day. Optional service upgrades are available.

Manageability and security

Systems management features simplify local and remote management of the HX630 V4:

  • The server includes XClarity Controller 3 (XCC3) to monitor server availability. Optional upgrade to XCC3 Premier to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files (ISO and IMG image files), boot capture and power capping. XCC3 Premier also offers additional features such as Neighbor Groups, System Guard, a CNSA-compliant security mode, a FIPS 140-3-compliant mode, and enhanced NIST 800-193 support.
  • Dedicated Ethernet port at the rear of the server for remote management (BMC management). Optional support for a second dedicated BMC management port, installed in the OCP adapter bay.
  • Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
  • UEFI-based Lenovo XClarity Provisioning Manager, accessible from F1 during boot, provides system inventory information, graphical UEFI Setup, platform update function, RAID Setup wizard, operating system installation function, and diagnostic functions.
  • Support for Lenovo XClarity Energy Manager which captures real-time power and temperature data from the server and provides automated controls to lower energy costs.
  • An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
  • Support for industry standard management protocols, IPMI 2.0, SNMP 3.0, Redfish REST API, serial console via IPMI
  • An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
  • Administrator and power-on passwords help protect from unauthorized access to the server.
  • Supports Secure Boot to ensure only a digitally signed operating system can be used. Supported with HDDs and SSDs, and M.2 drives.
  • Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
  • Intel Execute Disable Bit functionality can prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.
  • Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.
  • Additional physical security features are an available chassis intrusion switch and available lockable front bezel.

Energy efficiency

The HX630 V4 offer the following energy-efficiency features to save energy, reduce operational costs, and increase energy availability:

  • The server supports advanced Lenovo Neptune Core direct-water cooling (DWC) capabilities, where heat from key components is removed from the rack and the data center using an open loop and coolant distribution units, resulting in lower energy costs:
    • Processor Neptune Core Module uses liquid cooling to remove heat from the processors
  • Energy-efficient system board components help lower operational costs.
  • Carbon offset is available at click of button. You can project the carbon emissions per device for an average lifecycle (up to 5 years). That information is available here
  • High-efficiency power supplies with 80 PLUS Platinum and Titanium certifications
  • Solid-state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs.
  • The server uses hexagonal ventilation holes, which can be grouped more densely than round holes, providing more efficient airflow through the system and thus keeping your system cooler.
  • Optional Lenovo XClarity Energy Manager provides advanced data center power notification, analysis, and policy-based management to help achieve lower heat output and reduced cooling needs.

Components and connectors

The ThinkAgile HX630 V4 system are based on the ThinkSystem SR630 V3 server.

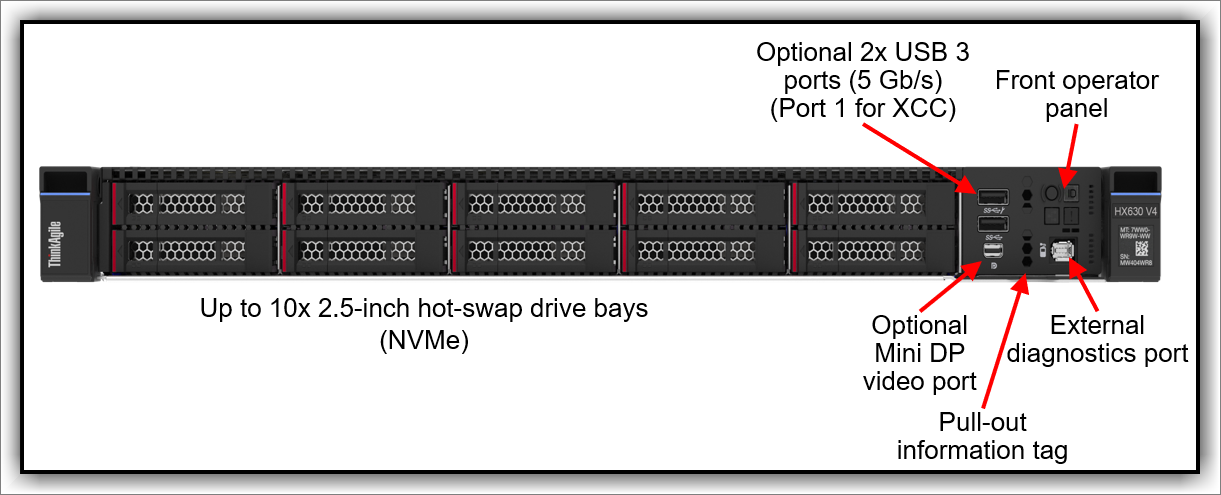

The following figure shows the front of the HX630 V4 with 2.5-inch drives.

Front view with 2.5-inch drives
Figure 2. Front view of the HX630 V4 with 2.5-inch drives

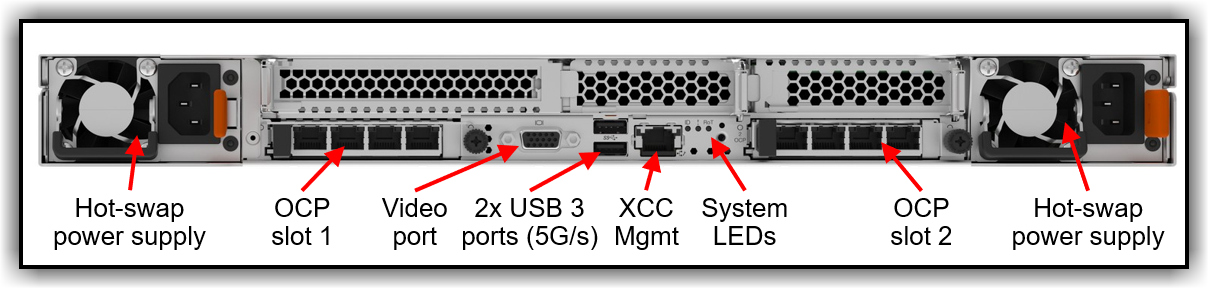

The following figure shows the components visible from the rear of the server.

Rear view of the HX630 V4
Figure 3. Rear views of the HX630 V4

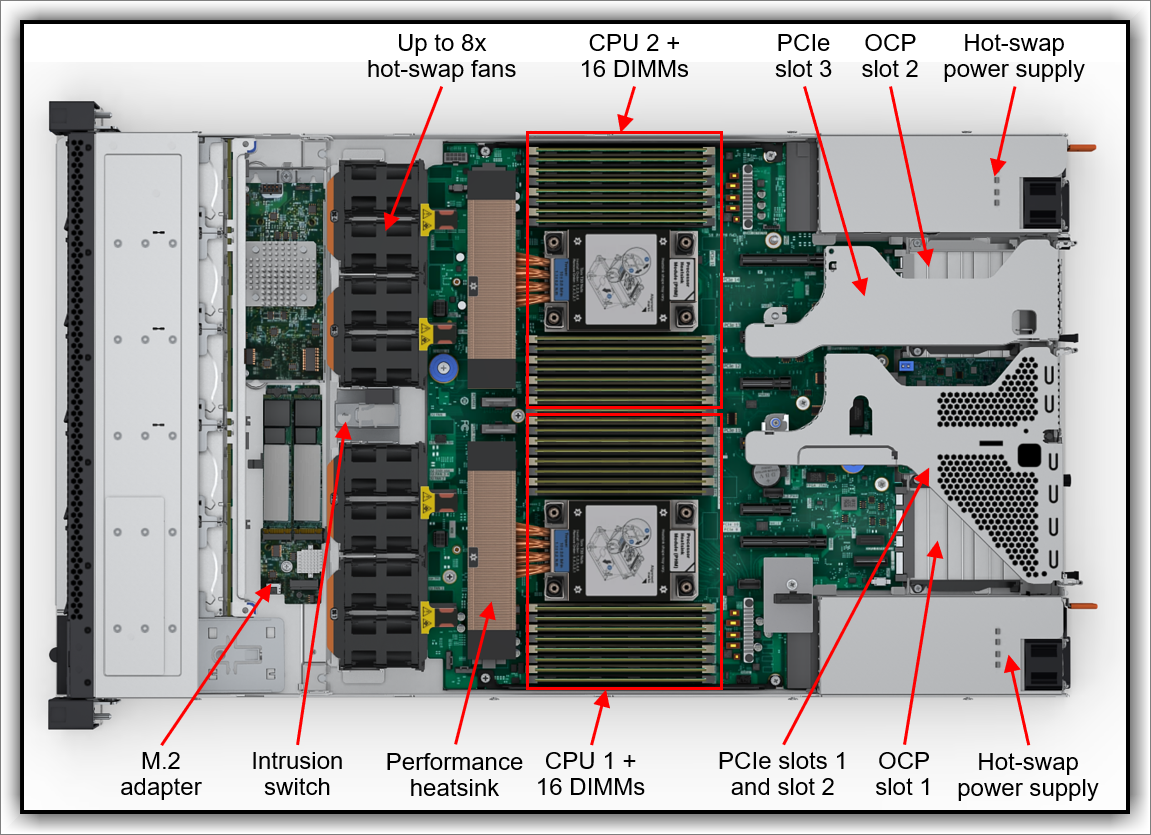

The following figure shows the locations of key components inside the systems.

Internal view of the Lenovo ThinkAgile HX630 V4 system
Figure 4. Internal view of the HX630 V4 systems

Standard specifications

The ThinkAgile HX630 V4 system are based on the ThinkSystem SR630 V4 server.

The following table provides an overview the ThinkAgile HX630 V4 system.

Table 1. Overview of features
  HX630 V4 System
HX offering type Flexible
Target workloads Entry, SMB, ROBO/Edge, VDI, server virtualization, private cloud, general compute
Base MTM 7DG3CTO1WW
Form Factor 1U
Base platform SR630 V4
Supported cluster sizes 1 or 3+ nodes
CPU 2x Intel Xeon SP Gen 6 (Granite Rapids)
Memory
  • DDR5 memory operating up to 6400 MHz
  • 8 channels per CPU
  • 32 DIMMs (16 per processor), 2 DIMMs per channel
  • Supports RDIMMs, 3DS RDIMMs, and MRDIMMs
  • Up to 8TB of system memory
Drive Bays
  • 10x 2.5" NVMe
  • 16x E3.S
Drive Configuration All Flash
Boot drives 2x M.2
OCP networking 1x OCP 3.0 adapter
10Gb, 25Gb
PCIe networking 2x PCIe adapters
10Gb, 25Gb, 100 Gb
GPUs Up to 2x single-wide GPUs
Hypervisor Nutanix AHV, VMware ESXi

*Note: 2-node cluster is supported with HX630 V4 under limited workload conditions.



The following table lists the standard specifications.

Table 2. Standard specifications
Components Specification
Machine types 7DG3
Form factor 1U rack.
Processor One or two Intel Xeon 6700P-series or 6500P-series processors (formerly codenamed "Granite Rapids"). Supports processors up to 86 cores and 172 threads, core speeds of up to 4.0 GHz, and TDP ratings of up to 350 W.
Chipset None. Integrated into the processor
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs and MRDIMMs are supported. RDIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC. MRDIMMs are supported up to 8000 MHz.
Memory maximum Up to 8TB by using 32x 256GB 3DS RDIMMs
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs), and memory mirroring.
Drive bays
  • HX630 V4:
    • Front drive bays:
      • 10x 2.5-inch NVMe
      • 16x E3.S
  • M.2 support, for OS boot and drive storage support:
    • Internal M.2 module supporting two M.2 drives
Storage controller
  • Up to 16x Onboard NVMe ports
Network interfaces Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface, either x8 or x16. Support a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port of each installed OCP adapter can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
PCI Expansion slots

Up to 3x slots, all at the rear, plus 2 OCP slots. All slots are PCIe 5.0.

Four choices for rear-access slots:

  • 3x PCIe 5.0 x16 low-profile slots
  • 2x PCIe 5.0 x16 full-height half-length slots
  • 1x PCIe 5.0 x16 full-height half-length slot + 1x PCIe 5.0 x16 low-profile slot (also supports 2x rear hot-swap M.2 drive bays)

All configurations include at the rear of the server:

  • 2x OCP slots with PCIe 5.0 x16 or x8 connection
GPU support Support for up to 3x single-wide GPUs
Ports

Front: External diagnostics port, optional 2x USB 3 (5 Gb/s) port, one supports XCC local management, optional Mini DisplayPort 1.1a video port.

Rear: 2x USB 3 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in a slot). Support for an optional second RJ-45 1GbE systems management port for XCC remote management (installs in OCP adapter slot). Support for an optional adapter to share an incoming remote management network connection across 4 servers (installs in an OCP slot).

Internal: Optional 1x USB 3 (5 Gb/s) connector for operating system or license key purposes

Cooling Up to 8x N+1 dual-rotor or single-rotor hot-swap 40 mm fans, implemented as 2-in-1 fan modules. Fans are N+1 rotor redundant. Fan select is configuration dependent. There is also one fan integrated in each power supply. For customers with water infrastructure in their data center, the server also supports open-loop water cooling for efficient heat removal.
Power supply Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 800W, 1300W, 2000W AC options. All AC power supplies support 230V power; some also support 115V input supply. In China only, all power supply options support 240 V DC. Support for HVDC and -48V DC power supply options.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 3 management controller. Two video ports (rear VGA and optional front Mini DisplayPort); both can be used simultaneously if desired. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Clarity Controller 3 (XCC3) embedded management based on the ASPEED AST2600 baseboard management controller (BMC) and OpenBMC, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC3 Premier to enable remote control functions and other features.
Security features Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel.
Software

Nutanix 2.0 PnP: Starter, Pro, and Ultimate editions - Nutanix Cloud Platform, Nutanix Cloud Infrastructure, Nutanix Cloud Manager, NCI-Data

Hypervisor Nutanix AHV or VMware ESXi.
Hardware warranty

Three-, four-, or five-year customer-replaceable unit and onsite limited hardware warranty with ThinkAgile Premier Support and selectable service levels: 9x5 next business day (NBD) parts delivered, 9x5 NBD onsite response, 24x7 coverage with 2-hour or 4-hour onsite response, or 6-hour or 24-hour committed repair (select areas). Also available are YourDrive YourData, Premier Support, and Enterprise Software Support

Software maintenance Three-, four-, or five-year software support and subscription (matches the duration of the selected warranty period).
Dimensions Width: 440 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 788 mm (31 in.). Servers with E3.S front drives have a longer depth.
Weight Maximum weight: 20.2 kg (44.5 lb)

Models

Factory-integrated models of the integrated systems and certified nodes are configured by using the Lenovo Data Center Solution Configurator (DCSC), http://dcsc.lenovo.com

During the configuration process, you are selecting one of the base Configure-to-Order (CTO) models first, and then you are adding components (processors, memory, drives, and network adapters) to the selected model according to the output from the Nutanix Sizer tool, http://services.nutanix.com/

To ensure that the controlled GPUs and accelerators are only sold in the supported markets, the following configure-to-order base machine-type models (CTO MTMs) are selectable in DCSC:

  • Standard Open models are available in all markets worldwide. Controlled GPUs cannot be configured using these models. These are CTO1WW models.

Note: It is highly recommended to engage a Lenovo representative in the project that includes the ThinkAgile HX HyperConverged System.

The following table lists the base CTO models.

Table 3. CTO base models
Server model Standard Open models
  These CTO models are available in all markets. Configurations based on these MTMs cannot include controlled GPUs.
ThinkAgile HX630 V4 7DG3CTO1WW

Comparison with the ThinkSystem SR630 V4

The ThinkAgile HX630 V4 system are based on the ThinkSystem SR630 V4 server, however there are key differences:

  • No onboard SATA controller support
  • RAID adapter support for Boot only
  • No VROC RAID support
  • Encryption not supported on SED drives
  • Fibre Channel support for data migration only
  • No InfiniBand support

For details about the ThinkSystem SR630 V4, see the SR630 V4 product guide:
https://lenovopress.com/lp1600-thinksystem-sr630-v3-server

To verify what specific hardware components are supported with the HX630 V4, see the DCSC configurator:
https://dcsc.lenovo.com

Processors

The ThinkAgile HX630 V4 supports processors 6th Gen Intel Xeon Scalable Processor family.

Topics in this section:

6th Gen Intel Xeon Scalable processors

The HX630 V4 systems support the following processors. The systems support 1 or 2 processors installed.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#processors

Table 4. Granite Rapids Processors
Part number Feature Description Maximum supported
HX630 V4
None C5QQ Intel Xeon 6505P 12C 150W 2.2GHz Processor 2
None C5R6 Intel Xeon 6507P 8C 150W 3.5GHz Processor 2
None C5RD Intel Xeon 6515P 16C 150W 2.3GHz Processor 2
None C5QV Intel Xeon 6517P 16C 190W 3.2GHz Processor 2
None C5QR Intel Xeon 6520P 24C 210W 2.4GHz Processor 2
None C5QT Intel Xeon 6530P 32C 225W 2.3GHz Processor 2
None C5R7 Intel Xeon 6714P 8C 165W 4.0GHz Processor 2
None C5R5 Intel Xeon 6724P 16C 210W 3.6GHz Processor 2
None C5R4 Intel Xeon 6730P 32C 250W 2.5GHz Processor 2
None C5R0 Intel Xeon 6736P 36C 205W 2.0GHz Processor 2
None C5QX Intel Xeon 6737P 32C 270W 2.9GHz Processor 2
None C5R3 Intel Xeon 6740P 48C 270W 2.1GHz Processor 2
None C5R8 Intel Xeon 6747P 48C 330W 2.7GHz Processor 2
None C5R1 Intel Xeon 6760P 64C 330W 2.2GHz Processor 2
None C5QY Intel Xeon 6767P 64C 350W 2.4GHz Processor 2
None C5QM Intel Xeon 6787P 86C 350W 2.0GHz Processor 2

Lenovo Processor Neptune Core Module - Open-loop liquid cooling

The HX630 V4 also supports advanced direct-water cooling (DWC) capability with the Lenovo Processor Neptune Core Module. This module implements a liquid cooling solution where heat from the processors is removed from the rack and the data center using an open loop and coolant distribution units.

With the Processor Neptune Core Module, all heat generated by the processors is removed from the server using water. This means that the server fans and data center air conditioning units only need to remove the heat generated by the other components. This results in lower air conditioning costs and it enables the use of slower fans which results in lower overall power consumption.

Internal testing has shows a 74% fan power saving per node and 26% rack-level power saving with the use of open-loop liquid cooling. Power savings are configuration dependent.

The following figure shows the Lenovo Processor Neptune Core Module.


Figure 5. Lenovo Processor Neptune Core Module

Lenovo Neptune Processor DWC Module
The Processor Neptune Core Module also includes a leak detection module which can detect a leakage of more than 0.5ml (about 10 drops) along the length of the tube and then issue an event to the XClarity Controller. XCC will then post an error to the System Event Log and enable further actions. Once the liquid evaporates, a further event is issue to XCC.

The Processor Neptune Core Module is only available in CTO orders, not as a field upgrade. Ordering information is listed in the following table.

Table 5. Lenovo Processor Neptune Core Module
Part number Feature code Description
CTO only C1XH* ThinkSystem V4 1U/2U Processor Neptune Core Module

* In DCSC, this feature code is listed in the Processor tab

Configuration notes:

  • The Processor Neptune Core Module requires water infrastructure be available in the rack cabinet and data center, as described in the Water infrastructure section.
  • All processor SKUs are supported
  • All front drive bay configurations are supported
  • Slot 2 is not available for adapters - the water loop is routed through the space otherwise occupied by slot 2
  • Only the following slot configuration is supported:
    • 2x Low profile x16 slots, in slot 1 and slot 3
  • M.2 adapters are supported based on the configurations in the Storage configurations section
  • Standard fans can be configured in most configurations
  • The use of a cable management arm (CMA) is not supported

For more information, see the Thermal Rules page for the direct water cooling module:
https://pubs.lenovo.com/sr630-v4/thermal_rules#server-models-with-direct-water-cooling-module

Memory

6th Generation Memory options

The ThinkAgile HX630 V4 systems support the following 6th generation memory options. The HX630 V4 uses Lenovo TruDDR5 memory operating at up to 8000 MHz. The server supports up to 32 DIMMs with 2 processors. The processors have 8 memory channels and support 2 DIMMs per channel (DPC). The server supports up to 8TB of memory using 32x 256GB RDIMMs and two processors. The server also supports up to 8x CXL memory DIMMs (4 per CPU) which are installed in E3.S 2T drive bays.

DIMMs operate at the following speeds, up to the memory bus speed of the processor selected. See the Processor features section for specifics.

  • RDIMMs and 3DS RDIMMs:
    • 1 DIMM per channel: Up to 6400 MHz
    • 2 DIMMs per channel using RDIMMs: Up to 5200 MHz

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#memory

Table 6. Memory
Part number Feature Description Maximum supported
HX630 V4
x4 RDIMMs
4X77A90964 C0U9 ThinkSystem 32GB TruDDR5 6400MHz (1Rx4) RDIMM 32
4X77A90966 C0TQ ThinkSystem 64GB TruDDR5 6400MHz (2Rx4) RDIMM 32
4X77A90997 BZ7D ThinkSystem 96GB TruDDR5 6400MHz (2Rx4) RDIMM 32
4X77A90993 C0U1 ThinkSystem 128GB TruDDR5 6400MHz (2Rx4) RDIMM 32
x8 RDIMMs
4X77A90965 BYTJ ThinkSystem 32GB TruDDR5 6400MHz (2Rx8) RDIMM 32
3DS RDIMMs
4X77A90994 C0U0 ThinkSystem 256GB TruDDR5 6400MHz (4Rx4) 3DS RDIMM 32

Internal storage

The HX630 V4 supports up to 10x 2.5-inch drives. The server can be configured without any drive bays if desired.

The server supports front drive bays, are as follows:

  • Front accessible:
    • Up to 10x 2.5-inch hot-swap bays, or
    • 16x E3.S 1T hot-swap bays

The server also supports two M.2 drives:

  • Installed in an M.2 adapter internal to the server (non-hot-swap)

The choice of backplanes supported varies by system, as listed in the following table.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#internal-storage

Configuration rules

  • Nutanix does not use the concept of "cache" drives but rather uses tiers. There are three tiers currently supported
    • NVMe
    • HDD tier - requires NVMe
  • HX Systems can be configured as:
    • NVMe only
    • NVMe+HDD
  • All drives in a tier must be of the same capacity.
  • For All Flash configurations, the system supports from 4 to 10 NVMe
  • All SSDs in the system must be of the same model and capacity.
  • For boot, 2 drives are required and are used in RAID 1.
  • Currently the max number of 2.5-inch drive slots is 10 when configuring a solution.

Backplanes

The choice of backplanes supported varies by system, as listed in the following table.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#internal-storage

Table 7. Drive backplanes
Part number Feature Description Quantity supported
HX630 V4
Front 2.5-inch drive backplanes
None C21X ThinkSystem 1U V4 10x2.5" NVMe Gen5 Backplane 1
Front E3.S drive backplanes
None C221 ThinkSystem V4 EDSFF E3.S 4x1T NVMe Gen5 Backplane 4

Boot drive enablement

For OS boot functions, the systems also support one M.2 hot-swap drives at the rear of the server, or one or two M.2 drives installed on an adapter internal to the server. The following table lists the supported controllers/enablement kits for M.2 boot drives.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#internal-storage

Table 8. Boot drive enablement
Part number Feature Description Maximum supported
HX630 V4
Internal M.2 (non-hot-swap)
4Y37A93746 C26V ThinkSystem M.2 RAID B545i-2i SATA/NVMe Adapter 1

Internal drive options

The following table lists the supported drive options for the HX630 V4.

Table 9. Internal drive options
Part number Feature Description Maximum supported
HX630 V4
2.5-inch hot-swap PCIe 4.0 NVMe SSDs
4XB7A95050 C2BR ThinkSystem 2.5" U.3 7500 PRO 1.92TB Read Intensive NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95051 C2BS ThinkSystem 2.5" U.3 7500 PRO 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95052 C2BT ThinkSystem 2.5" U.3 7500 PRO 7.68TB Read Intensive NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95053 C2BU ThinkSystem 2.5" U.3 7500 PRO 15.36TB Read Intensive NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95055 C2BV ThinkSystem 2.5" U.3 7500 MAX 1.6TB Mixed Use NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95056 C2BW ThinkSystem 2.5" U.3 7500 MAX 3.2TB Mixed Use NVMe PCIe 4.0 x4 HS SSD 10
4XB7A95057 C2BF ThinkSystem 2.5" U.3 7500 MAX 6.4TB Mixed Use NVMe PCIe 4.0 x4 HS SSD 10
E3.S PCIe 5.0 NVMe SSDs
4XB7A93810 C0R2 ThinkSystem E3.S CD8P 1.92TB Read Intensive NVMe PCIe 5.0 x4 HS SSD 16
4XB7A93813 C0R5 ThinkSystem E3.S CD8P 15.36TB Read Intensive NVMe PCIe 5.0 x4 HS SSD 16
4XB7A93811 C0R3 ThinkSystem E3.S CD8P 3.84TB Read Intensive NVMe PCIe 5.0 x4 HS SSD 16
4XB7A93812 C0R4 ThinkSystem E3.S CD8P 7.68TB Read Intensive NVMe PCIe 5.0 x4 HS SSD 16
M.2 PCIe 4.0 NVMe SSDs
4XB7A82636 BS2P ThinkSystem M.2 7450 PRO 480GB Read Intensive NVMe PCIe 4.0 x4 NHS SSD 2
4XB7A13999 BKSR ThinkSystem M.2 7450 PRO 960GB Read Intensive NVMe PCIe 4.0 x4 NHS SSD 2

Network adapters

The HX630 V4 systems support the following networking options.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#i-o-expansion
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#network-adapters

Mixing vendors is not supported: HX configurations only support network adapters from one vendor. For example, if you select a Broadcom OCP adapter, you cannot select a Mellanox PCIe network adapter.

Table 10. OCP network adapters
Part number Feature Description Maximum supported
HX630 V4
25 Gb Ethernet
4XC7A08237 BN2T ThinkSystem Broadcom 57414 10/25GbE SFP28 2-Port OCP Ethernet Adapter 2
4XC7A62582 BE4T ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter 2
4XC7A80567 BPPW ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port OCP Ethernet Adapter 2
100 Gb Ethernet
4XC7A08243 BPPX ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter 2
Table 11. PCIe network adapters
Part number Feature Description Maximum supported
HX630 V4
25 Gb Ethernet
4XC7A08238 BK1H ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter 2
4XC7A62580 BE4U ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter 2
4XC7A80566 BNWM ThinkSystem Broadcom 57504 10/25GbE SFP28 4-port PCIe Ethernet Adapter 2
100 Gb Ethernet
4XC7A08297 BK1J ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter 2
4XC7A08248 B8PP ThinkSystem Mellanox ConnectX-6 Dx 100GbE QSFP56 2-port PCIe Ethernet Adapter 2

Note: ThinkSystem Mellanox ConnectX-6 PCIe is the only adapter enabled for RDMA, minimum required quantity is two.

GPU adapters

The ThinkAgile HX630 V4 systems support the following GPU options.

For details about these options, including configuration rules, see the SR630 V4 product guide:
https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#gpu-adapters

To ensure that the controlled GPUs and accelerators are only sold in the supported markets, the following configure-to-order base machine-type models (CTO MTMs) are selectable in DCSC:

  • Standard Open models are available in all markets worldwide. Controlled GPUs cannot be configured using these models. These are CTO1WW models.

Note: Note: It is highly recommended to engage a Lenovo representative in the project that includes the ThinkAgile HX HyperConverged System.



Table 12. GPU adapters
Part number Feature Description Maximum supported
HX630 V4
4X67A84824 BS2C ThinkSystem NVIDIA L4 24GB PCIe Gen4 Passive GPU 3

Software

The systems support the hypervisors listed in the following table. Hypervisors are installed on the 2x M.2 SSDs configured in a RAID-1 drive group.

Table 13. Hypervisors
Feature code Description Quantity
B15S Nutanix SW Stack on Nutanix AHV 1
C89R Nutanix SW Stack on VMWare ESXi 8 1

Configuration notes:

  • In ESXi-based environments, ThinkAgile HX Hyperconverged Solutions require VMware vCenter Server.
  • The ThinkAgile HX Hyperconverged Solutions support firmware updates from Nutanix with the ThinkAgile HX Lifecycle Manager (UEFI, XCC2, drives, and network adapters)

Nutanix licenses: TThe ThinkAgile HX630 V4 ships with the Nutanix software preloaded, software licenses are optional and are recommended to be purchased from Lenovo for a more seamless experience. Customers can use the existing Nutanix term-based software licenses and active support contracts, or they can purchase term-based software licenses and support contracts from Nutanix.

For the information on ThinkAgile HX Hyperconverged Solution firmware levels, hypervisor versions, and software versions that have been tested for interoperability, refer to the Lenovo ThinkAgile HX Series Best Recipes:
http://datacentersupport.lenovo.com/us/en/solutions/ht505413

Nutanix Portfolio 2.0 (PnP) Licensing Model

Nutanix is introducing an enterprise-ready unified cloud platform with our HCI solution as the foundation. The new, simplified product portfolio includes: Nutanix Cloud Platform (NCP), Nutanix Cloud Infrastructure (NCI) and Nutanix Cloud Manager (NCM), NCI-Data with 3 license tiers for each software edition.  There are additional packages, Nutanix Unified Storage, Nutanix Database Service (NDB), and Nutanix Desktop Services (NDS),  Virtual Desktop Infrastructure (VDI) & Nutanix Frame that are available.

The Nutanix software is available for all base CTO models.

The editions have the following characteristics:

Table 14. Software Editions
License Tier Nutanix Cloud Platform (NCP) Nutanix Cloud Infrastructure (NCI) Nutanix Cloud Manager (NCM) NCI-Data
Ultimate
  • NCI Ultimate
  • NCM Ultimate
  • Advanced DR: Sync, Near-Sync,
  • Runbook Security: Micro-segmentation, Encryption
  • Cloud Native: Kubernetes Services
  • Application Automation
  • Security General
  • No Mseg
  • No Karbon
Pro
  • NCI Ultimate
  • NCM Pro
  • Multisite Async DR
  • Overlay Networking
  • Self Service Cost Governance
  •  No Flow Networking
Starter
  • NCI Pro
  • NCM Pro
  • AOS Storage + Compression + Dedup
  • AI Operations
  • No AHV Support

Nutanix Cloud Platform (NCP)

Nutanix Cloud Platform is the complete software edition package that includes both Nutanix Cloud Infrastructure (NCI) and Nutanix Cloud Manager (NCM). It is available in several editions to meet your infrastructure needs with the right set of capabilities.

Nutanix Cloud Infrastructure (NCI)

Nutanix Cloud Infrastructure (NCI) is a complete software stack to unify your hybrid cloud infrastructure including compute, storage and network, hypervisors and containers, in public or enterprise clouds; all with built-in resilience, self-healing, disaster recovery capabilities, and security. It includes enterprise data services and consolidated storage, data protection and disaster recovery, native virtualization and container management, networking and security.

For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#nci

Nutanix Cloud Manager (NCM)

Nutanix Cloud Manager (NCM) offers our customers simplicity and ease of use to build and grow their cloud deployments faster and realize rapid ROI, by providing intelligent operations, self service and orchestration, visibility and governance of spend, security and teams, all through a unified Multi-cloud management solution.

For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#ncm

Nutanix Unified Storage

Nutanix Unified Storage provides software-defined, scale-out storage solutions for enterprise NAS and object workloads for unstructured data, block storage for structured data, and backup storage. Nutanix Unified Storage replaces traditional independent storage services and brings NAS, object, and block workloads into a consolidated unified storage platform with all its benefits, including a unified control plane.

Nutanix Data Lens delivers cloud-based data governance for unstructured data stored in the Nutanix Unified Storage platform, including data lifecycle management, data security, ransomware protection, and audit compliance.

Nutanix Unified Storage and Data Lens are purchased and licensed on a per TiB usable basis.

For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#nus

Nutanix Database Service

Nutanix Database Service (NDB) is a Hybrid Multicloud DBaaS that enables small, nimble teams of DBAs to easily manage large fleets of databases using a single console and API,  while enabling developers to self-service their database requests.  NDB is purchased and licensed on a per core basis and is available either as a standalone or as an add-on to NCI. In the standalone version, NDB includes NCI Ultimate functionality in addition to database-specific capabilities and is licensed on a per-core basis.

For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#database

Nutanix Virtual Desktop Infrastructure (VDI) & Nutanix Frame

The Nutanix VDI per user model offers hybrid cloud infrastructure capabilities appropriate for on-prem virtual desktop infrastructure (VDI) and Desktop as a Service (DaaS) use cases with pricing based on a Maximum Concurrent User basis (maximum number of provisioned end-user VMs). VDI per user is an alternative to the core-based NCI licensing option and is designed to provide simple, transparent licensing for all VDI users, regardless of the underlying hardware, hypervisor, or cloud.

  • Agnostic: Works with any EUC management platform including Citrix Virtual Apps & Desktops and VMware Horizon
  • Term license: 1-year through 5-year options
    • Term license must run on a dedicated software licensed VDI cluster with no core-based licensing. Mixing of non-VDI workloads is not supported.
  • Unified Storage: Built-in and also available as a per TiB base add-on
  • No additional license cost for DR site
  • Portable across on-premises and public cloud, public cloud use requires Ultimate edition
  • Available in Starter, Pro, and Ultimate editions
  • Cloud Native and Database Service Add-ons not available with NCI VDI. Advanced Replication and Security Add-on features require NCI Ultimate edition

For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#vdi

License Options

ThinkAgile HX can be configured with one of the latest Nutanix software editions that are listed in the following table.

Table 15. Nutanix license options
Feature code Description Quantity Required
BVKU Nutanix Cloud Platform Starter Edition 1 per node
BVKW Nutanix Cloud Platform Pro Edition 1 per node
BVKY Nutanix Cloud Platform Ultimate Edition 1 per node
BSPJ Nutanix Cloud Infrastructure Starter Edition 1 per node
BSPG Nutanix Cloud Infrastructure Pro Edition 1 per node
BSPL Nutanix Cloud Infrastructure Ultimate Edition 1  per node
BSQ0 Nutanix Cloud  Manager Starter Edition 1 per node
BSPY Nutanix Cloud  Manager Pro Edition 1 per node
BSQ2 Nutanix Cloud  Manager Ultimate Edition 1 per node
BSPQ NCI-Data Starter Edition 1 per node
BSPN NCI-Data Pro Edition 1 per node
BSPS NCI-Data Ultimate Edition 1 per node
BSQH Nutanix Database Service (NDB) Platform 1 per node
BSQ7 End User Computing (EUC) Starter 1 for every 200 concurrent users
BSQ5 End User Computing (EUC) Pro 1 for every 200 concurrent users
BSQ9 End User Computing (EUC) Ultimate 1 for every 200 concurrent users
BSQD Nutanix Unified Storage (NUS)  Starter 1 per Tib
BSQB Nutanix Unified Storage (NUS)  Pro 1 per Tib

Warranty and Support

The ThinkAgile HX630 V4 can be configured with a three-, four, or five-year hardware warranty with 24x7 ThinkAgile Premier Single Point of Support (Lenovo appliance hardware and Nutanix software) and various levels of coverage with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

The Lenovo local support centers perform problem determination and resolution for hardware-related issues and escalate to Nutanix, on behalf of the customer, for software-related problem determination. Nutanix will contact the customer and will own the software-related problem resolution until closure.

For more information refer to the Lenovo Support Plan - ThinkAgile HX Series
https://datacentersupport.lenovo.com/us/en/solutions/ht505404

The base warranty provides 9x5 Next Business Day response with parts delivered. Lenovo’s additional support services provide a sophisticated, unified support structure for a customer's data center, with an experience consistently ranked number one in customer satisfaction worldwide.

Hardware warranty

The ThinkAgile HX630 V4 system have a 3-year warranty:

  • 7DG3 - 1U - 3 year warranty

Our global network of regional support centers offers consistent, local-language support enabling you to vary response times and level of service to match the criticality of your support needs:

  • Standard Next Business Day – Best choice for non-essential systems requiring simple maintenance.
  • Premier Next Business Day – Best choice for essential systems requiring technical expertise from senior-level Lenovo engineers.
  • Premier 24x7 4-Hour Response – Best choice for systems where maximum uptime is critical.
  • Premier Enhanced Storage Support 24x7 4-Hour Response – Best choice for storage systems where maximum uptime is critical.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Deployment services

The following optional Lenovo Professional Services are available to get customers up and running quickly.

  • Basic Hardware Installation Services
    • Unpacking and inspecting the systems
    • Installing options and mounting the systems in a rack cabinet
    • Connecting the systems to electrical power and network
    • Checking and updating firmware to the latest levels
    • Verifying operations
    • Disposal of the packaging materials (within the customer site)
  • Nutanix deployment services - Base (per node)
    • Conducting remote preparation and planning
    • Verifying firmware versions and performing firmware updates, if needed
    • Installing and configuring hypervisor and Nutanix controller VM
    • Creating Nutanix cluster
    • Configuring storage
    • Configuring administrative features
  • Nutanix deployment services - Advanced (per cluster)
    • Configuring and integrating a virtualized environment
      • Nutanix containers and Acropolis (AHV) cluster
      • VMware vCenter Server and vSphere cluster (for VMware installations)
    • Transferring knowledge
  • Nutanix deployment services - Advanced with XClarity (per cluster)
    • Nutanix deployment services - Advanced
    • Installing Lenovo XClarity
    • Configuring Lenovo XClarity network settings and performing discovery and inventory
    • Installing system updates

The following table lists ThinkAgile Health Check & Deployment offerings are available for ThinkAgile HX customers. These offerings are performed by Lenovo Professional Services.

  • Onsite Deployment: Install, configure, and validate solution on-site, and conduct knowledge transfer.
  • Remote Deployment: Install, configure, and validate solution remotely, and conduct knowledge transfer.
  • Remote Health Check: Report & remediation of hardware and cluster health issues, including firmware and software updates.

Note: For custom Hardware Installation and Deployment Services, please contact the Lenovo Professional Services team for sizing and pricing.

Table 16. Deployment offerings
Part number Description
Onsite deployment services
5MS7B00043 ThinkAgile HX Onsite Deployment (up to 3 nodes)
5MS7B00044 ThinkAgile HX Onsite Deployment (additional node)
Remote deployment services
5MS7B00045 ThinkAgile HX Remote Deployment (up to 3 nodes)
5MS7B00046 ThinkAgile HX Remote Deployment (additional node)
5MS7A27430 ThinkAgile HX SAP HANA Deployment - Custom
Remote Health Check
5MS7B00065 ThinkAgile HX 1X Remote Health Check (up to 3 node cluster)
5MS7B00066 ThinkAgile HX 1X Remote Health Check (additional node)
5MS7B00067 ThinkAgile HX 1X Remote Health Check & Update (up to 3 node cluster)
5MS7B00068 ThinkAgile HX 1X Remote Health Check & Update (additional node)

For more information, refer to the Data Center Implementation Services web page:
https://www.lenovo.com/us/en/data-center/services/implementation-services/

Lenovo TruScale

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

  • The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
  • A single-contract framework for full visibility and accountability
  • The global scale to rapidly and securely build teams from anywhere
  • Flexible fixed and metered pay-as-you-go models with minimal upfront cost
  • The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

Lenovo Financial Services

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

  • Flexible

    Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

  • 100% Solution Financing

    Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

  • Device as a Service (DaaS)

    Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

  • 24/7 Asset management

    Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

  • Fair Market Value (FMV) and $1 Purchase Option Leases

    Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

Seller training courses

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

  1. Lenovo Data Center Product Portfolio
    2025-06-11 | 20 minutes | Employees and Partners
    Details
    Lenovo Data Center Product Portfolio

    This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

    Course objectives:
    1.Identify product types within each data center family
    2.Describe the features of the product family or category
    3.Recognize when a specific product should be selected

    Tags: Advanced DataCenter, DataCenter Products, Server, ThinkAgile, ThinkEdge, ThinkSystem

    Published: 2025-06-11
    Length: 20 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: SXXW1110r8
  2. VTT: Nutanix Integration in XClarity One - SAM - May 2025
    2025-06-10 | 56 minutes | Employees Only
    Details
    VTT: Nutanix Integration in XClarity One - SAM - May 2025

    Please join this session as our speaker Sorin Tacu, will be sharing us a preview of SAM (Solutions Advanced Manager) - a powerful new tool developed by the ThinkAgile HX team in collaboration with XClarity One. Designed to seamlessly integrate the Nutanix Solution into XClarity One, SAM is set to streamline solution management and drive greater value for our customers. Get a first look at its future capabilities and learn more about it.

    Tags: Nutanix, XClarity

    Published: 2025-06-10
    Length: 56 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DVSYS217
  3. Partner Technical Webinar - ThinkAgile V4
    2025-06-09 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - ThinkAgile V4

    In this 60-minute replay, Pawan Misra, Lenovo SDI Product Manager and Adam Mandelbloom, Lenovo SDI Technical Marketing Manager, reviewed the newly announced ThinkAgile V4 systems for HX, VX and MX.

    Tags: Microsoft, Nutanix, VMware

    Published: 2025-06-09
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: JUN0625
  4. Family Portfolio: ThinkAgile Systems
    2025-04-30 | 45 minutes | Employees and Partners
    Details
    Family Portfolio: ThinkAgile Systems

    This course covers the foundational components of the ThinkAgile family, including server configurations, key system differences, and the unique features of the HX, MX, and VX product families.
    By the end of this course, you should be able to:
    •List the ThinkSystem and ThinkEdge servers that the ThinkAgile family is based on
    •Explain the difference between Certified Nodes and Integrated Systems
    •List two features each of the HX, MX, and VX families

    Tags: ThinkAgile, ThinkSystem

    Published: 2025-04-30
    Length: 45 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: SXSW2150r2
  5. Partner Technical Webinar - Storage Announcements
    2025-04-29 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - Storage Announcements

    In this 60-minute replay, the April 23 Storage Announcement was presented. Adam Mandelbloom, Lenovo Technical Marketing Manager, presented the ThinkAgile announcements. Next, Roger Yarosh, Senior Storage Product Manager, presented the DG and DM announcements.

    Tags: Data Management, ThinkAgile

    Published: 2025-04-29
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: 042525
  6. Think AI Weekly: Simplifying AI Deployments with ThinkAgile
    2025-04-11 | 54 minutes | Employees Only
    Details
    Think AI Weekly: Simplifying AI Deployments with ThinkAgile

    Please view this session to hear Adam Mandelbloom, Technical Marketing Manager for ISG explain these topics:

    -Overall value proposition of ThinkAgile in AI solutions
    -Use cases for ThinkAgile HX
    -Use cases for ThinkAgile VX and MX

    Tags: Artificial Intelligence (AI), ThinkAgile

    Published: 2025-04-11
    Length: 54 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DTAIW137
  7. Lenovo TruScale for Hosted Desktops with Nutanix
    2025-02-04 | 15 minutes | Employees and Partners
    Details
    Lenovo TruScale for Hosted Desktops with Nutanix

    By exemplifying the case of a customer who wants to move to a remote desktop public cloud solution, this 15-minute course offers an overview of the Lenovo TruScale for Hosted Desktops with Nutanix solution, including benefits, architecture, and value proposition.

    After completing this course, you will be able to describe the Lenovo TruScale for Hosted Desktops with Nutanix solution, articulate the value proposition of this Hosted Desktops solution, and identify opportunities for this Lenovo-Nutanix solution.

    Tags: ThinkAgile, TruScale

    Published: 2025-02-04
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DSOLO109
  8. Selling On Prem Value - Private Cloud and Private AI
    2024-12-13 | 40 minutes | Employees Only
    Details
    Selling On Prem Value - Private Cloud and Private AI

    This course provides Lenovo Sellers with a series of five videos that are designed to help you better articulate our joint value in the Private Cloud and Private AI solution opportunity. After completing this course, Lenovo Sellers should be prepared to elevate customer discussions by transitioning from product features to explaining value-driven benefits, enabling a deeper understanding of the strategic impact for their business.

    Tags: Artificial Intelligence (AI), Industry solutions, Technology solutions, ThinkAgile, VMware

    Published: 2024-12-13
    Length: 40 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DVMB101
  9. Partner Technical Webinar - Data Center 101 - Why HCI? Why 3-tier?
    2024-11-14 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - Data Center 101 - Why HCI? Why 3-tier?

    October 11, 2024 – In this 60-minute webinar Alex Docherty, Channel Technical Strategist, discussed When to HCI vs 3 Tier.

    Tags: ThinkAgile, ThinkSystem

    Published: 2024-11-14
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: 101124
  10. ThinkAgile Solutions for AI - Security and Compliance Considerations
    2024-10-01 | 15 minutes | Employees and Partners
    Details
    ThinkAgile Solutions for AI - Security and Compliance Considerations

    This course, tailored specifically for Lenovo and its partner technical sellers, is designed to equip participants with essential knowledge and skills to effectively assess security measures and address compliance considerations for ThinkAgile Solutions for AI.

    Upon completion of this training, you will be able to:
    • Describee security features of ThinkAgile for AI data protection.
    • Explain how to mitigate risk and address compliance considerations in AI deployments.

    Last Updated: September 2024

    Tags: Artificial Intelligence (AI), High-Performance Computing (HPC), ThinkAgile

    Published: 2024-10-01
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDAI203
  11. Integration of ThinkAgile and AI
    2024-09-11 | 25 minutes | Employees and Partners
    Details
    Integration of ThinkAgile and AI

    Designed specifically for Lenovo and its partner technical sellers, this course aims to equip you with the knowledge and skills to effectively communicate the integration of ThinkAgile Solutions and AI.

    Upon completion of this training, you will be able to:
    •Highlight the advantages of using ThinkAgile for AI workloads
    •Explore how ThinkAgile platforms are specifically optimized for AI

    Last Updated: September 2024

    Tags: Artificial Intelligence (AI), ThinkAgile

    Published: 2024-09-11
    Length: 25 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDAI204
  12. Key Features of Lenovo ThinkAgile Solutions for AI
    2024-09-10 | 15 minutes | Employees and Partners
    Details
    Key Features of Lenovo ThinkAgile Solutions for AI

    Designed specifically for Lenovo and its partner technical sellers, this course aims to equip you with the knowledge and skills to effectively communicate the key features of ThinkAgile Solutions for AI. By completing this course, you'll be better prepared to understand customer needs and present the most suitable AI solutions, ensuring successful engagements and driving value for your clients.

    In this course, you will learn how to:
    • Present compute capabilities for AI processing
    • Articulate optimized storage solutions with ThinkAgile for high-speed AI performance
    • Identify essential networking considerations for ThinkAgile AI workloads
    • Present ThinkAgile AI Ready solutions

    Last Updated: September 2024

    Tags: Artificial Intelligence (AI), ThinkAgile

    Published: 2024-09-10
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDAI201
  13. ThinkAgile Solutions for AI - Sales Strategies and Messaging
    2024-09-06 | 15 minutes | Employees and Partners
    Details
    ThinkAgile Solutions for AI - Sales Strategies and Messaging

    This course is designed exclusively for Lenovo and its partner technical sales teams, with the goal of empowering you with the knowledge and strategies necessary to effectively engage customers in conversations about ThinkAgile Solutions for AI.

    In this course, you'll learn how to:
    • Identify customer pain points.
    • Recommend ThinkAgile Solutions for AI tailored to those needs. And lastly,
    • Communicate the benefits of ThinkAgile for AI to key stakeholders.

    Last Updated: September 2024

    Tags: Artificial Intelligence (AI), ThinkAgile

    Published: 2024-09-06
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDAI202
  14. Position Lenovo ThinkAgile Solutions for AI
    2024-08-19 | 10 minutes | Employees and Partners
    Details
    Position Lenovo ThinkAgile Solutions for AI

    Designed specifically for Lenovo and partner technical sellers, this course aims to equip you with the knowledge and skills necessary to effectively evaluate and position ThinkAgile Solutions for AI to your customers. By completing this course, you will be better prepared to understand customer needs and present the most suitable AI solutions, ensuring successful engagements and driving value for your clients.

    In this course, you will learn how to position ThinkAgile Solutions for AI to your customers by:
    •Evaluating the key challenges in the enterprise landscape
    •Advocating the value proposition of ThinkAgile Hyper-Converged Infrastructure
    •Exploring use cases of ThinkAgile in AI environments
    •Implementing ThinkAgile-based AI deployments

    Tags: Artificial Intelligence (AI), ThinkAgile

    Published: 2024-08-19
    Length: 10 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDAI200
  15. ThinkAgile Roadshow for Account Managers
    2024-06-21 | 60 minutes | Employees Only
    Details
    ThinkAgile Roadshow for Account Managers

    As customers transition through technology refresh and modernize their IT, learn how to win and position ThinkAgile portfolio. Get an overview of current ThinkAgile momentum and strategy along with best practices in product positioning

    Tags: Artificial Intelligence (AI), Cloud, Microsoft, Nutanix, ThinkAgile, VMware

    Published: 2024-06-21
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DTAO101
  16. SAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP Landscapes
    2024-06-04 | 60 minutes | Employees Only
    Details
    SAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP Landscapes

    Join Mark Kelly, Advisory IT Architect with the Lenovo Global SAP Center of Competence as he discusses:
    •Challenges in the SAP environment
    •Lenovo On-premise Solutions for SAP
    •Lenovo support resources for SAP solutions

    Tags: SAP, ThinkAgile, ThinkEdge, ThinkSystem

    Published: 2024-06-04
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DSAPF101
  17. VTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AI
    2024-05-22 | 60 minutes | Employees Only
    Details
    VTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AI

    Join JD Dupont, NVIDIA Head of Americas Sales, Lenovo partnership and Veer Mehta, NVIDIA Solution Architect on an interactive discussion about cloud to edge, designing cloud Solutions with NVIDIA GPUs and minimizing private\hybrid cloud OPEX with GPUs. Discover how you can use what is done at big public cloud providers for your customers. We will also walk through use cases and see a demo you can use to help your customers.

    Tags: Artificial Intelligence (AI), Cloud, Nvidia, Software Defined Infrastruture (SDI), Technical Sales

    Published: 2024-05-22
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DVCLD212
  18. Start the Conversation - Lenovo Cloud Strategy
    2024-05-20 | 25 minutes | Employees and Partners
    Details
    Start the Conversation - Lenovo Cloud Strategy

    The purpose of this course is to help sellers use the Lenovo cloud strategy as a foundation to start the customer cloud conversation.

    Course Objectives:
    •Understand why customers choose the cloud
    •Describe the Lenovo Cloud Strategy
    •Be able to start the customer cloud conversation

    Tags: Cloud, Technology solutions

    Published: 2024-05-20
    Length: 25 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDS103r3
  19. VTT Cloud and Edge Architecture: Principal Consultant Overview
    2024-04-10 | 50 minutes | Employees Only
    Details
    VTT Cloud and Edge Architecture: Principal Consultant Overview

    Join Ruth Miller, Lenovo Principal Consultant, SSG Services for a data-led discussions to examine in detail customer IT environments, highlighting pain points, performance issues, edge and hybrid cloud strategy and carbon reduction capability.
    Examples of workshop deliverables and outcomes will be discussed to illustrate the value of early engagement and discovery.

    Tags: Cloud, Services, Sustainability, Technology solutions, TruScale Infrastructure as a Service

    Published: 2024-04-10
    Length: 50 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DVCLD211
  20. VTT Data Management How to sell storage - April 2024
    2024-04-10 | 60 minutes | Employees and Partners
    Details
    VTT Data Management How to sell storage - April 2024

    In this course, you will know:

    - Why do we sell storage?
    - What are the basics you need to get an opportunity rolling?
    - Why Lenovo for Storage?
    - What is happening in the market today?
    - How to determine traction?

    Tags: Data Management, Storage

    Published: 2024-04-10
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DVDAT209
  21. Technical Overview: ThinkAgile HCI and Cloud Platforms
    2024-03-07 | 35 minutes | Employees and Partners
    Details
    Technical Overview: ThinkAgile HCI and Cloud Platforms

    This course is designed to give Lenovo sales and partner representatives a technical overview of Lenovo’s ThinkAgile hyperconverged infrastructure and cloud platforms. Turnkey cloud platforms along with their architectural makeup, and container and data protection solutions are also covered.

    Learning Objectives:

    •Describe Lenovo’s ThinkAgile hyperconverged infrastructure and cloud platforms
    •Explain do-it-yourself and turnkey cloud platforms along with their architectural makeup
    •Describe container and data protection solutions

    Tags: Architecture, Engineering & Construction, Cloud, Technical Sales, ThinkAgile

    Published: 2024-03-07
    Length: 35 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDT2001r3
  22. Lenovo HX Business Conversations
    2024-03-06 | 20 minutes | Employees and Partners
    Details
    Lenovo HX Business Conversations

    This course covers business conversations for Lenovo HX Hyperconverged solutions.
    Course objectives:
    •Identify a potential Lenovo HX opportunity
    •Conduct effective discovery to reveal the customer’s data center needs
    •Probe the customer
    •Ensure the customer knows you understand their issue(s)

    Tags: DataCenter Products, Nutanix, Storage

    Published: 2024-03-06
    Length: 20 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCGHXB001
  23. Family Introduction: Converged and Hyperconverged
    2024-01-25 | 15 minutes | Employees and Partners
    Details
    Family Introduction: Converged and Hyperconverged

    This course is designed to give Lenovo sales a foundation on the characteristics of the Converged and Hyperconverged family. As an introduction to each family, this course also includes positioning, when to use a family and product, and keywords a client may use when discussing a converged or hyperconverged product.
    Objectives:
    •Family characteristics
    •Priority positioning
    •Product usage
    •Key words and phrases

    Tags: Sales, Storage

    Published: 2024-01-25
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: SXSW1101r2
  24. VEEAM Solutions Sales Training
    2023-09-27 | 20 minutes | Employees and Partners
    Details
    VEEAM Solutions Sales Training

    In this course you will learn about Hyper-availability for the Always-On Enterprise.

    By the end of this training, you should be able to:

    Identify and explain the core products and solutions offered by Veeam.
    Explain the key benefits and value propositions of integrating Veeam solutions with Lenovo products.

    Tags: Sales

    Published: 2023-09-27
    Length: 20 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DSTOO100
  25. A Seller's Guide to Nutanix OEM 2.0
    2023-08-24 | 90 minutes | Employees Only
    Details
    A Seller's Guide to Nutanix OEM 2.0

    In this Sales Team webinar, Mike Tilt, Ritu Jain and Brandon Saxton will cover the new Nutanix 2.0 pricing and packaging options to guide sellers on what the different types of offers, sales process and how to sell Nutanix 2.0. You will get an overview of OEM 2.0, Sales Process, PNP Pricing and Zone Information, and additional resources on Upgrade & Renewal SKUs and process.

    Course Objectives
    •Defining Nutanix 2.0 Pricing and Packaging
    •Describing OEM 2.0 Sales Process
    •Identifying resources and support

    Tags: Nutanix, OEM, Sales

    Published: 2023-08-24
    Length: 90 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DSXNS101
  26. Empowering Technical Sellers: Excelling In Transactional Workloads
    2023-08-18 | 60 minutes | Employees and Partners
    Details
    Empowering Technical Sellers: Excelling In Transactional Workloads

    This training abstract outlines a comprehensive program designed to equip technical sellers with the knowledge and expertise required to effectively promote and sell Lenovo and Nutanix solutions for transactional workloads. By focusing on the unique capabilities and advantages of Lenovo and Nutanix infrastructure in handling high-performance transactional applications, this training program empowers technical sellers to engage with customers, understand their specific workload requirements, and articulate the value proposition of Lenovo and Nutanix offerings in this domain.
    The training program encompasses the following key areas:
    1. Transactional Workloads Overview:
    2. Lenovo and Nutanix Solutions for Transactional Workloads:
    3. Product Portfolio Deep Dive:
    4. Addressing Customer Requirements:
    5. Solution Positioning and Sales Techniques:
    6. Competitor Analysis:
    Through this training, technical sellers will acquire the expertise necessary to engage with customers, understand their transactional workload requirements, and effectively position Lenovo and Nutanix solutions as the ideal choice for high-performance, mission-critical applications. By understanding the intricacies of Lenovo and Nutanix offerings in the transactional workload space, technical sellers will be empowered to drive successful sales engagements, build strong customer relationships, and contribute to the growth and success of their organization.

    Tags: Cloud, Nutanix, ThinkAgile

    Published: 2023-08-18
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DHXD201
  27. Empowering Technical Sellers: Accelerating Lenovo and Nutanix Cloud Native-Container Application Solutions
    2023-08-18 | 60 minutes | Employees and Partners
    Details
    Empowering Technical Sellers: Accelerating Lenovo and Nutanix Cloud Native-Container Application Solutions

    This training abstract outlines a comprehensive program specifically designed to equip technical sellers with the knowledge and expertise needed to effectively promote and sell Lenovo and Nutanix cloud native/container application solutions. By focusing on the integration of Lenovo and Nutanix technologies with modern application development practices, this training enables tech sellers to engage with customers, understand their requirements, and articulate the unique value proposition of Lenovo and Nutanix offerings in the cloud native and containerization landscape.
    The training encompasses the following key areas:
    1. Cloud Native and Containerization Fundamentals:
    2. Lenovo and Nutanix Solutions Overview:
    3. Product Portfolio Deep Dive:
    4. Addressing Customer Needs:
    5. Solution Positioning and Sales Techniques:
    6. Competitor Analysis:
    7. Technical Demonstration and Proof-of-Concept:
    Throughout the training, tech sellers will gain the expertise necessary to engage with customers, understand their unique requirements, and effectively position Lenovo and Nutanix solutions as the go-to choice for cloud native and containerized application needs. By learning the intricacies of Lenovo and Nutanix offerings, technical sellers will be equipped to drive successful sales engagements, strengthen customer relationships, and contribute to the overall growth and success of the organization.

    Tags: Business solutions, Cloud, Nutanix, ThinkAgile

    Published: 2023-08-18
    Length: 60 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DHXC201
  28. ThinkAgile Accelerating Cloud Agility: HX Series Technical Presentation
    2023-07-28 | 40 minutes | Employees and Partners
    Details
    ThinkAgile Accelerating Cloud Agility: HX Series Technical Presentation

    Amalu Santhosh, Lenovo Technical Product Manager, reviews the ThinkAgile HX product portfolio. She will walk you through a technical deep dive into HX workloads and discuss technical details and performance of the latest ThinkAgile HX solutions.

    Tags: ThinkAgile

    Published: 2023-07-28
    Length: 40 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DHXT201
  29. Cloud and HCI or Somewhere in Between
    2023-07-11 | 40 minutes | Employees and Partners
    Details
    Cloud and HCI or Somewhere in Between

    Provides a brief overview of Lenovo Portfolio for HCI and Cloud including ThinkAgile HX, VX, MX Certified Nodes and Appliances, Azure, and Engineered Cloud Solutions. Review Scenarios and complete questions "choose your own adventure" to identify and qualify an opportunity as HCI or Cloud and which portfolio solution would be the best option.

    Course objectives:
    •Where in the Sales Cycle we are
    •What is Cloud
    •What is Hyperconverged Infrastructure (HCI)
    •Review Lenovo Offerings in Cloud and HCI
    •Scenarios

    Tags: Cloud

    Published: 2023-07-11
    Length: 40 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DCLDS104r2
  30. What's New with Nutanix 2.0? Portfolio and Licensing
    2023-06-08 | 15 minutes | Employees and Partners
    Details
    What's New with Nutanix 2.0? Portfolio and Licensing

    Nutanix has updated and simplified their licensing for our joint customers. This course is created to give sales and partners representatives an overview for the recent Nutanix licensing changes and their current options.

    Course Objectives:

    After completing this course, you should be able to:

    • Describe the new Nutanix licensing rollout
    • List the new pricing and packaging options

    Tags: Cloud, Nutanix, Software Defined Infrastruture (SDI), ThinkAgile

    Published: 2023-06-08
    Length: 15 minutes

    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo 360 Learning Center

    Course code: DHXL001
  31. Data Infrastructure Management - DM Series Storage
    2022-10-28 | 25 minutes | Employees Only
    Details
    Data Infrastructure Management - DM Series Storage

    This course provides a technical overview of the ThinkSystem DM series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.

    By the end of this course, you should be able to:
    •Recognize the components of the Lenovo Data Management portfolio
    •Discuss the features of the Lenovo Data Management components
    •Describe the features of the SnapCenter software components

    Tags: Sales, Storage, Technical Sales, ThinkSystem

    Published: 2022-10-28
    Length: 25 minutes

    Start the training:
    Employee link: Grow@Lenovo

    Course code: DDM200

1-10 of 31 courses.

Related product families

Product families related to this document are the following:

Trademarks

Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.

The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
Neptune®
ThinkAgile®
ThinkSystem®
XClarity®

The following terms are trademarks of other companies:

Intel® and Xeon® are trademarks of Intel Corporation or its subsidiaries.

Microsoft® and Hyper-V® are trademarks of Microsoft Corporation in the United States, other countries, or both.

Other company, product, or service names may be trademarks or service marks of others.
