Lenovo ThinkSystem SR680a V3 with B200

The Lenovo ThinkSystem SR680a V3 with B200 is a powerful 8U server that features two 5th Gen Intel Xeon Scalable processors and eight high-performance NVIDIA B200 GPUs. This air-cooled server is the ultimate Generative AI server, with advanced GPU-to-GPU communications and high-speed PCIe 5.0 connectivity between the GPUs, CPUs, and networking. It was designed fully in-house by Lenovo from ground up to provide best-in-class modularity, thermal performance and reliability.

Suggested uses: AI workloads including modeling, training, simulation, rendering, financial tech, and scientific research

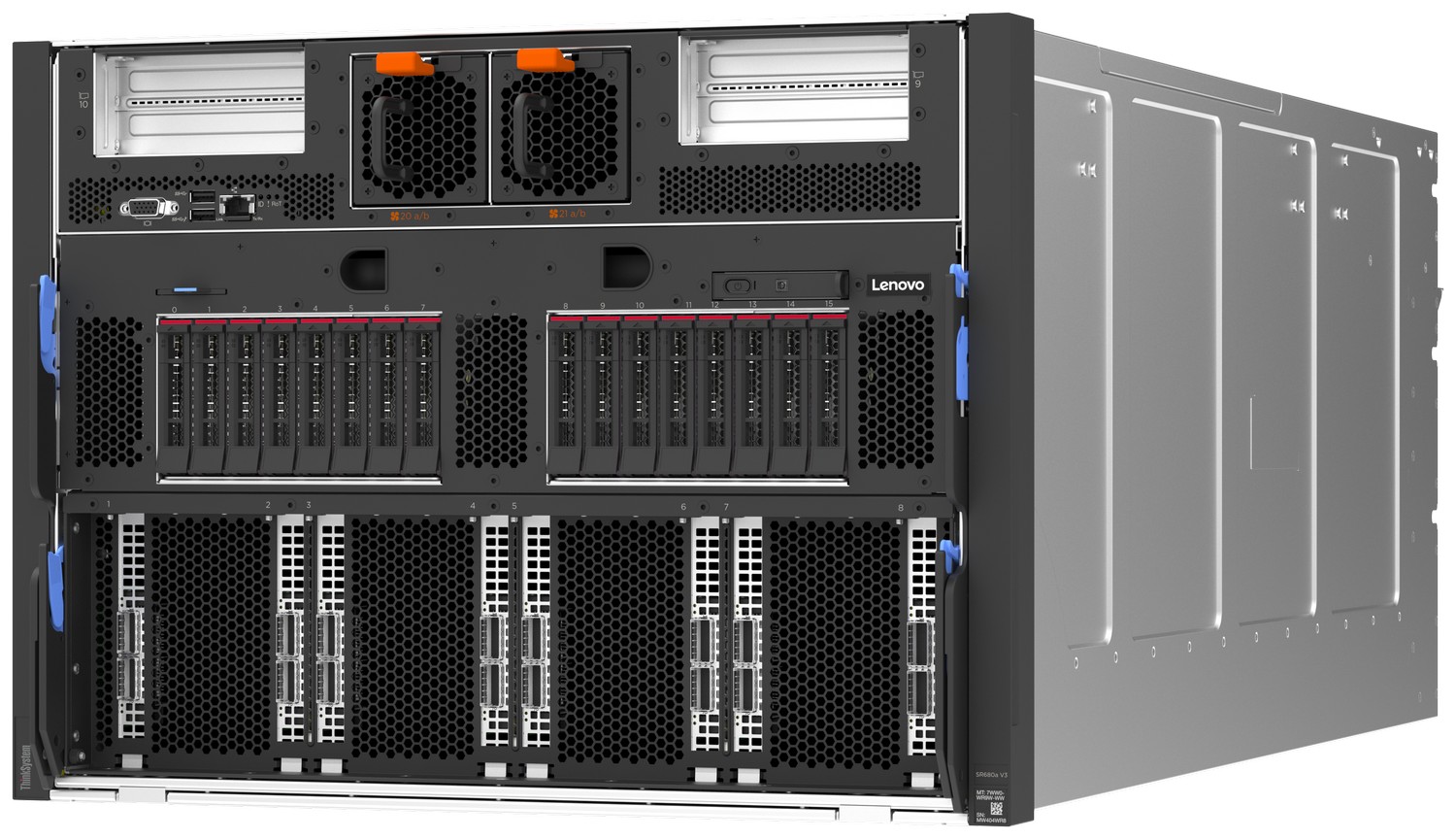

Figure 1. Lenovo ThinkSystem SR680a V3 with B200

Lenovo makes “AI for All” possible. We deliver AI to data deployed inside your data center and at the edge. We have the industry’s most comprehensive AI portfolio with over 80 products designed for AI workloads. Lenovo partners with over 50 AI Innovator partners globally to deliver turnkey Hybrid Cloud and Edge AI solutions.

Unique in the industry, Lenovo can deliver AI “from pocket to cloud” with servers, workstations, and AI-enabled devices. Whether you are a public cloud provider or building your AI model on-prem, Lenovo provides systems and solutions that scale to meet your needs. We bring AI to your data where and when you need it the most, in a truly hybrid approach: public, private, or personal.

The SR680a V3 with B200 is designed for use in air-cooled data centers that require maximum GPU performance for AI workloads. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.

Performance

The following features boost performance, improve scalability and reduce costs:

• Two fifth-generation Intel Xeon Scalable processors
  • Up to 64 cores and 128 threads
  • Core speed of up to 2.3 GHz
  • TDP rating of up to 350 W
• Eight high-performance onboard NVIDIA GPUs with high-speed interconnects
  • Eight NVIDIA B200 1000W GPUs with 180GB HBM3 GPU memory per GPU
• Support for DDR5 system memory DIMMs to maximize the performance of the memory subsystem:
  • Up to 32 DDR5 memory DIMMs, 16 DIMMs per processor
  • 8 memory channels per processor (2 DIMMs per channel)
  • DIMMs operate at 5600 MHz with 1 DIMM per channel, or 4400 MHz with 2 DIMMs per channel
  • Using 32x 64GB RDIMMs, the server supports 2TB of system memory
• Ten PCIe 5.0 x16 slots, all front accessible:
  • Lower slots: 8x PCIe 5.0 x16 FHHL slots with GPU Direct support
  • Upper slots 2x PCIe 5.0 x16 FHHL slots
• Supports eight NDR 400Gb/s InfiniBand adapters with high-speed GPU Direct connections, installed in front-accessible PCIe 5.0 x16 slots.
• Supports two NVIDIA BlueField-3 DPU adapters to enable software-defined, hardware-accelerated IT infrastructures
• Supports up to 16x PCIe 5.0 NVMe drives for high-speed internal storage. The use of NVMe drives maximizes drive I/O performance, in terms of throughput, bandwidth, and latency.
• Supports two M.2 NVMe drives with RAID support using Intel VROC for convenient operating system boot functions.

Availability and serviceability

The server provides many features to simplify serviceability and increase system uptime:

• Designed to run 24 hours a day, 7 days a week
• The server uses ECC memory and supports memory RAS features including Single Device Data Correction (SDDC, also known as Chipkill), Patrol/Demand Scrubbing, Bounded Fault, DRAM Address Command Parity with Replay, DRAM Uncorrected ECC Error Retry, On-die ECC, ECC Error Check and Scrub (ECS), and Post Package Repair.
• The server offers hot-swap drives for greater system uptime.
• Two NVMe M.2 drives with RAID support with Intel VROC which enables the two M.2 drives to be configured as a redundant pair.
• The server has up to eight hot-swap redundant power supplies with N+N redundancy
• The server has 19x hot-swap redundant fans to cool all components:
  • 15x rear-mounted fans for the GPU subsystem, drive bays, and lower PCIe slots
  • 2x front-mounted fans for the CPU, memory and upper PCIe slots
  • 2x auxiliary fans adjacent to the power supplies
• Proactive Platform Alerts (including PFA and SMART alerts): Processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 storage, flash storage adapters), fans, power supplies, server ambient and subcomponent temperatures. Alerts can be surfaced through the XClarity Controller to managers such as Lenovo XClarity Administrator, VMware vCenter, and Microsoft System Center. These proactive alerts let you take appropriate actions in advance of possible failure, thereby increasing server uptime and application availability.
• The built-in XClarity Controller 2 continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failures to minimize downtime.
• Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
• Lenovo XClarity Provisioning Manager supports diagnostics and can save service data to a USB key drive or remote CIFS share folder for troubleshooting and reduce service time.
• Auto restart in the event of a momentary loss of AC power (based on power policy setting in the XClarity Controller service processor)
• An integrated diagnostics panel with LCD display provides more detailed diagnostics by displaying all error messages and VPD data needed for a service call, thereby aiding with problem resolution and system uptime.
• Support for the XClarity Administrator Mobile app running on a supported smartphone and connected to the server through the service-enabled USB port, enables additional local systems management functions.
• Three-year or one-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available.

Manageability and security

Systems management features simplify local and remote management:

• The server includes an XClarity Controller 2 (XCC2) to monitor server availability. Optional upgrade to XCC Platinum to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files, FIPS 140-3 security, enhanced NIST 800-193 support, boot capture, and other management and security features.
• Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
• UEFI-based Lenovo XClarity Provisioning Manager, accessible from F1 during boot, provides system inventory information, graphical UEFI Setup, platform update function, operating system installation function, and diagnostic functions.
• Support for Lenovo XClarity Energy Manager which captures real-time power and temperature data from the server and provides automated controls to lower energy costs.
• An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
• Dedicated RJ45 port at the rear of the server for remote management using standard management protocols
• Support for industry standard management protocols, IPMI 2.0, SNMP 3.0, Redfish REST API, serial console via IPMI
• An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
• Administrator and power-on passwords help protect from unauthorized access to the server.
• Intel Execute Disable Bit functionality can prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.
• Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.
• Supports Secure Boot to ensure only a digitally signed operating system can be used.
• Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.

For details on front-accessible integrated diagnostics panel, see the Local management section.

The following table lists the standard specifications.

ThinkSystem SR680a V3 with B200 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Topics in this section:

• CTO models
• Base feature codes

CTO models

ThinkSystem SR680a V3 with B200 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Configure-to-order (CTO) models are used to create models with factory-integrated server customizations. For CTO models, two types of base CTO models are available for the SR680a V3 B200 as listed in the columns in the following table:

• General purpose base CTO models are for general business (non-HPC) and is selectable by choosing General Purpose mode in DCSC.
• AI and HPC base models are intended for Artificial Intelligence (AI) and High Performance Computing (HPC) configurations and solutions are enabled using the AI & HPC Hardware - ThinkSystem Hardware mode in DCSC. These configurations, along with Lenovo EveryScale Solutions, can also be built using System x and Cluster Solutions Configurator (x-config). Tip: Some HPC and AI models are not listed in DCSC and can only be configured in x-config.

Preconfigured server models may also be available for the SR680a V3 B200, however these are region-specific; that is, each region may define their own server models, and not all server models are available in every region.

The following table lists the base CTO models of the ThinkSystem SR680a V3 with B200 server.

Base feature codes

Models of the SR680a V3 with B200 have the base feature code listed in the following table.

The SR680a V3 with B200 supports fifth-generation Intel Xeon Scalable processors. The server supports two processors. Configurations of one processor are not supported.

Topics in this section:

• Processor options
• Processor features
• UEFI operating modes

The SR680a V3 B200 uses Lenovo TruDDR5 memory.

Lenovo TruDDR5 memory uses the highest quality components that are sourced from Tier 1 DRAM suppliers and only memory that meets the strict requirements of Lenovo is selected. It is compatibility tested and tuned to maximize performance and reliability. From a service and support standpoint, Lenovo TruDDR5 memory automatically assumes the system warranty, and Lenovo provides service and support worldwide.

The following table lists the 5600 MHz memory options that are currently supported by the SR680a V3 B200.

For more information on DDR5 memory, see the Lenovo Press paper, Introduction to DDR5 Memory, available from https://lenovopress.com/lp1618.

The following rules apply when selecting the memory configuration:

For best performance, consider the following:

See the Lenovo Press article, RAS Features of the Lenovo ThinkSystem Intel Servers for more information about memory RAS features.

If memory channel mirroring is used, then DIMMs must be installed in pairs (minimum of one pair per processor), and both DIMMs in the pair must be identical in type and size. 50% of the installed capacity is available to the operating system.

Memory rank sparing is implemented using ADDDC/ADC-SR/ADDDC-MR to provide DRAM-level sparing feature support.

A key feature of the SR680a V3 with B200 is the integration of an 8-GPU complex in the lower half of the server as shown in the Components and connectors section.

The GPUs supported are listed in the following table.

The following table lists the GPU specifications.

The SR680a V3 with B200 has 16x 2.5-inch hot-swap drive bays using two 8-bay drive backplanes, installed at the front of the server. The server supports NVMe drives, each with a PCIe 5.0 x4 host interface.

The server also supports one or two M.2 drives, installed in dedicated slots on the system board of the server.

In this section:

• Drive backplanes
• M.2 drives

Configuration rules:

• Two backplanes are required; Configurations of 0 or 1 backplane are not supported
• No field upgrades are offered

M.2 drives

The SR680a V3 with B200 supports one or two M.2 22110 form-factor NVMe drives for use as an operating system boot solution or as additional storage. The two M.2 drives installed into a connector located on the system board. The two drives are installed one above the other.

Configuration rules:

• The M.2 drives must be 22110 form factor; other M.2 form factors are not supported
• Only NMVe drives are supported; SATA drives are not supported
• RAID is optional and implemented using Intel VROC; ordering information is listed in the following table.

Supported drives are listed in the Internal drive options section.

The following tables list the drive options for internal storage of the server.

The server supports the external USB optical drive listed in the following table.

The drive is based on the Lenovo Slim DVD Burner DB65 drive and supports the following formats: DVD-RAM, DVD-RW, DVD+RW, DVD+R, DVD-R, DVD-ROM, DVD-R DL, CD-RW, CD-R, CD-ROM.

The SR680a V3 with B200 supports a total of up to 10x PCIe slots, all located at the front of the server.

The lower 8x slots are designed for high-speed GPU Direct networking to maximize performance of the GPUs. These slots connect to the processors and to the GPUs via a PCIe switch. All front slots are standard.

• Slot 1: PCIe 5.0 x16 FHHL, connected to CPU 1
• Slot 2: PCIe 5.0 x16 FHHL, connected to CPU 1
• Slot 3: PCIe 5.0 x16 FHHL, connected to CPU 1
• Slot 4: PCIe 5.0 x16 FHHL, connected to CPU 1
• Slot 5: PCIe 5.0 x16 FHHL, connected to CPU 2
• Slot 6: PCIe 5.0 x16 FHHL, connected to CPU 2
• Slot 7: PCIe 5.0 x16 FHHL, connected to CPU 2
• Slot 8: PCIe 5.0 x16 FHHL, connected to CPU 2

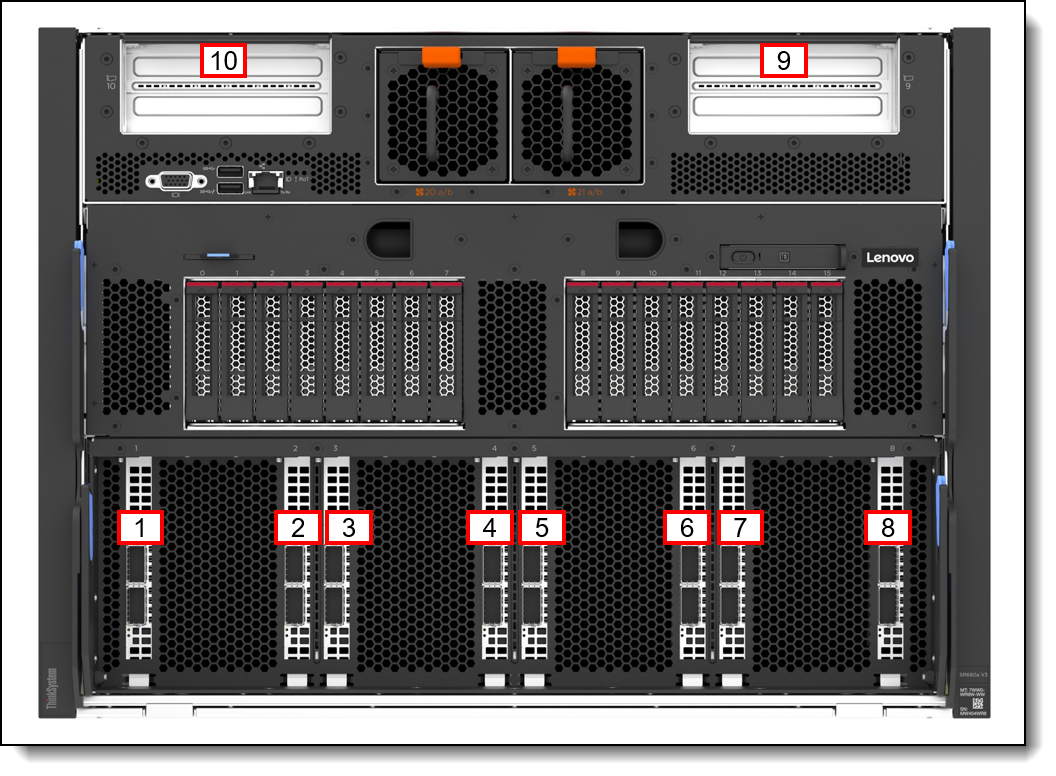

All 10 slots are shown in the following figure.

Figure 5. Slots of the SR680a V3 with B200

Ordering information for the upper slots is listed in the following table.

Configuration rules:

• Two upper slots must be selected, 2x PCIe (slots 9 & 10)

The SR680a V3 with B200 supports the network adapters listed in the following table.

Configuration rules:

• For the adapters in the lower PCIe slots, any quantity up to 8 is supported, however all adapters must be identical; mixing not supported

Fibre Channel adapters may be supported under Special Bid conditions. Contact your Lenovo sales representative for details.

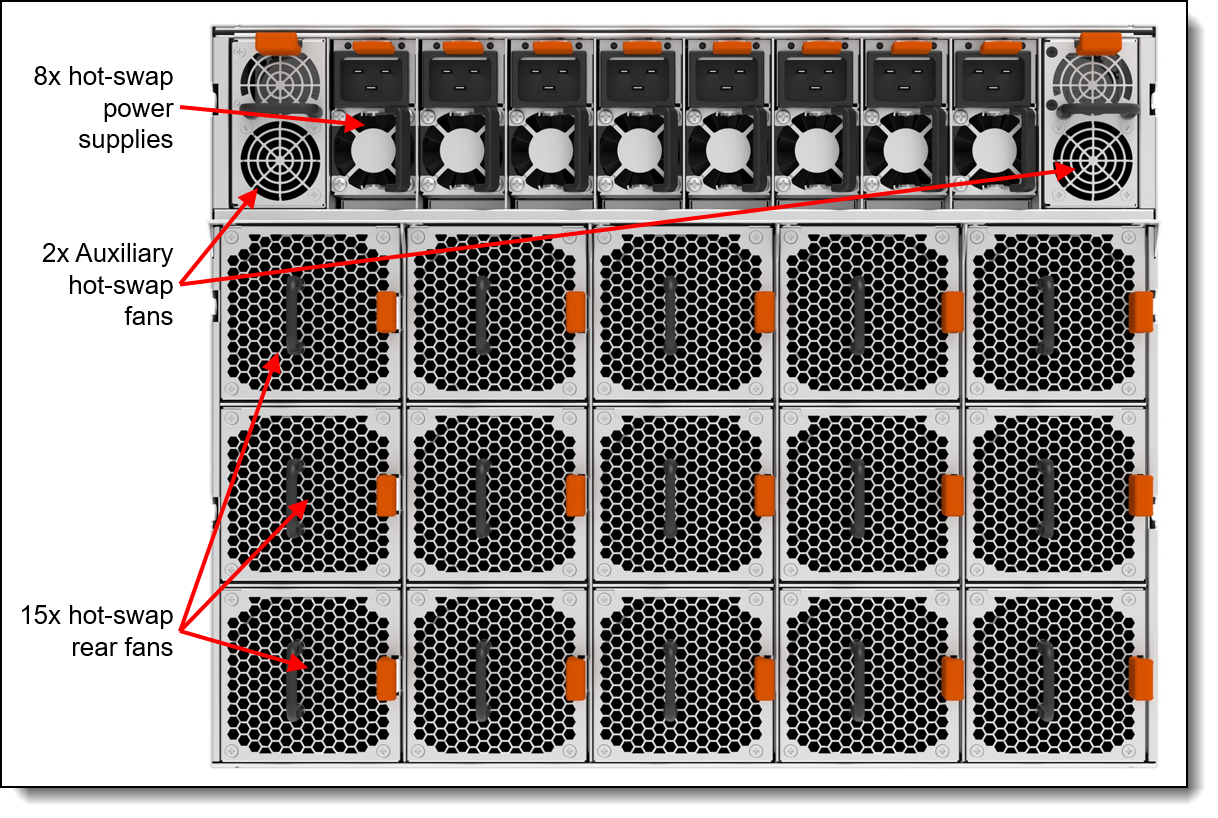

The SR680a V3 with B200 server has 19 system fans installed as standard. Airflow is front to back.

• 2x front hot-swap 80mm dual-rotor fans to cool the CPU shuttle (CPUs, memory, rear slots)
  • Fans are N+1 rotor redundant
  • Fans operate at a peak of 16.3K RPM
• 15x rear hot-swap 80mm dual-rotor fans to cool the GPUs, drive bays, and PCIe switches
  • Fans are N+1 rotor redundant
  • Fans operate at a peak of 19.5K RPM
• 2x auxiliary 40mm fans adjacent to the power supplies

Each of the eight power supplies also has an integrated dual-rotor fan.

The SR680a V3 with B200 supports eight redundant hot-swap power supplies. All are standard. The power supplies are N+N redundant.

Ordering information is listed in the following table.

The SR680a V3 with B200 contains an integrated service processor, XClarity Controller 2 (XCC), which provides advanced control, monitoring, and alerting functions. The XCC2 is based on the AST2600 baseboard management controller (BMC) using a dual-core ARM Cortex A7 32-bit RISC service processor running at 1.2 GHz.

Topics in this section:

• System I/O Board (DC-SCM)
• Local management
• System status with XClarity Mobile
• Remote management
• XCC2 Platinum
• Lenovo XClarity Provisioning Manager
• Lenovo XClarity Administrator
• Lenovo XClarity Integrators
• Lenovo XClarity Essentials
• Lenovo XClarity Energy Manager
• Lenovo Capacity Planner

Note: The NMI (non-maskable interrupt) button is no longer present on the board. Lenovo recommends using the NMI function that is part of the XCC user interfaces instead.

Figure 6. System I/O Board

The board also has the following components:

• XClarity Controller 2, implemented using the ASPEED AST2600 baseboard management controller (BMC).
• Root of Trust (RoT) module - implements Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the server to be NIST SP800-193 compliant. For more details about PFR, see the Security section.
• MicroSD card port to enable the use of a MicroSD card for additional storage for use with the XCC2 controller. XCC2 can use the storage as a Remote Disc on Card (RDOC) device (up to 4GB of storage). It can also be used to store firmware updates (including N-1 firmware history) for ease of deployment.

  Tip: Without a MicroSD card installed, the XCC controller will have 100MB of available RDOC storage.

Ordering information for the supported Micro SD cards are listed in the MicroSD for XCC local storage section.

Figure 7. Front operator panel with pull-out diagnostics panel

The integrated diagnostics panel allows quick access to system status, firmware, network, and health information. The LCD display on the panel and the function buttons give you access to the following information:

• Status Dashboard
• Active alerts
• System VPD: machine type & mode, serial number, UUID string
• System firmware levels: UEFI and XCC firmware
• XCC network information: hostname, MAC address, IP address, DNS addresses
• Environmental data: Ambient temperature, CPU temperature, AC input voltage, estimated power consumption
• Active XCC sessions
• System reset action

Light path diagnostics

The server offers light path diagnostics. If an environmental condition exceeds a threshold or if a system component fails, XCC lights LEDs inside the server to help you diagnose the problem and find the failing part. The server has fault LEDs next to the following components:

• Each memory DIMM
• Each drive bay
• Each power supply

Information pull-out tab

The front of the server also houses an information pull-out tab (also known as the network access tag). A label on the tab shows the network information (MAC address and other data) to remotely access the service processor.

The steps to connect the mobile device are as follows:

1. Enable USB Management on the server, by holding down the ID button for 3 seconds (or pressing the dedicated USB management button if one is present)
2. Connect the mobile device via a USB cable to the server's USB port with the management symbol
3. In iOS or Android settings, enable Personal Hotspot or USB Tethering
4. Launch the Lenovo XClarity Mobile app

Remote server management is provided through industry-standard interfaces:

• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP) Version 3 (no SET commands; no SNMP v1)
• Common Information Model (CIM-XML)
• Representational State Transfer (REST) support
• Redfish support (DMTF compliant)
• Web browser - HTML 5-based browser interface (Java and ActiveX not required) using a responsive design (content optimized for device being used - laptop, tablet, phone) with NLS support

XCC2 Platinum adds the following Enterprise and Advanced functions:

• Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel, regardless of the system state
• Remotely accessing the server using the keyboard and mouse from a remote client
• International keyboard mapping support
• Syslog alerting
• Redirecting serial console via SSH
• Component replacement log (Maintenance History log)
• Access restriction (IP address blocking)
• Lenovo SED security key management
• Displaying graphics for real-time and historical power usage data and temperature
• Boot video capture and crash video capture
• Virtual console collaboration - Ability for up to 6 remote users to be log into the remote session simultaneously
• Remote console Java client
• Mapping the ISO and image files located on the local client as virtual drives for use by the server
• Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
• Power capping
• System utilization data and graphic view
• Single sign on with Lenovo XClarity Administrator
• Update firmware from a repository
• License for XClarity Energy Manager

With XCC2 Platinum, for CTO orders, you can request that System Guard be enabled in the factory and the first configuration snapshot be recorded. To add this to an order, select feature code listed in the following table. The selection is made in the Security tab of the DCSC configurator.

For more information about System Guard, see https://pubs.lenovo.com/xcc2/NN1ia_c_systemguard

Because Lenovo XClarity Administrator does not require any agent software to be installed on the managed endpoints, there are no CPU cycles spent on agent execution, and no memory is used, which means that up to 1GB of RAM and 1 - 2% CPU usage is saved, compared to a typical managed system where an agent is required.

Lenovo XClarity Administrator is an optional software component for the SR680a V3 B200. The software can be downloaded and used at no charge to discover and monitor the SR680a V3 B200 and to manage firmware upgrades.

If software support is required for Lenovo XClarity Administrator, or premium features such as configuration management and operating system deployment are required, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the Lenovo XClarity software license options.

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

For more information about all the available Lenovo XClarity Integrators, see the Lenovo XClarity Administrator Product Guide: https://lenovopress.com/tips1200-lenovo-xclarity-administrator

LXEM is a licensed product. A single-node LXEM license is included with the XClarity Controller Platinum upgrade as described in the XCC2 Platinum section. If your server does not have the XCC Platinum upgrade, Energy Manager licenses can be ordered as shown in the following table.

Topics in this section:

• Security features
• Platform Firmware Resiliency - Lenovo ThinkShield

Security features

The SR680a V3 with B200 server offers the following electronic security features:

• Secure Boot function of the Intel processor
• Support for Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) - see the Platform Firmware Resiliency section
• Firmware signature processes compliant with FIPS and NIST requirements
• System Guard (part of XCC Platinum) - Proactive monitoring of hardware inventory for unexpected component changes
• Administrator and power-on password
• Integrated Trusted Platform Module (TPM) supporting TPM 2.0
• Self-encrypting drives (SEDs) with support for enterprise key managers

The server is NIST SP 800-147B compliant.

Platform Firmware Resiliency - Lenovo ThinkShield

Lenovo's ThinkShield Security is a transparent and comprehensive approach to security that extends to all dimensions of our data center products: from development, to supply chain, and through the entire product lifecycle.

The ThinkSystem SR680a V3 with B200 includes Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the system to be NIST SP800-193 compliant. This offering further enhances key platform subsystem protections against unauthorized firmware updates and corruption, to restore firmware to an integral state, and to closely monitor firmware for possible compromise from cyber-attacks.

PFR operates upon the following server components:

• UEFI image – the low-level server firmware that connects the operating system to the server hardware
• XCC image – the management “engine” software that controls and reports on the server status separate from the server operating system
• FPGA image – the code that runs the server’s lowest level hardware controller on the motherboard

The Lenovo Platform Root of Trust Hardware performs the following three main functions:

• Detection – Measures the firmware and updates for authenticity
• Recovery – Recovers a corrupted image to a known-safe image
• Protection – Monitors the system to ensure the known-good firmware is not maliciously written

These enhanced protection capabilities are implemented using a dedicated, discrete security processor whose implementation has been rigorously validated by leading third-party security firms. Security evaluation results and design details are available for customer review – providing unprecedented transparency and assurance.

The SR680a V3 B200 includes support for Secure Boot, a UEFI firmware security feature developed by the UEFI Consortium that ensures only immutable and signed software are loaded during the boot time. The use of Secure Boot helps prevent malicious code from being loaded and helps prevent attacks, such as the installation of rootkits. Lenovo offers the capability to enable secure boot in the factory, to ensure end-to-end protection. Alternatively, Secure Boot can be left disabled in the factory, allowing the customer to enable it themselves at a later point, if desired.

The following table lists the relevant feature code(s).

The SR680a V3 with B200 installs in a standard 19-inch rack cabinet. It is supported installed on a static L-shaped rail kit as listed in the following table.

The figure below shows the components of the rail kit.

Figure 8. ThinkSystem Toolless Fixed Rail Kit

Configuration rules:

• A maximum of 5x SR680a V3 with B200 servers can be installed in a single rack cabinet (42U or 48U)
• The rail kit is included in CTO orders by default, but can be removed if desired
• A cable management arm (CMA) is not supported

The following table summarizes the rail kit features and specifications.

Considering the weight of the trays in the server, an onsite material lift is required to allow service by a single person. If you do not already have a material lift available, Lenovo offers the Genie Lift GL-8 material lift as configurable option to the rack cabinets. Ordering information is listed in the following table.

Note: If neither the Genie Lift GL-8 nor the ServerLift SL-350x is available onsite when onsite service is required, the customer will be responsible for getting the system to a suitable work surface (with access to power) prior to service technician arrival and returning the system to the rack when service is complete prior to service technician departure.

The SR680a V3 with B200 supports the following operating systems:

• Red Hat Enterprise Linux 9.5
• Ubuntu 22.04 LTS 64-bit
• Ubuntu 24.04 LTS 64-bit

For a complete list of supported, certified and tested operating systems, plus additional details and links to relevant web sites, see the Operating System Interoperability Guide: https://lenovopress.lenovo.com/osig#servers=sr680a-v3-with-b200-7dm9

The SR680a V3 with B200 has the following overall physical dimensions, excluding components that extend outside the standard chassis, such as EIA flanges, front security bezel (if any), and power supply handles:

• Width: 447 mm (17.6 inches)
• Height: 351 mm (13.8 inches)
• Depth: 943 mm (37.1 inches)

The following table lists the detailed dimensions. See the figure below for the definition of each dimension.

Figure 9. Enclosure dimensions

The server has the following weight:

• Maximum: 116 kg (256 lbs)

Electrical specifications for AC input power supplies:

• Input voltage:
  • 200 to 240 (nominal) Vac, 50 Hz or 60 Hz
  • 180 to 300 Vdc (China only)
• Inlet current: See the following table.

The SR680a V3 with B200 server complies with ASHRAE Class A2 specifications with most configurations, and depending on the hardware configuration, also complies with ASHRAE Class A3 and Class A4 specifications. System performance may be impacted when operating temperature is outside ASHRAE A2 specification.

Depending on the hardware configuration, the SR680a V3 with B200 server also complies with ASHRAE Class H1 specification. System performance may be impacted when operating temperature is outside ASHRAE H1 specification.

Topics in this section:

• Temperature and humidity
• Particulate contamination

• Maximum altitude: 3,050 m (10,000 ft)
• Relative Humidity (non-condensing):
  • Operating
    • ASHRAE Class A2: 8% to 80%; maximum dew point: 21°C (70°F)
  • Shipment/storage: 8% to 90%

The following specifications indicate the limits of particulates that the system can tolerate:

• Reactive gases:
  • The copper reactivity level shall be less than 200 Angstroms per month (Å/month)
  • The silver reactivity level shall be less than 200 Å/month
• Airborne particulates:
  • The room air should be continuously filtered with MERV 8 filters.
  • Air entering a data center should be filtered with MERV 11 or preferably MERV 13 filters.
  • The deliquescent relative humidity of the particulate contamination should be more than 60% RH
  • Environment must be free of zinc whiskers

For additional information, see the Specifications section of the documentation for the server, available from the Lenovo Documents site, https://pubs.lenovo.com/

The SR680a V3 with B200 has a 3-year warranty based on the machine type of the system:

• 7DM9 - 3 year warranty
• Genie Lift GL-8 Material Lift (7D5Y) - 3-year warranty

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The SR680a V3 B200 conforms to the following standards:

• ANSI/UL 62368-1
• IEC 62368-1 (CB Certificate and CB Test Report)
• CSA C22.2 No. 62368-1
• Argentina IEC 60950-1
• Mexico NOM-019
• Germany GS
• TUV-GS (EN62368-1, and EK1-ITB2000)
• Brazil INMETRO
• South Africa NRCS LOA
• Ukraine UkrCEPRO
• Morocco CMIM Certification (CM)
• UL Green Guard, UL2819
• Japanese Energy-Saving Act
• EU2019/424 Energy Related Product (ErP Lot9)

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu
